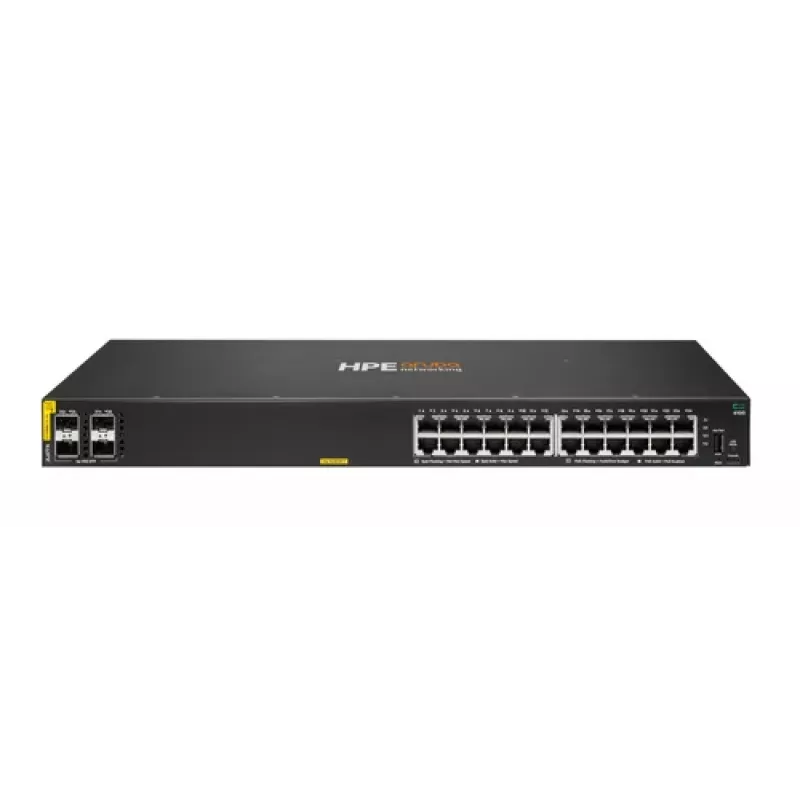

HPE Aruba 6100 24G CL4 4SFP+ switch

The HPE Aruba 6100 24G CL4 4SFP+ Switch is a high-performance, managed Ethernet switch designed for enterprise edge and small-to-medium business networks. It offers 24 Gigabit Ethernet ports with Class 4 PoE+ support and 4 SFP+ uplink ports for flexible connectivity.

Advantages

This switch delivers reliable, secure, and energy-efficient network access with advanced Layer 2 and Layer 3 features. Its PoE+ capability powers devices like IP cameras and wireless access points, while the compact 1U form factor saves rack space.

Suitable for

• Enterprise branch offices and campus networks
• Small and medium businesses requiring managed switching
• Deployments needing PoE+ for IoT devices

Key specifications

• 24 x 10/100/1000Base-T RJ-45 ports with Class 4 PoE+ (370W budget)
• 4 x 1/10GbE SFP+ uplink ports
• Switching capacity: 68 Gbps
• Forwarding rate: 50.5 Mpps
• MAC address table: 8192 entries
• Jumbo frame support up to 9198 bytes
• Dual Core ARM Cortex A9 processor @ 1016 MHz
• Memory: 4 GB eMMC, 1 GB DDR3
• Management: RJ-45 console, USB-C console, out-of-band Ethernet
• Internal power supply, 100-240 VAC input
• Operating temperature: 0°C to 45°C
• Aruba AOS-CX operating system

Recommendations

Ideal for organizations seeking a cost-effective, managed switch with PoE+ and high-speed uplinks. The Aruba 6100 series provides robust security and ease of management.
