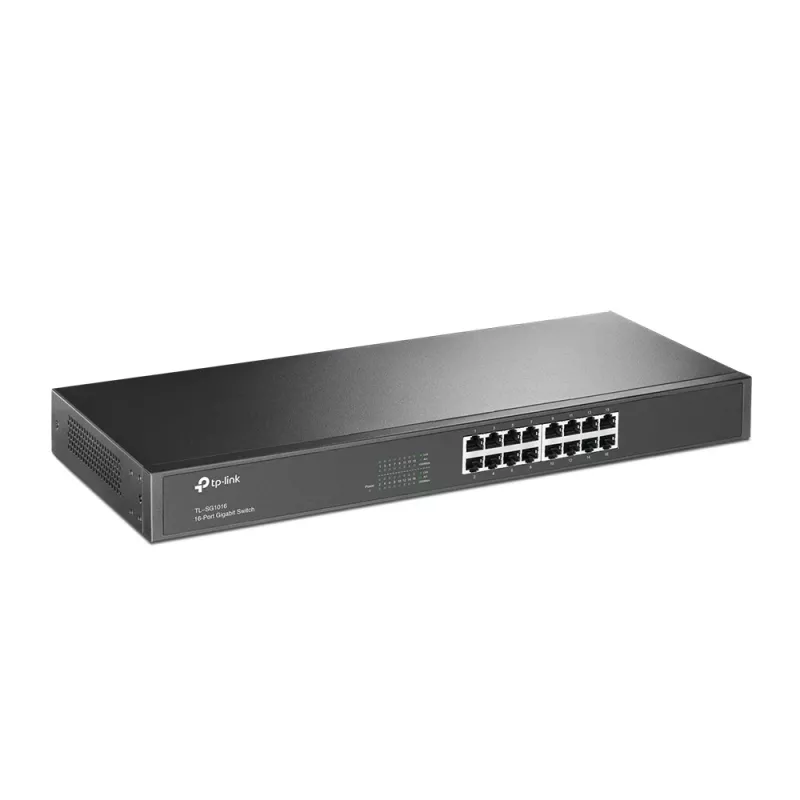

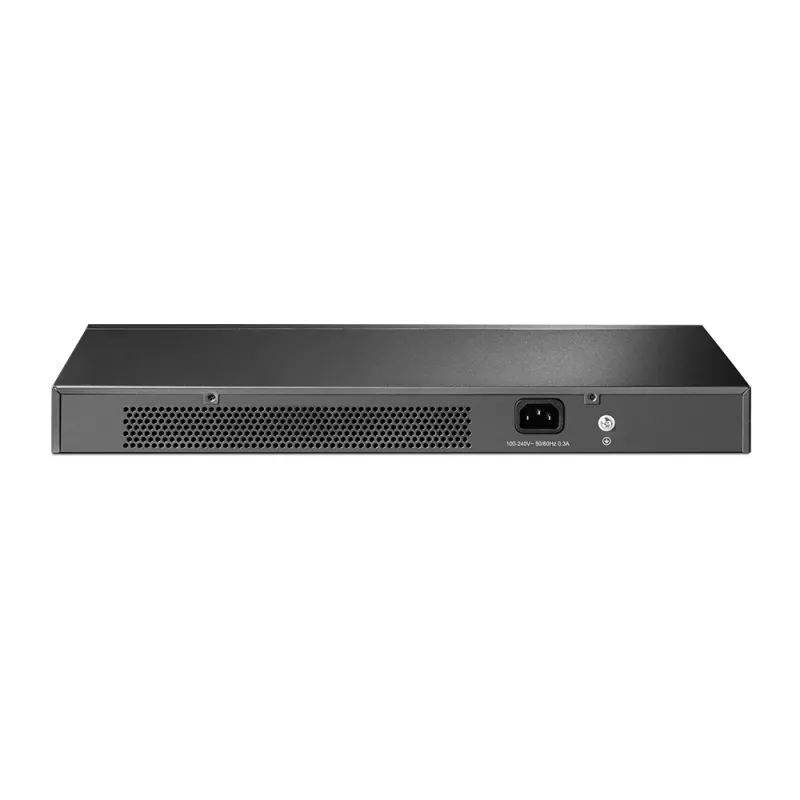

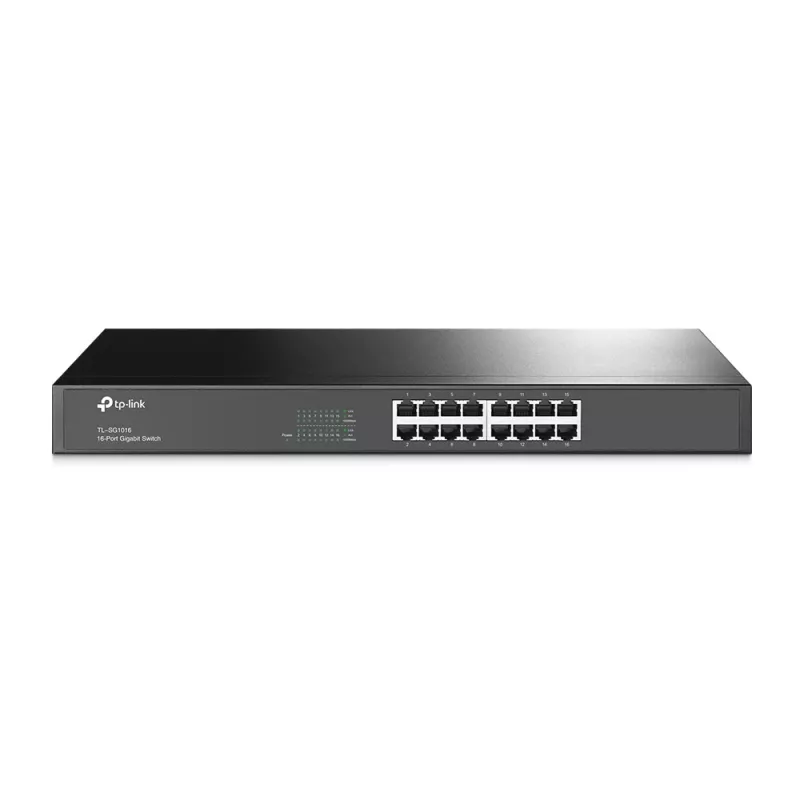

Unmanaged switch TP-Link TL-SG1016 16-portový Gigabit Ethernet

The TP-Link TL-SG1016 Unmanaged Switch is a 16-port Gigabit Ethernet switch designed to upgrade networks to 1000 Mbps throughput with minimal effort. This rack-mountable 1U device features sixteen 10/100/1000 Mbps RJ-45 ports with auto MDI/MDIX and auto-negotiation, allowing plug-and-play installation and backward compatibility with 10/100 Mbps devices. The switch supports non-blocking switching architecture, 10KB jumbo frames and IEEE 802.3x flow control to ensure reliable data forwarding and improved performance for large file transfers.

Advantages

The TL-SG1016 provides high performance and straightforward deployment without configuration, making it suitable for expanding wired networks. Energy-efficient TP-Link Green Technology adjusts power usage based on link status and reduces environmental impact; the product complies with RoHS and uses packaging with up to 80% recyclable material. With a switching capacity that handles full-duplex traffic and built-in congestion control, the switch maintains stable throughput while protecting existing Ethernet investments.

Suitable for

• Small and medium office networks requiring 1 Gbps ports
• Rack-mounted network expansions in server rooms (1U form factor)
• Environments needing simple, unmanaged switching without configuration
• Scenarios where backward compatibility with 10/100 Mbps devices is required

Key specifications

• Model: TP-Link TL-SG1016 (MPN: TL-SG1016, EAN: 6935364020095)
• Ports: 16 × Gigabit RJ-45 (10/100/1000 Mbps) with auto MDI/MDIX
• Switch type: Unmanaged
• Switching capacity: 32 Gbit/s
• MAC address table: 8,000 entries
• Jumbo frame: up to 10 KB
• Networking standards: IEEE 802.3i/802.3u/802.3ab/802.3x
• Form factor: 1U rack-mountable, color: black

How to use

Place the TL-SG1016 in a ventilated rack space and connect power to a grounded outlet. Connect network devices using standard Cat5e or better Ethernet cables; the auto MDI/MDIX function eliminates the need for crossover cables. Each port will automatically negotiate the appropriate speed (10/100/1000 Mbps) and duplex mode. No configuration is required—simply power on the switch and connect devices to expand your wired network.

Recommendations

For optimal performance, use Cat5e or Cat6 cables for Gigabit links, allow adequate rack ventilation, and enable flow control on connected devices where supported. Keep firmware and network device settings up-to-date where applicable, and avoid overloading the switch with traffic beyond its switching capacity.
