HPE Aruba Networking AP-ANT-348 anténa - Tri-Band, 4x4, káblová - Panel - smerová anténa

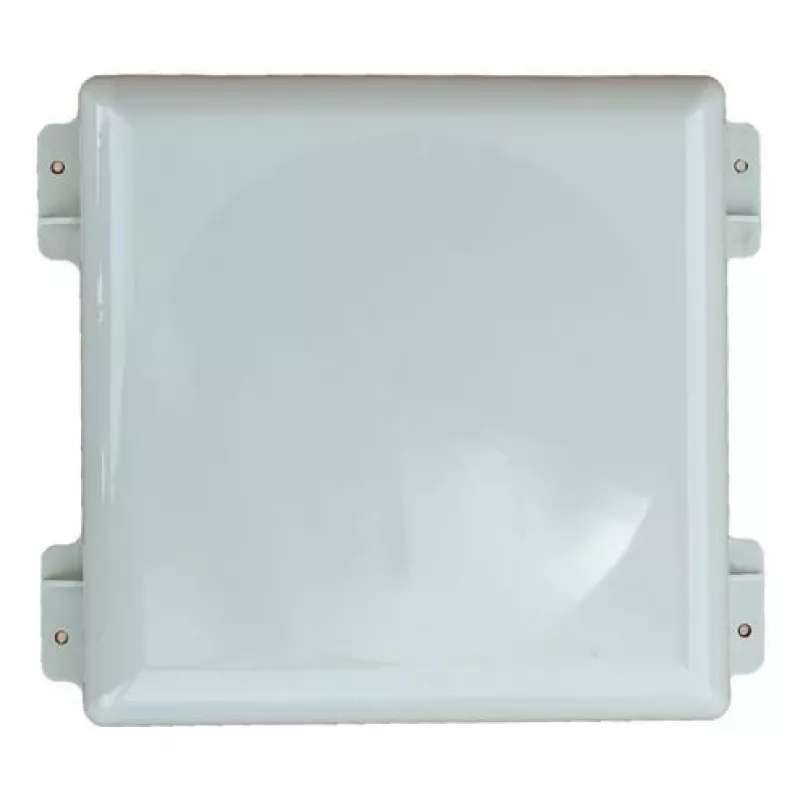

The HPE Aruba Networking AP-ANT-348 is a high-performance directional panel antenna designed for outdoor Wi-Fi deployments. With tri-band support covering 2.4 GHz, 5 GHz, and 6 GHz (Wi-Fi 6E), this antenna delivers reliable connectivity for demanding environments. Its 4x4 MIMO configuration and dual-linear polarization ensure robust signal strength and coverage.

Advantages

Optimized for Aruba access points, the AP-ANT-348 provides superior gain (8 dBi at 2.4 GHz, 9 dBi at 5/6 GHz) and a 60° beamwidth for focused coverage. The IP67-rated enclosure withstands harsh weather, making it ideal for outdoor installations. Included wall/pole mount kit simplifies deployment.

Suitable for

• Outdoor Wi-Fi networks (campus, stadiums, warehouses)
• Point-to-point or point-to-multipoint bridging
• Wi-Fi 6E deployments requiring high capacity

Key specifications

• Antenna Type: Directional Panel
• Frequency Bands: Tri-Band (2.4 GHz, 5 GHz, 6 GHz)
• Gain: 8 dBi (2.4 GHz), 9 dBi (5 GHz), 9 dBi (6 GHz)
• MIMO: 4x4
• Polarization: Dual-linear (Vertical and Horizontal)
• Connector: 4x N-Type Female
• Beamwidth: 60° Horizontal / 60° Vertical
• VSWR: <2.0:1
• Impedance: 50 Ohm
• Enclosure Rating: IP67
• Operating Temperature: -40°C to 65°C
• Mounting: Wall or Pole (kit included)
• Material: UV-resistant ABS plastic

Recommendations

For optimal performance, pair with Aruba 500 series or 600 series access points. Ensure proper grounding and surge protection for outdoor installations.
