Sieťová anténa Starlink SLK2535012 elektronická fázovaná anténa

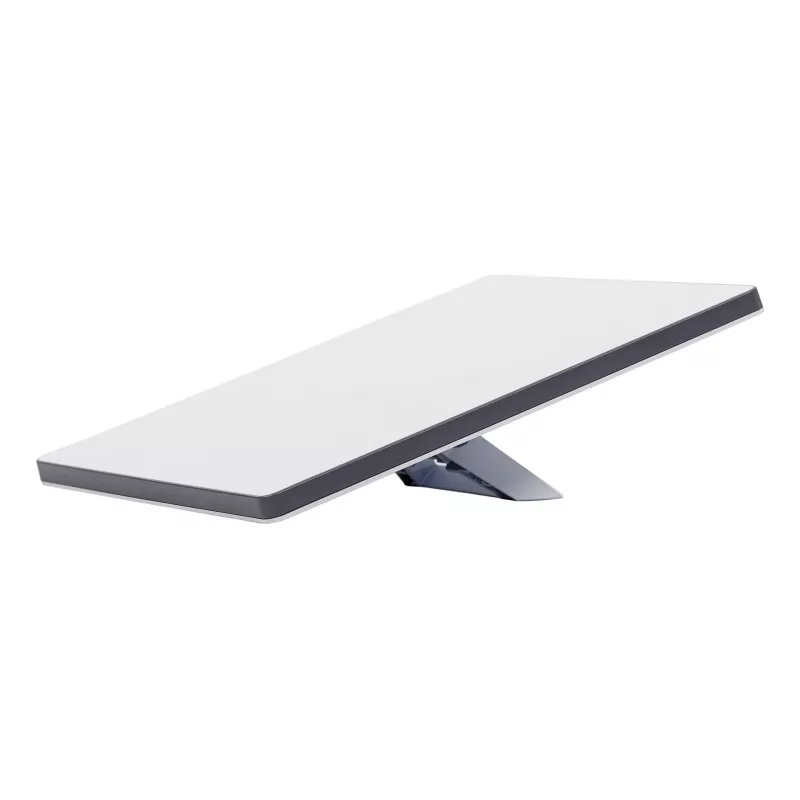

The Starlink SLK2535012 Electronic phased array is a compact network antenna designed for reliable wireless connectivity in demanding environments. With IP67 protection and integrated snow melt capability, the antenna is suited for outdoor installations where weather resistance and continuous operation are required. The unit is supplied with the necessary DC cables and operates from DC power, providing a straightforward connection and installation process.

Advantages

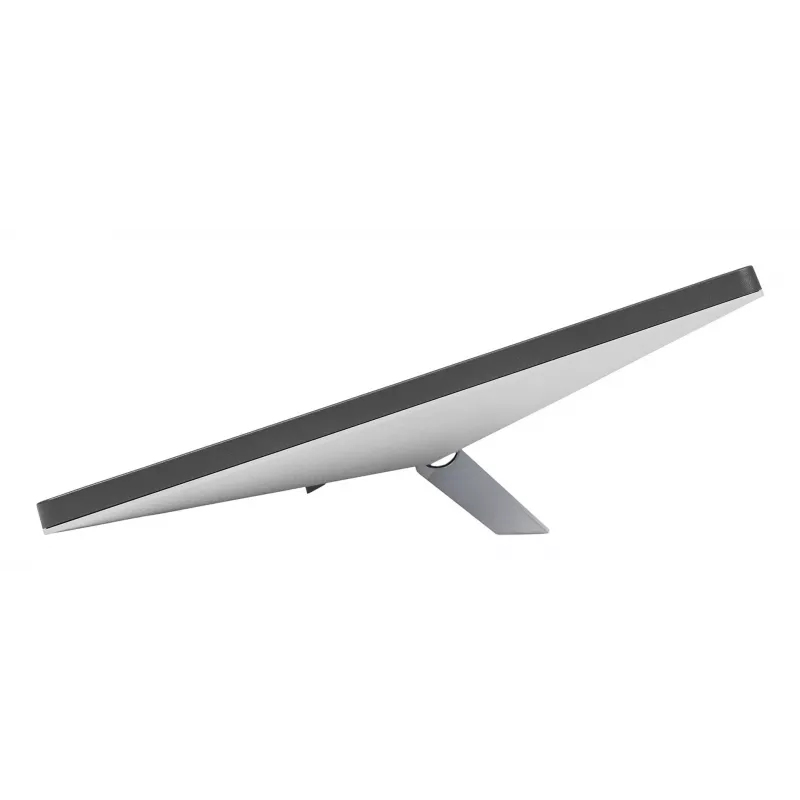

The antenna combines electronic phased array technology with a slim physical profile to deliver directional beamforming without mechanical moving parts. IP67-rated ingress protection ensures durability against dust and temporary immersion, while a dedicated snow melt feature clears accumulation at a rate of 25 mm per hour to maintain signal performance in snowy conditions. Low weight and included DC cabling simplify handling and deployment.

Suitable for

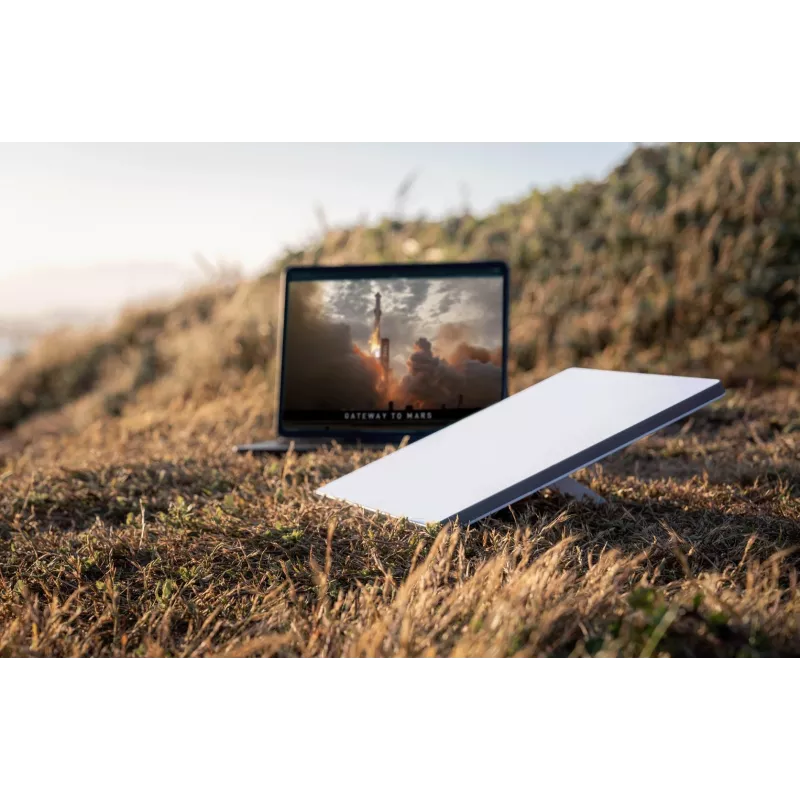

• Outdoor residential or remote site internet access
• Telecommunications links requiring weather-resistant antennas
• Temporary or permanent installations in snowy climates
• Sites where low-profile, non-mechanical beam steering is preferred

Key specifications

• Protection class: IP67 for dust and water resistance
• Snow melt capability: 25 mm/hour
• Power type: DC-powered operation
• Maximum power consumption: 40 W
• Dimensions (W × D × H): 259 × 298.5 × 38.5 mm
• Weight: 1.1 kg

How to use

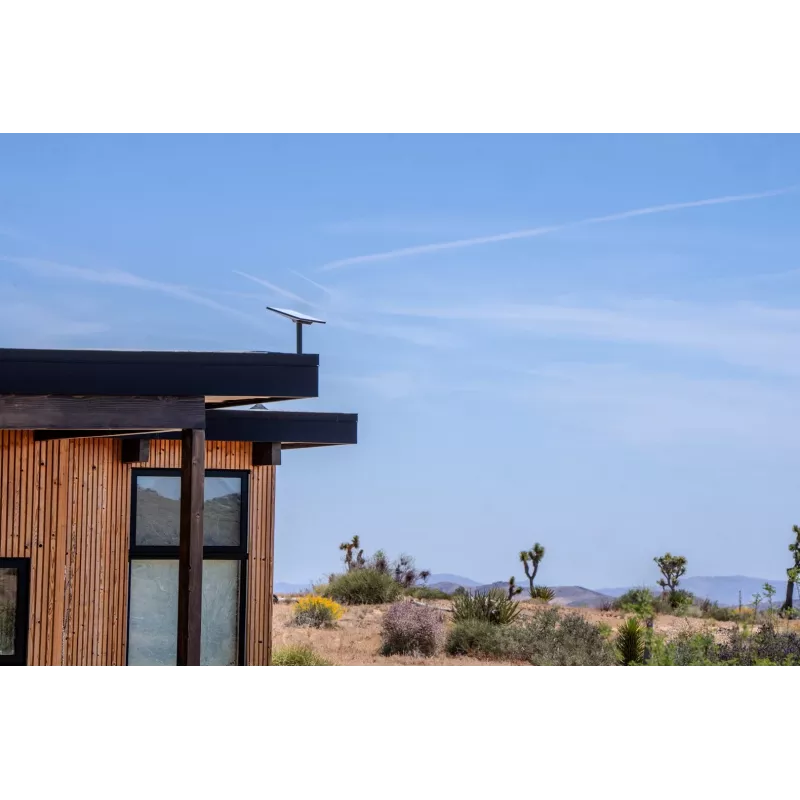

Mount the antenna at a location with a clear line of sight to the intended satellite or network source, following local mounting regulations and using corrosion-resistant hardware if required. Connect the supplied DC cables to a compatible DC power source that can supply up to 40 W, ensuring correct polarity and secure terminations. Confirm that the antenna is oriented per installation guidelines for optimal phased array performance and verify connectors and seals are tightened to maintain IP67 protection. Power on the system and perform network alignment and configuration using the supporting network equipment or management interface.

Recommendations

For best performance, install the antenna in a location with minimal obstructions and periodic visual inspection of seals and cable entry points is advised. In areas with heavy snowfall, ensure the snow melt function is powered during winter months and verify that the mounting angle does not allow excess snow buildup. Follow manufacturer guidance for grounding and lightning protection to reduce risk in exposed outdoor installations.
