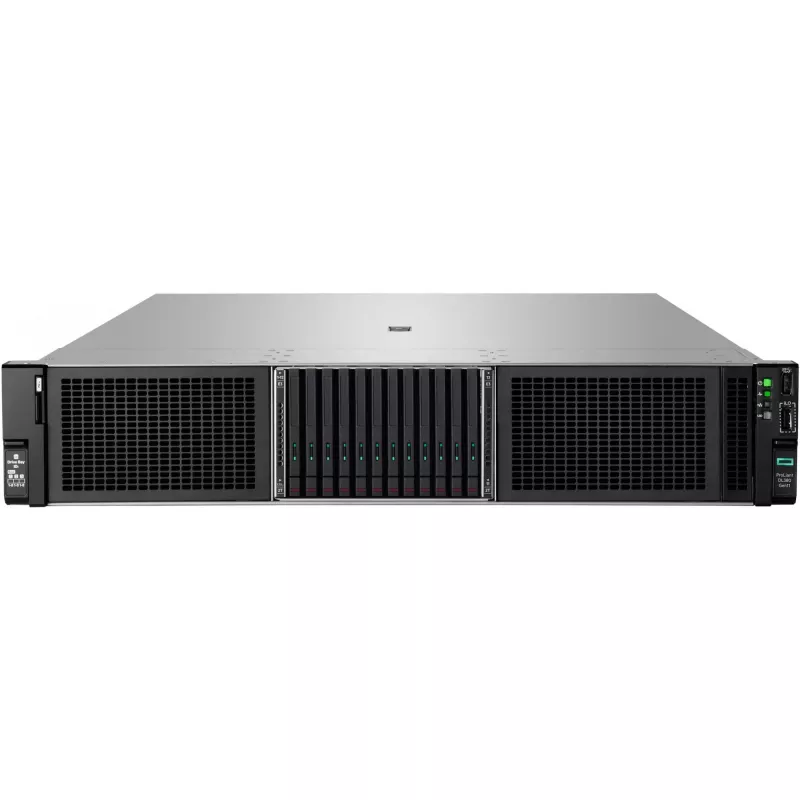

HPE DL380 Gen11 Server 960 GB Rack 2U Intel Xeon Gold 5416S 64 GB DDR5

HPE ProLiant DL380 Gen11 configured with an Intel® Xeon® Gold 5416S processor (2.0 GHz), 64 GB DDR5 memory (2x32 GB), two 480 GB SATA 6G read-intensive SFF SSDs (total 960 GB), an HPE MR408i‑o Gen11 storage controller with 4 GB cache (OCP SPDM, x8 lanes), and drive bays for eight small form factor drives in a 2U rack chassis. The system includes two 1000 W Flex Slot Titanium hot‑plug power supplies, a standard fan kit and comes with a 3/3/3 warranty. This ProLiant DL380 Gen11 server is intended for enterprise use where balanced compute, memory and storage density are required.

Advantages

The HPE DL380 Gen11 offers a balance of compute performance, memory capacity and storage scalability in a 2U rack form factor. Dual 1000 W hot‑plug power supplies provide redundancy, while the MR408i‑o controller supports RAID and accelerates storage operations with its 4 GB cache. DDR5 memory and the Intel Xeon Gold 5416S deliver improved throughput for virtualized workloads and database tasks. The configured small form factor SSDs provide low latency storage for read‑intensive applications.

Suitable for

• Virtualization hosts and hyperconverged infrastructure
• Database and analytics read‑intensive workloads
• Enterprise applications and business‑critical services
• File and storage servers requiring RAID protection

Key specifications

• Model: HPE ProLiant DL380 Gen11
• Processor: Intel® Xeon® Gold 5416S, 2.0 GHz
• Memory: 64 GB DDR5 (2 x 32 GB), dual rank
• Storage: 2 x 480 GB SATA 6G SFF SSD (read‑intensive), total 960 GB
• Storage controller: HPE MR408i‑o Gen11, x8 lanes, 4 GB cache (OCP SPDM)
• Drive bays: Up to 8 small form factor drives
• RAID: Supported (via storage controller)
• Power supplies: 2 x 1000 W Flex Slot Titanium, hot‑plug
• Chassis: Rack 2U
• Memory slots: 32 x DIMM
• Weight: 41.32 kg
• Warranty: 3/3/3

How to use

Install the HPE DL380 Gen11 into a compatible 2U rack space, connect redundant power supplies to properly rated circuits, and attach network and storage cabling per your datacenter design. Use HPE iLO or the server management tools to configure BIOS, firmware and the MR408i‑o storage controller. Create logical RAID volumes as required, install the chosen operating system and configure networking, virtualization or application software according to vendor best practices.

Recommendations

For optimal reliability and performance, keep firmware and drivers up to date via HPE Support, populate memory channels according to the server memory configuration guide, and monitor power and thermal status. Use appropriate RAID levels for data protection and schedule regular backups for business‑critical data.
