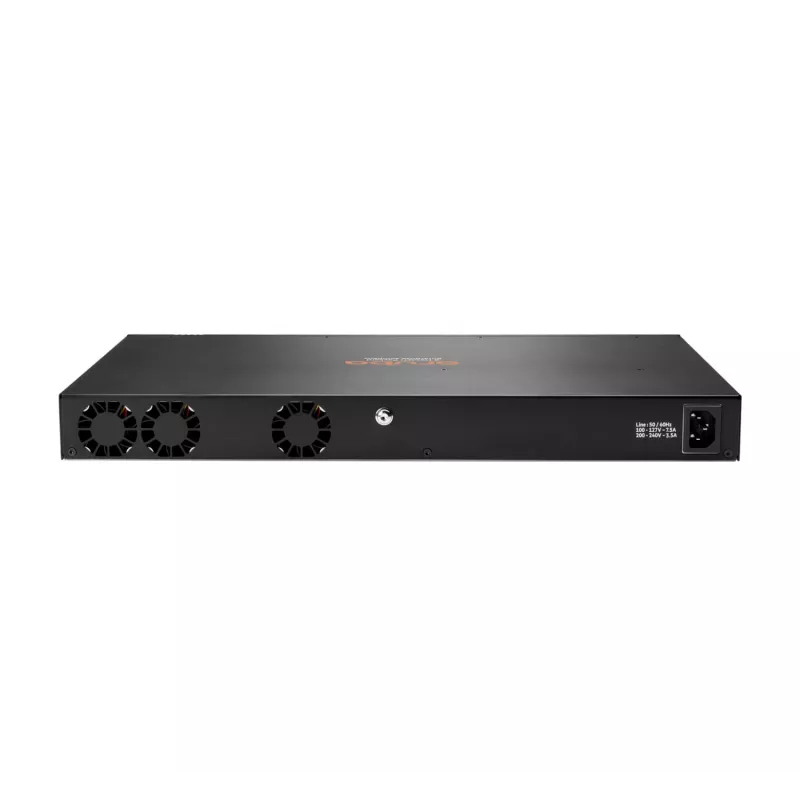

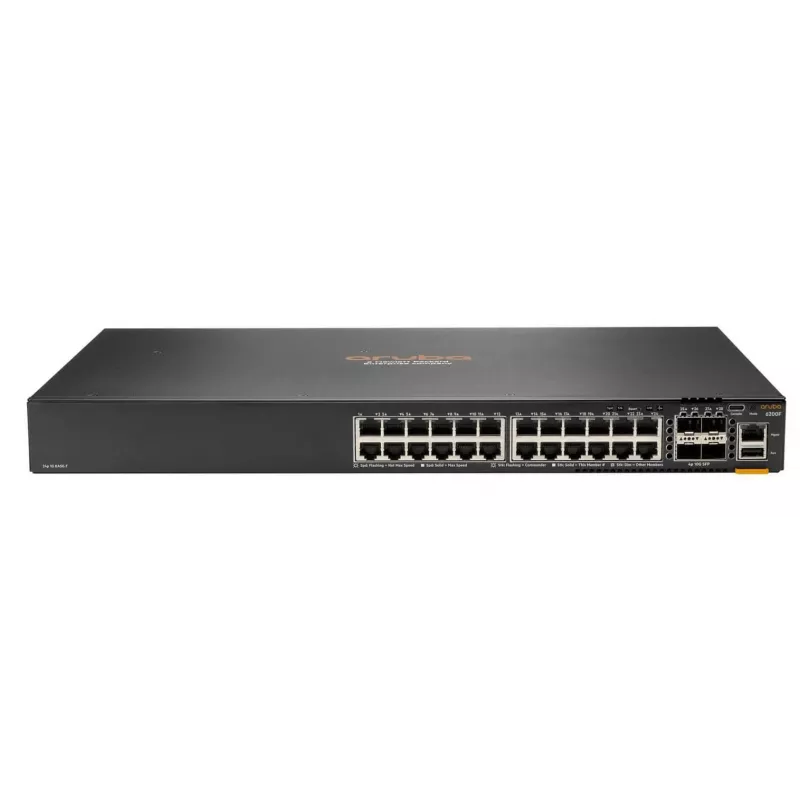

Managed Switch Aruba CX 6200F 24G Class-4 PoE 4SFP+ 370W L3

The Managed Switch Aruba CX 6200F 24G Class-4 PoE 4SFP+ 370W L3 is a stackable access switch designed for enterprise branch offices, campuses and SMB networks. It combines a programmable operating system with Aruba Network Analytics Engine for built-in monitoring and troubleshooting, supports Aruba NetEdit and the Aruba CX Mobile App for simplified configuration and deployment, and delivers wire-speed switching and routing with Aruba Gen7 ASIC architecture. The model provides 24 Gigabit Ethernet ports, four SFP+ uplinks and up to 370W of Class-4 PoE to power access points and IoT devices while offering L3 functionality and a 128 Gbit/s switching capacity.

Advantages

The Aruba CX 6200F offers real-time visibility and telemetry through the Aruba Network Analytics Engine and a Time Series Database for operational state retention. Automation features such as Aruba NetEdit and Python/REST APIs simplify large-scale configuration, validation and deployment. Hardware capabilities include low-latency Gen7 ASIC performance, front-plane stacking with Aruba Virtual Switching Framework (VSF) for up to 8 switches, built-in SFP+ uplinks and Class-4 PoE support for powering wireless APs and security devices.

Suitable for

• Enterprise branch offices and satellite locations
• Campus access layers for mid-size to large sites
• Small and medium business networks requiring PoE for APs and cameras
• Environments needing centralized analytics and automated configuration

Key specifications

• Ports: 24 × Gigabit Ethernet ports
• Uplinks: 4 × SFP+ ports
• PoE: Up to 370W Class-4 PoE budget (IEEE 802.3at compatible)
• Switching capacity: 128 Gbit/s
• Stacking: Aruba Virtual Switching Framework (up to 8 members)
• ASIC: Aruba Gen7
• Management: Aruba OS with NetEdit, CX Mobile App, REST APIs and Python agent support
• Layer: L3 switching and routing

How to use

Install the Aruba CX 6200F in a rack or on a flat surface and connect uplinks using the SFP+ ports to aggregation or core devices. Connect access devices such as wireless APs, IP cameras and endpoints to the Gigabit ports and enable PoE if required. Use the Aruba CX Mobile App for initial discovery and stacking, then import device information into Aruba NetEdit for configuration templates, validation and deployment. Monitor operational telemetry and analytics through the Aruba Network Analytics Engine and retrieve time-series data as needed for troubleshooting.

Recommendations

For predictable PoE delivery to multiple APs or cameras, plan the power budget per switch and confirm cable and device compatibility with IEEE 802.3at Class-4. Use Aruba NetEdit to validate configuration consistency across stacked devices and enable NAE telemetry for proactive issue detection.
