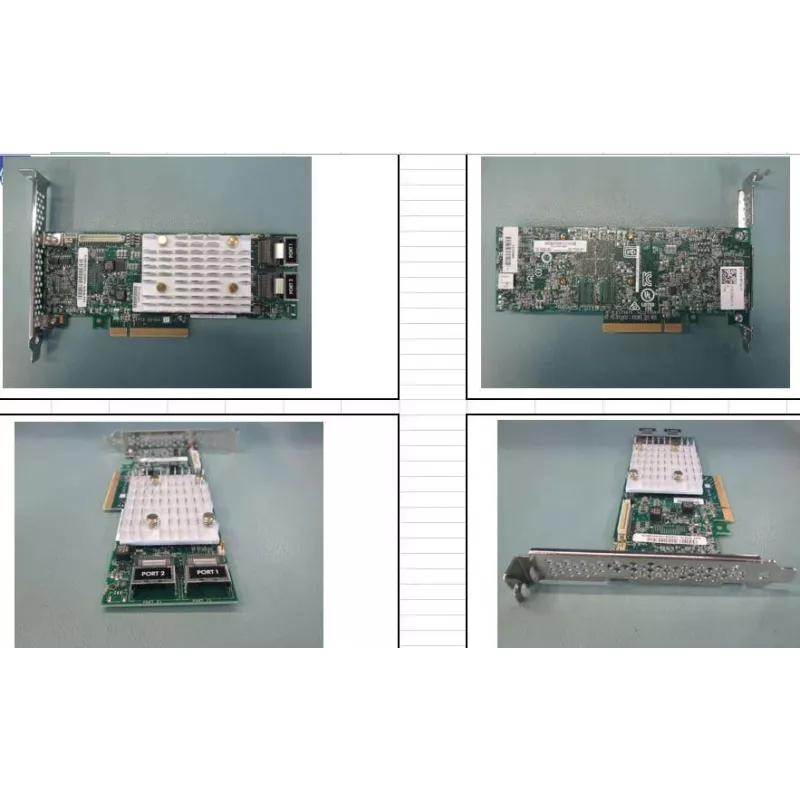

RAID kontrolér HP Smart Array E208i-p SR 12 GB SAS1, PCIe, interný, 12 Gb/s SAS

HP Smart Array E208i-p SR 12 GB SAS is an internal RAID controller designed for server environments that require hardware RAID management and high-speed SAS connectivity. The controller uses a PCIe interface and supports 12 Gb/s SAS links to connect and manage multiple SAS drives, enabling improved data reliability and throughput for enterprise storage, virtualization hosts and backup systems.

Advantages

The controller provides hardware-based RAID functionality to offload RAID calculations from the host CPU, helping to maintain server performance under heavy I/O load. Built for internal server installation with a PCIe connection, it supports 12 Gb/s SAS throughput for faster data transfer between the controller and attached drives. The Smart Array architecture includes features for simplified drive management and integration with standard server platforms.

Suitable for

• Enterprise server storage arrays requiring hardware RAID
• Virtualization hosts where consistent disk performance is needed
• Database and transaction systems with demanding I/O
• Backup and archiving servers that use SAS drives for capacity and speed

Key specifications

• Interface: PCIe (internal installation)
• SAS throughput: 12 Gb/s per SAS link
• Function: Hardware RAID controller for multiple SAS drives
• Form factor: Internal add-in card for server chassis
• Primary use: Enterprise storage and server environments

How to use

Install the controller in an available PCIe slot inside a compatible server chassis and connect SAS drive backplanes or cables to the controller's internal ports. After physical installation, power on the server and access the server management utility or Smart Array configuration tool to initialize drives, create RAID arrays and set RAID levels according to capacity and redundancy requirements. Ensure firmware and management software are updated to the versions recommended by the server vendor for integration and stability.

Recommendations

Use the controller with certified SAS drives and follow HP/ProLiant server compatibility lists. Choose RAID levels and cache/stripe settings appropriate to your workload—higher redundancy for critical data and performance-optimized settings for transaction-heavy applications. Keep controller firmware and management drivers current and monitor array health regularly through the server management tools.
