ICY BOX ICY BOX IB-564SSK - skriňa pre pamäťové disky s ventilátorom - 3.5 (8.9 cm)

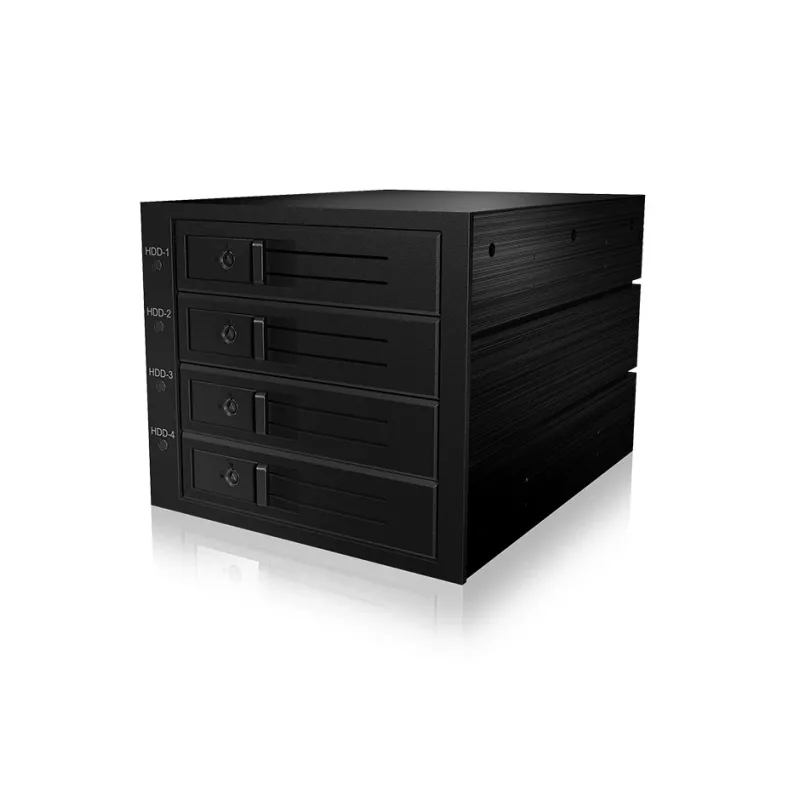

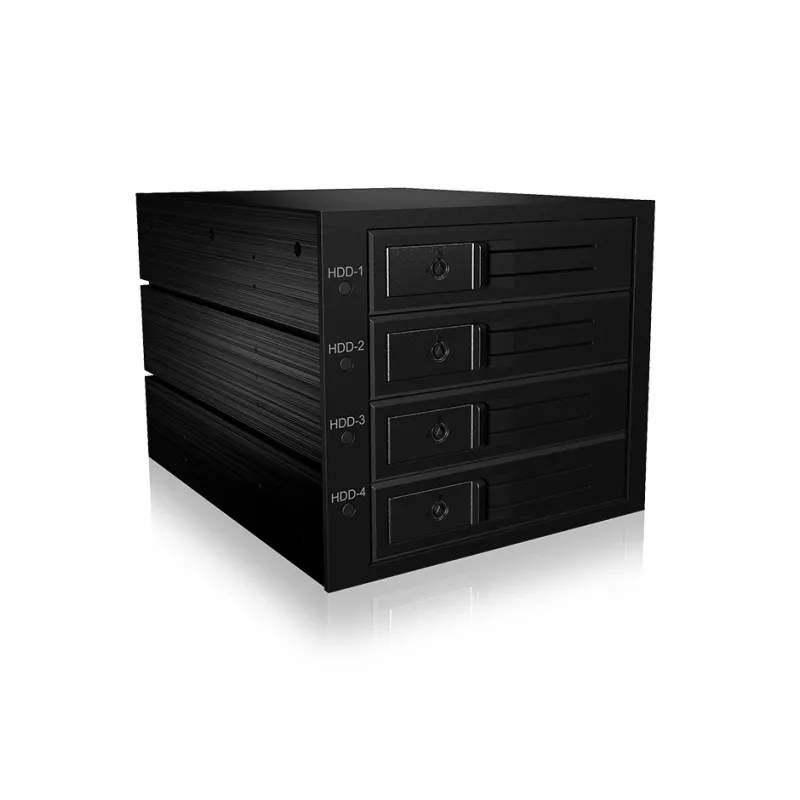

The ICY BOX IB-564SSK is a compact storage drive tray designed to hold multiple drives in a 5.25" bay. Constructed from aluminium with a black finish, the tray accepts three 5.25" devices and can accommodate 2.5" HDDs with the supplied accessories. The enclosure includes a locking mechanism for additional security and comes with two keys and SATA cables for installation.

Advantages

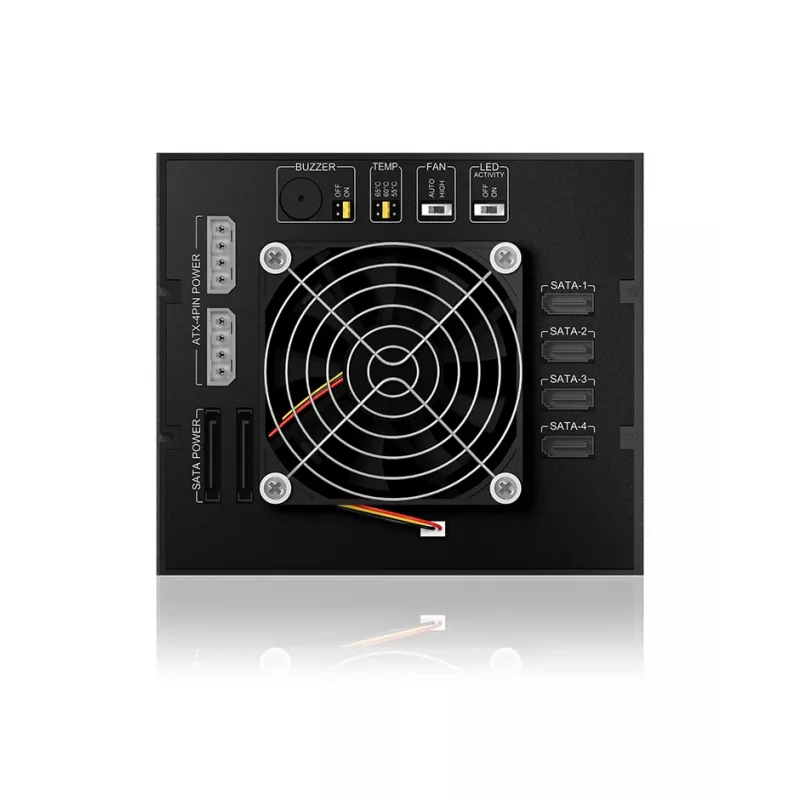

Built from high-quality metal, the tray provides mechanical strength for demanding environments while the combination of passive aluminium dissipation and an 80 mm fan ensures efficient cooling with low noise. The front panel supports up to four 3.5" SATA/SAS drives in compatible configurations, and the device includes visual and audible indicators for drive and fan status as well as an adjustable temperature alarm.

Suitable for

• Workstations and small servers needing multiple internal drives
• Systems requiring secure, lockable drive storage
• Environments where passive and active cooling is desired

Key specifications

• Material: Aluminium
• Colour: Black
• Supported drive types: 5.25" bay devices; compatible with 2.5" HDDs (with accessories)
• Cooling: Passive metal dissipation plus 80 mm fan
• Drive bays: fits up to three 5.25" devices (front/backplane supports up to four 3.5" SATA/SAS in compatible setups)
• Temperature alarm: adjustable thresholds (55 °C, 60 °C, 65 °C)
• Package contents: tray, two lock keys, SATA cables
• Dimensions (W×D×H): 148 × 220 × 127 mm
• Weight: 1.792 kg

How to use

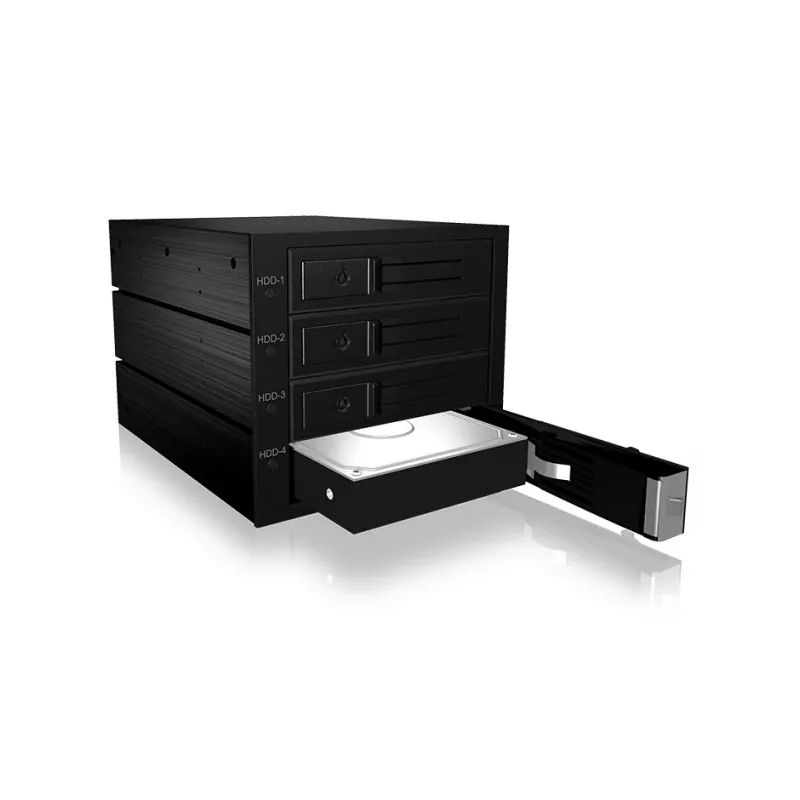

Install the ICY BOX IB-564SSK into a standard 5.25" drive bay following your computer chassis instructions. Mount 2.5" drives using the supplied accessories and connect each drive with the provided SATA cables. Secure the enclosure using the integrated lock and keys if required. Ensure the fan connector is attached to a suitable power source or motherboard header to enable active cooling and status indicators.

Recommendations

Place the tray in a chassis with adequate airflow, monitor the temperature alarm settings, and set the threshold appropriate for your drive types and workload to ensure reliable operation.
