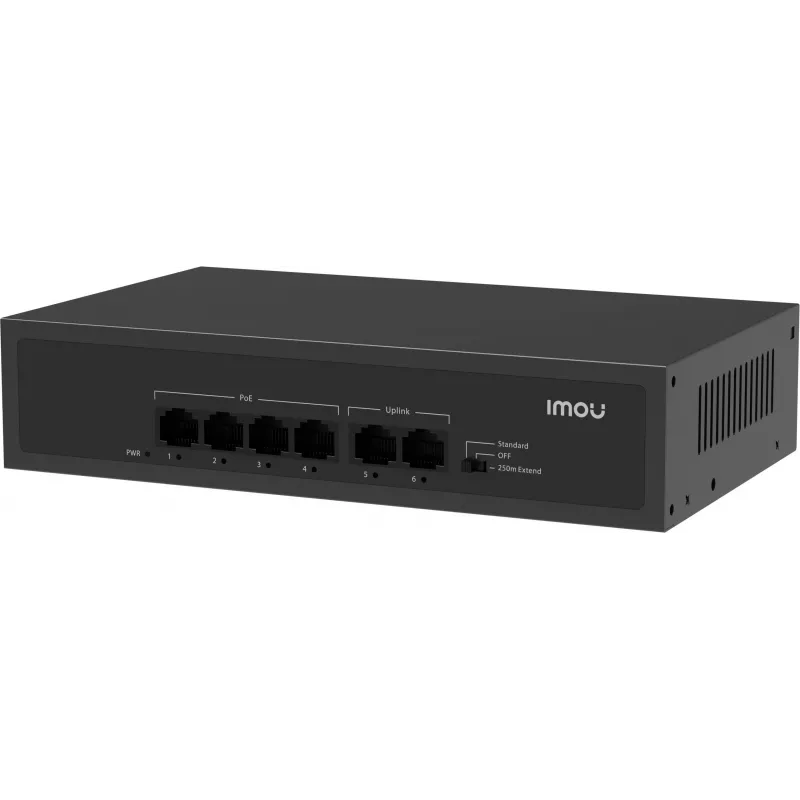

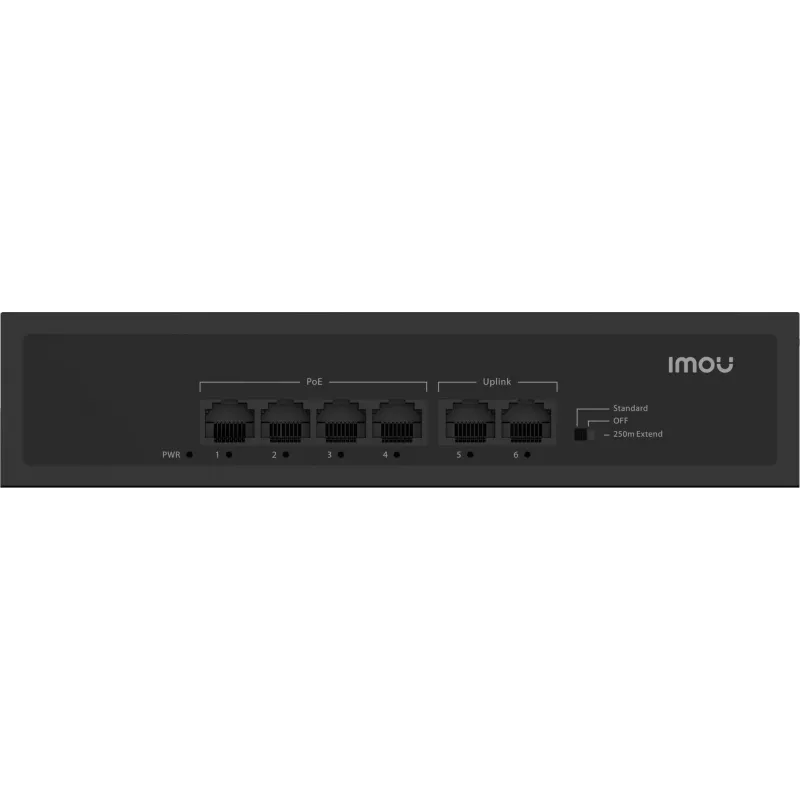

Imou SF106P 6-portový PoE+ switch (4x PoE, 2x uplink, 60W rozpočet)

The Imou SF106P is a compact and reliable 6-port PoE+ switch designed for small to medium-sized surveillance and network installations. With 4 PoE ports and 2 uplink ports, it provides seamless connectivity for IP cameras, access points, and other PoE devices. The switch supports IEEE 802.3af/at standards with a total PoE budget of 60W, delivering up to 30W per port. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments. The switch also features extended PoE transmission distance up to 250m in Extend Mode, surge protection of 6KV, and easy desktop or wall-mount installation.

Advantages

Reliable and cost-effective solution for expanding your network with PoE capabilities. The fanless design guarantees silent operation, while the extended PoE distance allows flexible device placement. Surge protection ensures durability in various environments.

Suitable for

• Small office and home office (SOHO) networks
• IP surveillance systems with up to 4 cameras
• Wireless access point deployments
• Retail stores, cafes, and small businesses

Key specifications

• 6 Ethernet ports: 4 PoE (10/100 Mbps) + 2 uplink (10/100 Mbps)
• PoE standard: IEEE 802.3af/at, up to 30W per port, total 60W
• Switching capacity: 1.2 Gbps
• Packet forwarding rate: 0.89 Mpps
• MAC address table: 2K entries
• Extended PoE distance: up to 250m (Extend Mode)
• Surge protection: 6KV
• Fanless design for silent operation
• Power supply: External DC 52V/1.25A adapter
• Operating temperature: -10°C to 55°C
• Mounting: Desktop or wall-mount

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch is plug-and-play, no configuration required. Ideal for expanding your network with PoE devices without the need for additional power outlets.
