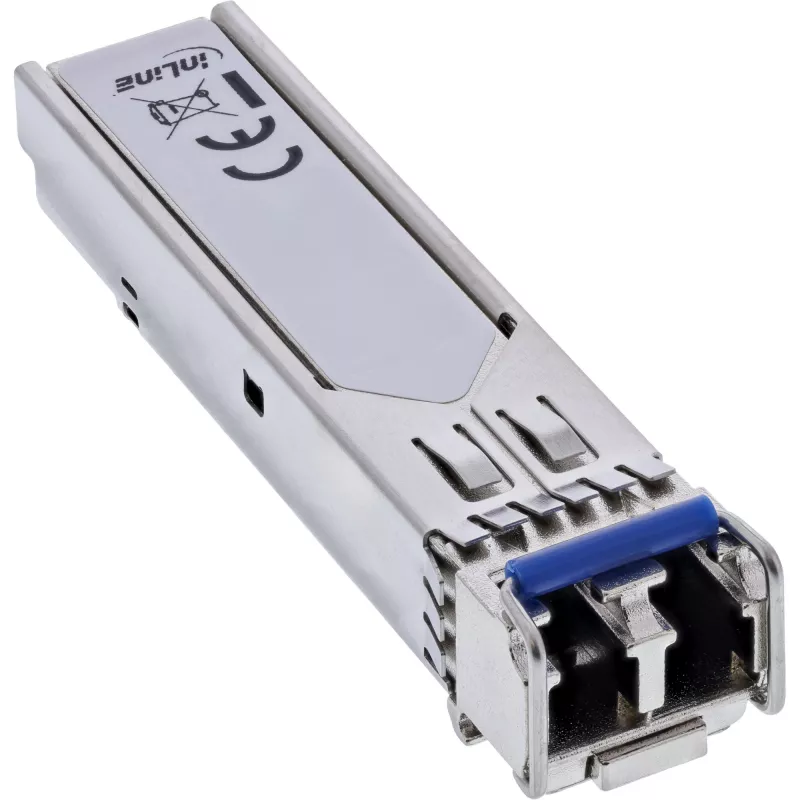

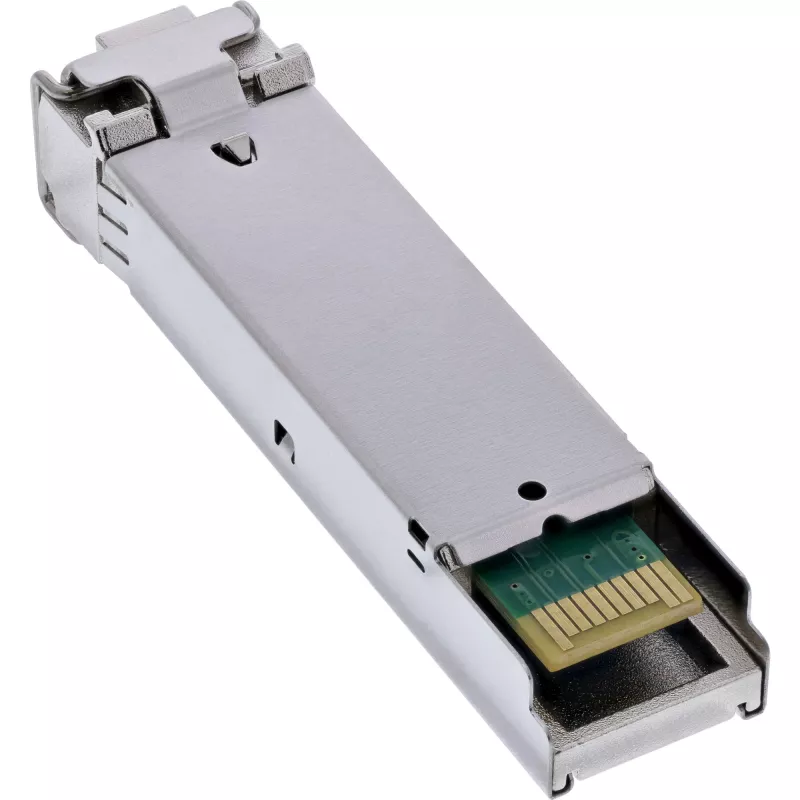

InLine 32335X modul sieťového transceivera optické vlákno 100 Mbit/s SFP 1310 nm

Long range for single-mode connections:Supports fibre optic distances of up to 10 km – ideal for site networking or building connections.
100BASE-FX standard for reliable communication:Transmits data at 100 Mb/s – proven for industrial and network applications.
1310 nm FP laser technology:Ensures stable transmission and high signal quality over long distances.
MSA-compliant for easy integration:Compatible with all devices that support SFP according to SFF-8472.
Hot-plug capable for uninterrupted installation:Can be installed and removed during operation – no network interruption required.

The InLine® SFP Module 32335X is the optimal solution for fibre optic connections in the 100BASE-FX standard over longer distances. With a range of up to 10 km on single-mode fibre and a stable data rate of 100 Mb/s, this module offers reliable connectivity for professional applications – e.g. in industrial plants, corporate networks or for site connections.
The transceiver uses a 1310 nm FP laser and a PIN receiver with TIA amplifier for clean optical signal transmission. Hot-plug capability allows quick and easy installation or replacement during operation – without restarting the system.
The module complies with the MSA SFF-8472 standard and ITU-T G.957 and can therefore be used in a wide range of SFP slots. The LC duplex connection provides a compact and reliable plug connection – ideal for structured fibre optic infrastructures.

Form factor: SFP (Small Form Factor Pluggable)
Transmission rate: 100 Mb/s (100BASE-FX)
Fibre type: Single mode
Range: up to 10 km
Transmitter wavelength: 1310 nm FP
Receiver wavelength: 1260–1620 nm
Connection: LC duplex
Compatibility: MSA SFF-8472, ITU-T G.957
Laser class: Class 1, IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5 %
Current consumption: max. 300 mA
Power consumption: max. 1.0 W
Operating temperature: 0 °C to +70 °C

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335X. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Power consumption (typical): 1 W. Compliance certificates: CE, TÜV mark. Width: 57 mm, Depth: 0.17 mm, Height: 13 mm. Package width: 60 mm, Package depth: 90 mm, Package height: 20 mm

How to use

Insert the SFP module into an available SFP slot on compatible network equipment while the host device is powered on or off, as the module supports hot-swapping. Connect singlemode fiber cables with the appropriate LC connectors to the module’s optical ports, ensuring correct transmit/receive orientation. Configure the host port on the switch, router, or media converter to operate at 100 Mb/s or auto-negotiate according to network requirements. Verify link status and diagnostics using the host device management interface or indicator LEDs.

Recommendations

Use singlemode fiber of appropriate grade and adhere to bend radius and connector cleanliness practices to maintain optimal performance. Match the module’s wavelength and data rate with the remote transceiver to ensure compatibility. For distances approaching 10 km, confirm end-to-end signal budget and environmental conditions to prevent link degradation.
