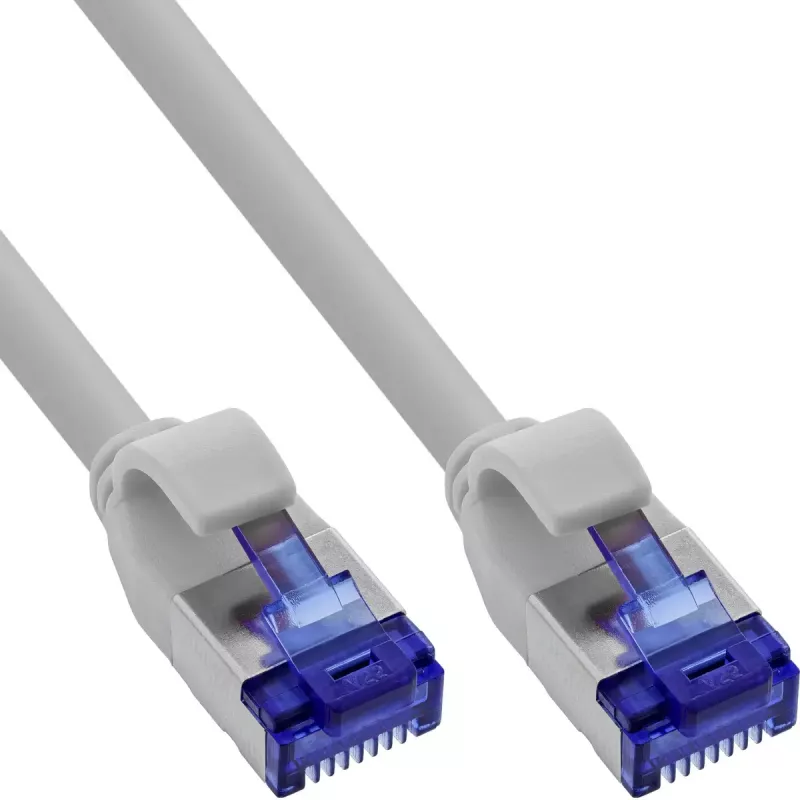

InLine 74930 sieťový kábel sivý 30 m Cat6a S/FTP (S-STP)

Space-saving design for maximum port density: Approx. 40 % less space required than conventional AWG26 patch cables – ideal for network cabinets and server rooms.
High-quality copper conductors for maximum performance: Full Cat.6A transmission quality with up to 10 Gbit/s over lengths of up to 30 meters.
PoE support up to 87 watts (4PPoE): Enables energy-efficient operation of IP cameras, access points or VoIP telephones without additional power supply units.
Sustainable & economical: Approx. 25% material savings reduce transportation and manufacturing costs and improve the CO2 balance.
Flexible, safe TPE sheath (LSZH): Flame-retardant, halogen-free and particularly flexible for narrow installation paths.

The InLine® Slim Cat.6A S/FTP patch cable seriescombines highest network performance with maximum space and energy efficiency. Thanks to the particularly slim design with AWG28 conductors, these cables enable a significantly higher port density in network cabinets and ensure improved air circulation, which increases cooling and efficiency.

In contrast to conventional, thinner AWG32 cables, this cable supports full Cat.6A transmission quality at up to 500 MHzand 4PPoEwith up to87 watts. This makes it the ideal solution for professional applications where a combination of space-saving, PoE capability and high performance is required.

The use of high-quality copper conductors minimizes signal loss and ensures a reliable network connection - even over distances of up to 30 metres. The S/FTP double shielding reliably protects the cable from electromagnetic interference.

In addition to its technical performance, this cable also offers ecological benefits: Approx. 25% less material usedreduces transportation costs and, in the long term, environmental taxes in accordance with future Green Law requirements.

The TPE sheath (LSZH)combines flexibility with fire protection: It is halogen-free, flame-retardant and ensures minimal smoke development in the event of fire – ideal for safety-critical applications.
Additional technical specifications:

Conductor material: Pure copper
Cable construction: S/FTP (pair and overall shielding)
Sheath material: TPE (LSZH – Low Smoke Zero Halogen)
Wire gauge: AWG28
Operating temperature: -20 to +75 °C
Outlet diameter: 4.5 mm
Population: 1:1 according to T568B
PoE support: Yes, up to 87 watts (4PPoE)

InLine 74930. Cable length: 30 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Grey

How to use

Connect the RJ‑45 plugs to the corresponding RJ‑45 ports on network devices such as switches, routers or patch panels. Ensure connectors are fully inserted and latched. Follow standard network cabling practices: avoid sharp bends, do not exceed the maximum recommended pull tension, and maintain separation from high-voltage power lines to reduce interference. For PoE devices, verify the switch or injector supports the required 4PPoE power level before use.

Recommendations

For optimal performance, keep cable runs below 30 m for 10 Gbit/s applications, maintain bend radius recommended by the manufacturer, and use proper cable management in high-density racks to preserve airflow and cooling. Use LSZH cabling in enclosed or safety-sensitive areas to minimize smoke and hazardous gases in the event of fire.
