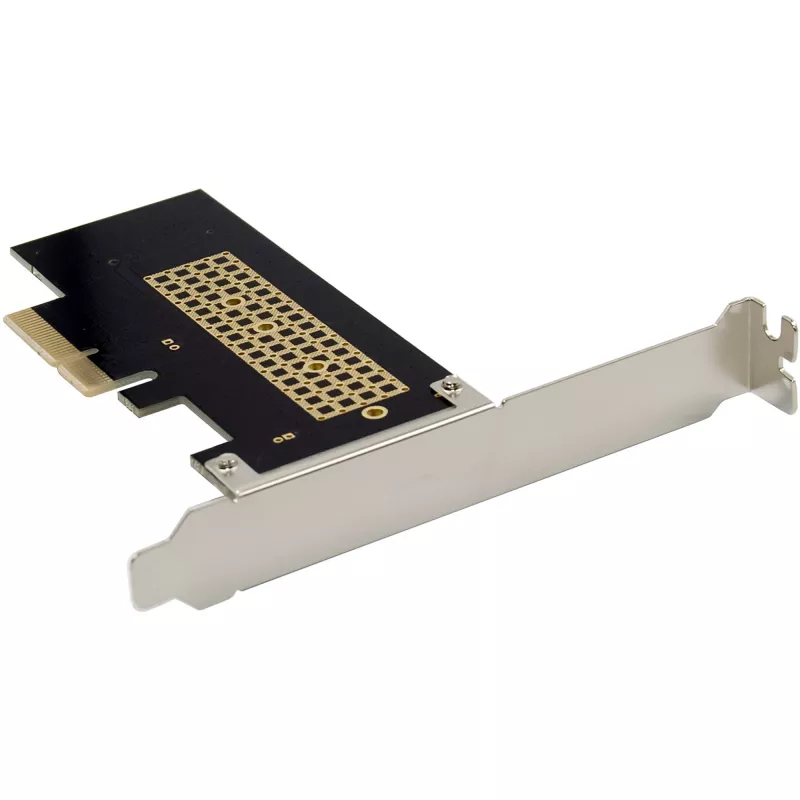

InLine 76660V Interná M.2 rozhranie karta PCIe 4 Gbit/s

Supports an NVMe SSD (M.2 Key M)for fast memory expansion
PCIe 3.0 x4 interfacewith a maximum bandwidth of up to 32 Gb/s
Automatic lane detection on bootfor easy system integration
Onboard LED indicatorfor displaying read and write activities
No additional drivers required– ready for immediate use

The InLine® PCI Express cardenables the operation of a NVMe SSD (M.2 Key M)via a PCIe 3.0 x4 interfacewith up to 32 Gb/s bandwidth, enabling fast boot times and optimized data transfers.
Thanks to automatic lane detection during booting, the card is easily integrated into the system. The power supply of the NVMe SSD is provided directly via the PCIe bus (3.3 V). In addition, an LED indicatorfacilitates error diagnosis and shows the operating status of the SSD.
Technical data:

Bus type & PCIe: PCIe 3.0 x4 lane (maximum bandwidth up to 32 Gb/s)
Connection – interfaces:
1 x M.2 slot (Key M) for NVMe SSDs
Compatible module sizes: 2230, 2242, 2260, 2280

Data rate: Each port supports transfer rates of up to 4 Gb/s
Dimensions: 95 mm x 52 mm (PCIe board)

Operating conditions:

Operating temperature: -40 °C to +85 °C

Functions:

Automatic detection of the lane configuration at boot
Onboard LED indicator to display the read/write activity
NVMe SSD receives its power supply directly via the PCIe bus (3.3 V)
No additional driver required

System requirements:Hardware:

PC with a free PCIe slot (x4, x8 or x16 – the card is compatible)
Motherboard with support for PCIe 3.0 or higher

Operating system support:

Windows: 11, 10, 8.1, 8, 7
Windows Server: 2012 R2
Linux: from kernel 2.6

Scope of delivery:

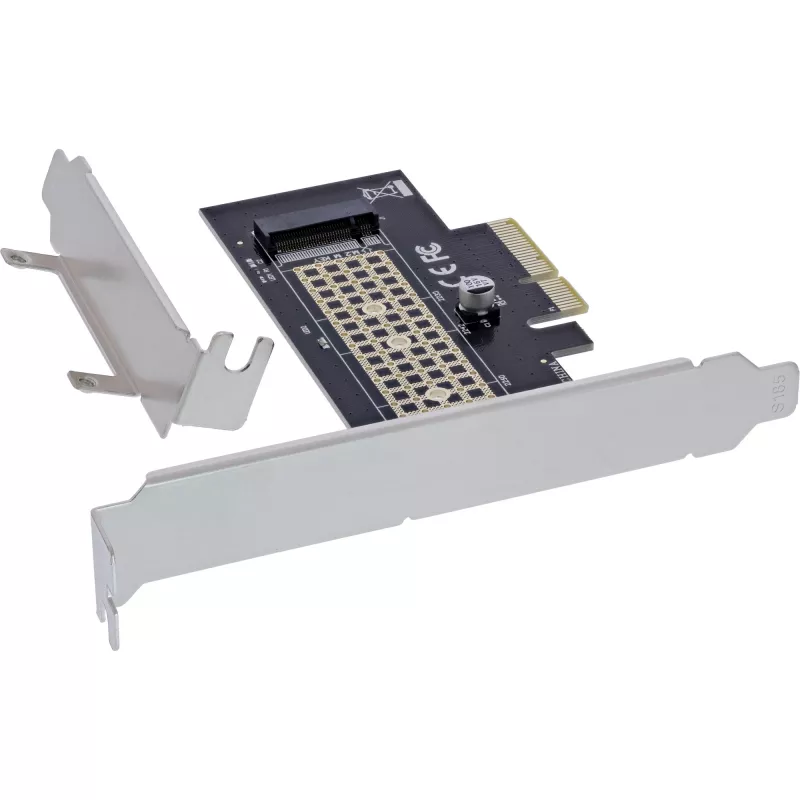

1 x InLine® PCI Express card to 1x internal NVMe M.2
1 x low-profile slot bracket
1 x hand screwdriver
2 x screws
1 x heat conduction pad
1 x instruction manual (German/English
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76660V. Host interface: PCIe, Output interface: M.2, Host interface gender: Male. Country of origin: Taiwan. Data transfer rate (max): 4 Gbit/s, Bandwidth: 32 Gbit/s. Power supply input voltage: 3.3 V. Windows operating systems supported: Windows 10, Windows 11, Windows 8, Windows 8.1, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel..., Server operating systems supported: Windows Server 2012 R2

How to use

Install the InLine 76660V card into an available PCIe x4, x8 or x16 slot on a compatible motherboard. Mount the NVMe SSD into the M.2 Key M slot and secure it with the supplied screws and heat conduction pad if required. Attach the low-profile bracket if needed for smaller chassis. Power is provided automatically via the PCIe bus; after assembly the system will detect the SSD using automatic lane detection during boot. No additional driver installation is necessary for supported operating systems.

Recommendations

Ensure your motherboard BIOS supports NVMe devices and PCIe 3.0 operation. For sustained performance, verify adequate cooling for the NVMe SSD and use the included heat conduction pad when recommended by the SSD manufacturer.
