InLine 92504L káblový spoj 6,35 mm 3-pólový jack konektor TRS / svorkovnica 3 svorky čierna, zelená

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Precise contacting of audio signals: 3-pin 6.35 mm jack plug (TRS) with clearly assigned terminals (L, R, +) – ideal for professional audio or control cables in prototyping, measurements, or control engineering.
Side terminal strip for space-saving installation: Adjacent terminals in a 5.0 mm grid allow for compact integration – e.g., in audio distributors, test boxes, or signal converters.
Versatile use in industry:For analog signal wiring in laboratories, control modules, audio interfaces, or multimedia applications with 6.35 mm interfaces.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of up to 1 A per pin ensure reliable signal transmission – even in continuous operation.

The InLine® 6.35 mm TRS jack plug (stereo, 3-pin) on terminal block offers a solderless solution for connecting analog audio signals – e.g. in control lines, test setups, or prototypes. The screw terminals with pressure plate are aligned laterally and enable fast, tool-assisted wiring in the 18–26 AWG range.
The terminal assignment is clearly marked: L (left), R (right), + (common ground/shielding). The compact design is also suitable for applications with limited space, such as in rack systems, distributors, or mobile test fields. The EVA insulation layer on the underside provides protection when mounted on a conductive surface.

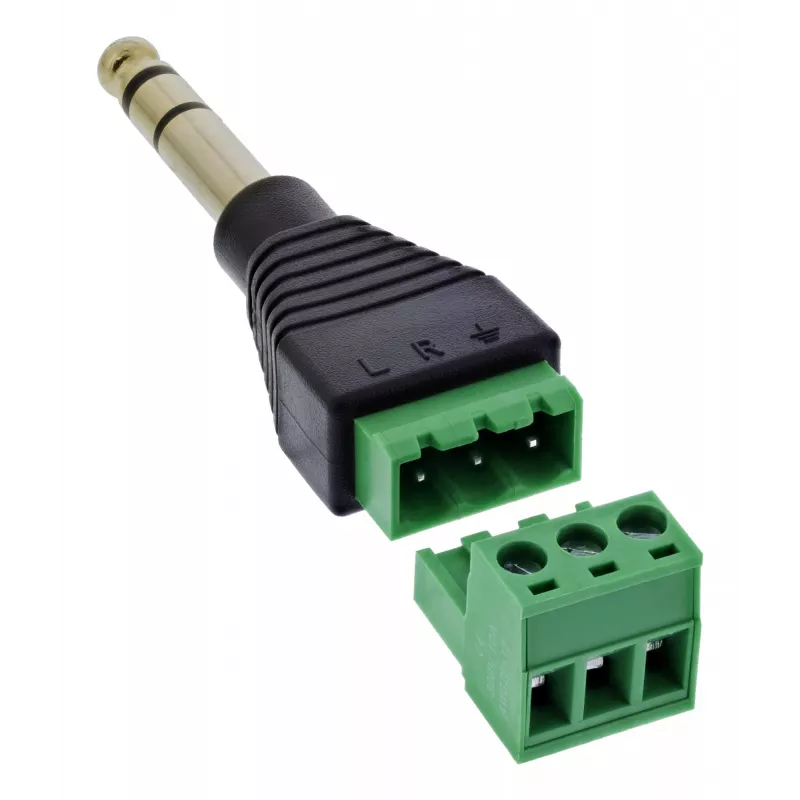

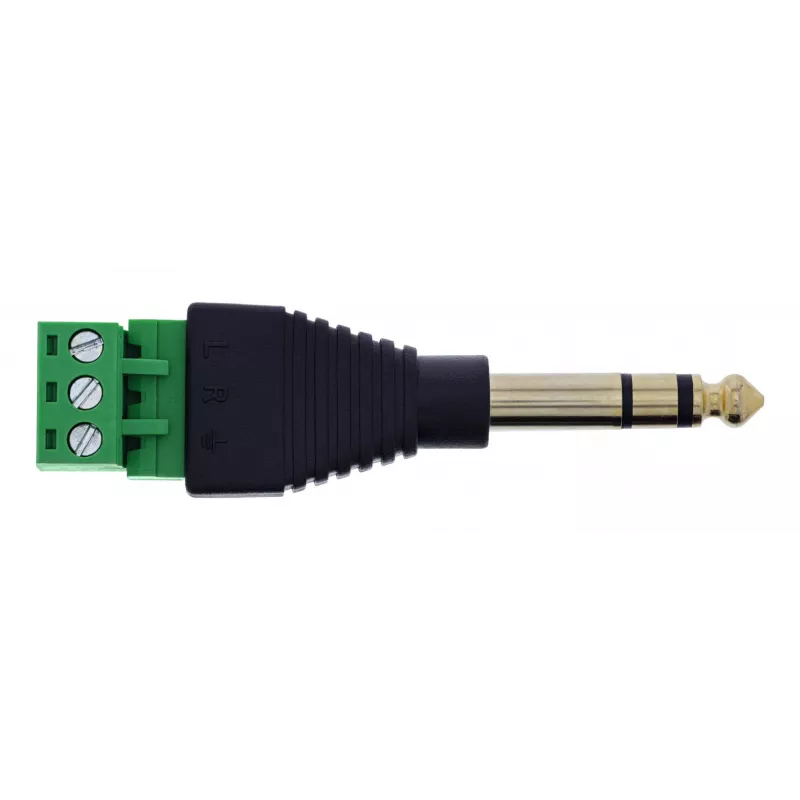

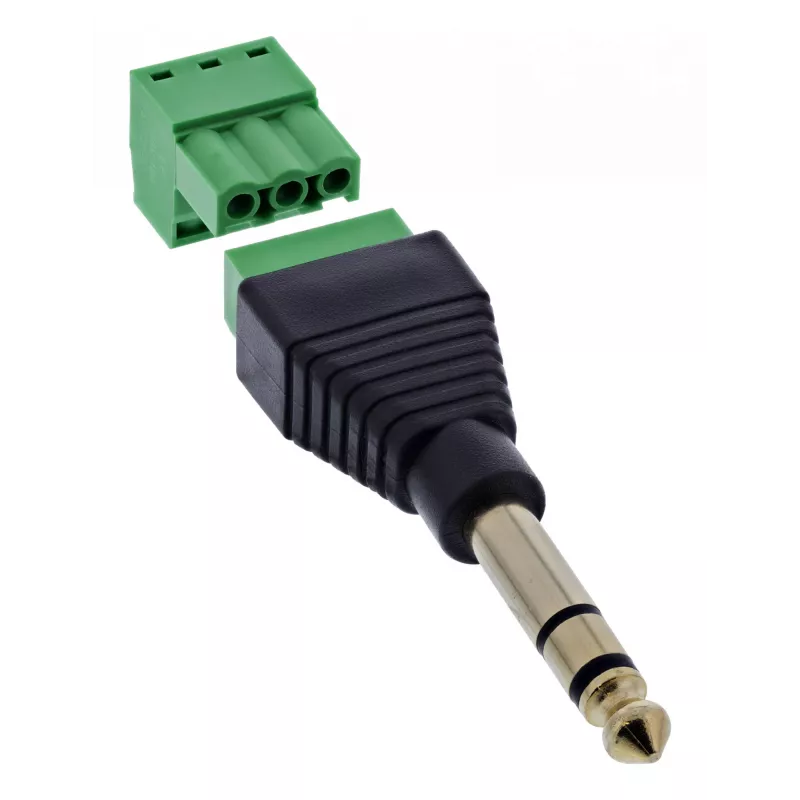

Jack connection:6.35 mm TRS jack plug (3-pin, stereo)
Number of poles / terminal assignment:3 terminals / L, R, +
Connection technology:Screw terminal with pressure plate, 5.0 mm pitch
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:70 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Max. conductor resistance:5 ohms
Operating temperature:–10 °C to +70 °C
Insulation layer:EVA insulation on underside

InLine 92504L. Connector(s): 6.35 mm 3-pin jack TRS / Terminal block 3 terminals, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Weight: 16 g, Width: 21 mm, Depth: 80 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³, Package type: Polybag. Country of origin: Taiwan

How to use

Strip the cable conductors to the manufacturer-recommended length for 18–26 AWG, insert each conductor into the matching screw terminal marked L, R or +, and tighten the pressure-plate screw with a flat-head screwdriver (≤ 2.5 mm) until secure. Plug a 6.35 mm TRS male connector into the jack. Mount the unit in the intended location, ensuring the EVA insulation side faces any conductive surface.

Recommendations

For reliable long-term operation, route and secure cables to avoid mechanical strain on the terminals, observe the 1.0 A per-pin current limit, and avoid exposure beyond the specified temperature range (–10 °C to +70 °C). Verify correct terminal assignment (L, R, +) before powering connected equipment.
