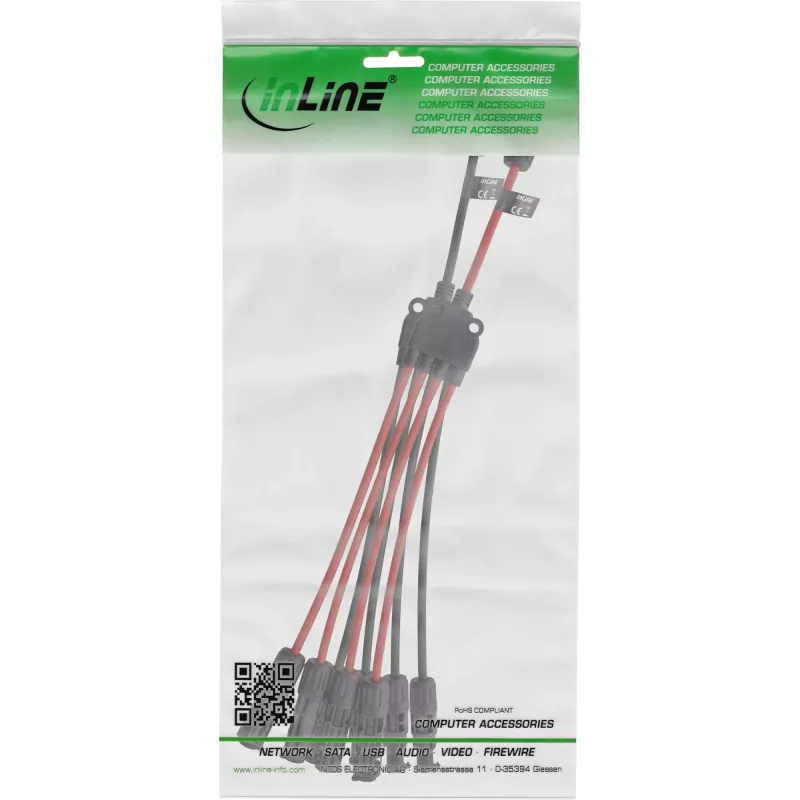

InLine 95040 káblová sada nízkeho/stredného/vysokého napätia

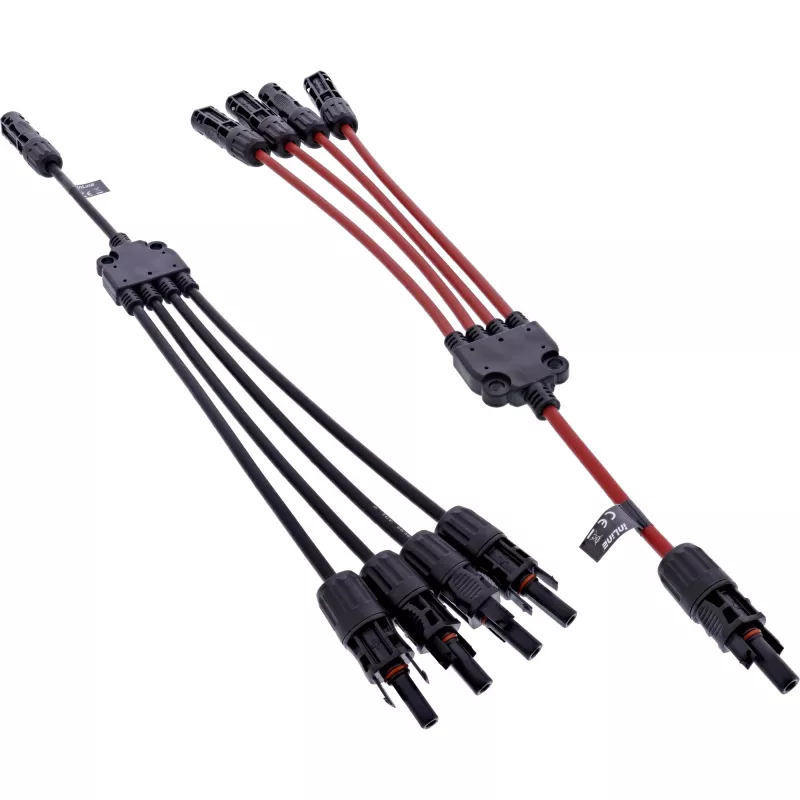

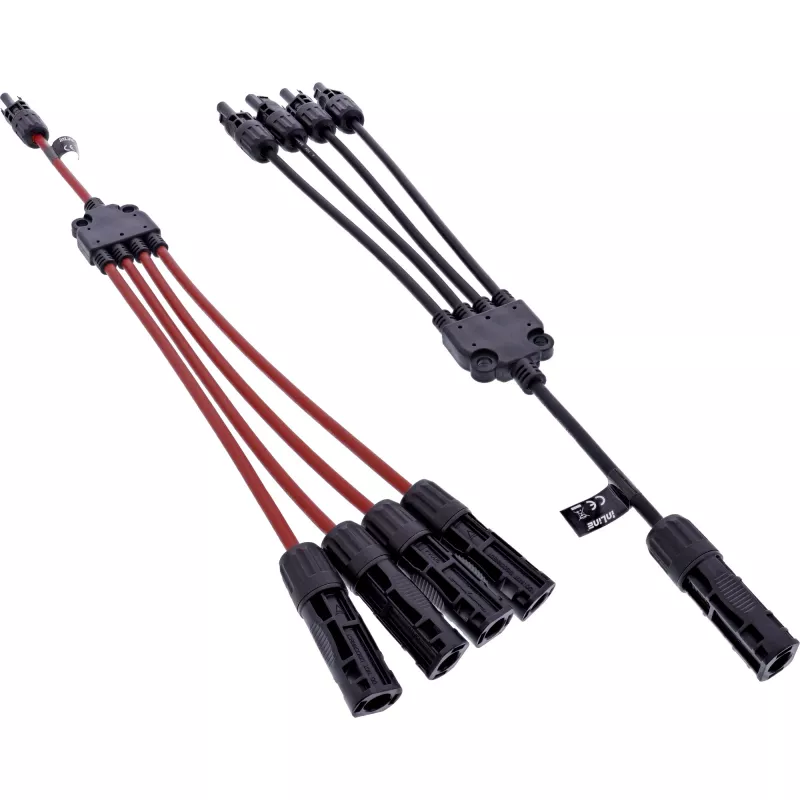

The InLine 95040 cable set is a high-quality solar cable Y-splitter designed to distribute cable paths to corresponding solar modules. It has a conductor cross-section of 4 mm², supports DC input voltages up to 1500 V and nominal current up to 30 A, and comes with male and female connectors. The set includes a 0.42 m length cable with an outer diameter of 5.5 mm, suitable for use in photovoltaic panel installations and related DC connections.

Advantages

The InLine 95040 combines a compact 0.42 m cable length with a 4 mm² conductor for reliable current transmission up to 30 A and voltage rating up to 1500 V. Its male and female connectors enable straightforward DC connections between panels and system components. The product is intended for outdoor solar applications and conforms to common electrical parameters used in modern PV systems.

Suitable for (tasks / use cases)

Key specifications

How to use

Ensure that the system is de-energized before connecting the InLine 95040 cable set. Plug the male and female connectors to the corresponding panel or device connectors until they click or lock in place, observing correct polarity. Route the cable to avoid sharp bends and mechanical strain; secure it with appropriate clamps or ties. After installation, verify connections and continuity and, if applicable, perform insulation and polarity checks before energizing the circuit.

Recommendations

Use the cable set only within the specified voltage (up to 1500 V DC) and current (30 A) limits. For outdoor installations, protect connections from prolonged moisture exposure and mechanical damage; follow applicable local electrical codes and PV installation best practices.
