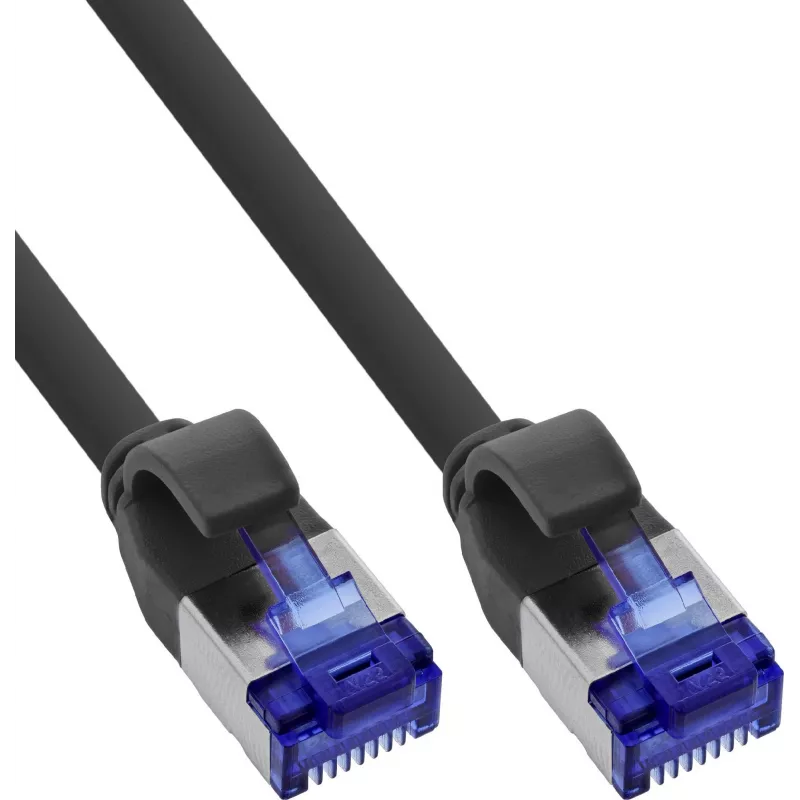

INLINE B-74903S Slim Cat.6A S/FTP LSZH patch kábel, 3m, čierna, balenie 60 ks

Network downtime and slow data transfers can cripple productivity in high-density office environments. The INLINE B-74903S Slim Cat.6A S/FTP LSZH Patch Cable solves these issues by delivering 10 Gigabit Ethernet performance in a space-saving, fire-safe design. This bulk pack of 60 cables ensures your entire team has reliable, high-speed connectivity without cable clutter.

Who is it for

IT administrators, data center managers, and office network installers who need to deploy multiple high-performance connections quickly and safely. Ideal for structured cabling in racks, patch panels, and workstation areas where space is limited and fire regulations are strict.

Main features

• Cat.6A performance with 500 MHz bandwidth supports 10GBASE-T up to 100 meters.
• S/FTP shielding with PiMF (pairs in metal foil) eliminates alien crosstalk and EMI.
• Ultra-slim 3.6 mm outer diameter reduces cable bulk and improves airflow in racks.
• LSZH jacket emits low smoke and zero halogen, meeting IEC 60332-1 fire safety.
• Gold-plated RJ45 connectors (50µm) ensure corrosion resistance and reliable contact.
• Snagless boot protects the locking tab during installation and removal.
• Stranded 28AWG copper conductors offer flexibility for tight bends and cable management.
• Bulk pack of 60 cables provides cost-effective deployment for large projects.

Specifications

• Cable category: Cat.6A (Category 6A)
• Shielding: S/FTP (Screened/Foiled Twisted Pair), PiMF
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Length: 3 meters
• Colour: Black
• Connector type: RJ45 (8P8C), gold-plated 50µm
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor: Stranded copper (Cu), 28 AWG
• Outer diameter: approx. 3.6 mm
• Pinout: TIA/EIA 568B
• Compliance: RoHS, REACH
• Fire rating: IEC 60332-1

Tips

For best performance, avoid sharp bends and maintain the minimum bend radius. Use cable management accessories to keep the slim cables organized. When deploying in high-density patches, consider color-coding with different lengths for easy identification. Always test connections with a cable tester after installation to ensure proper pinout and continuity.
