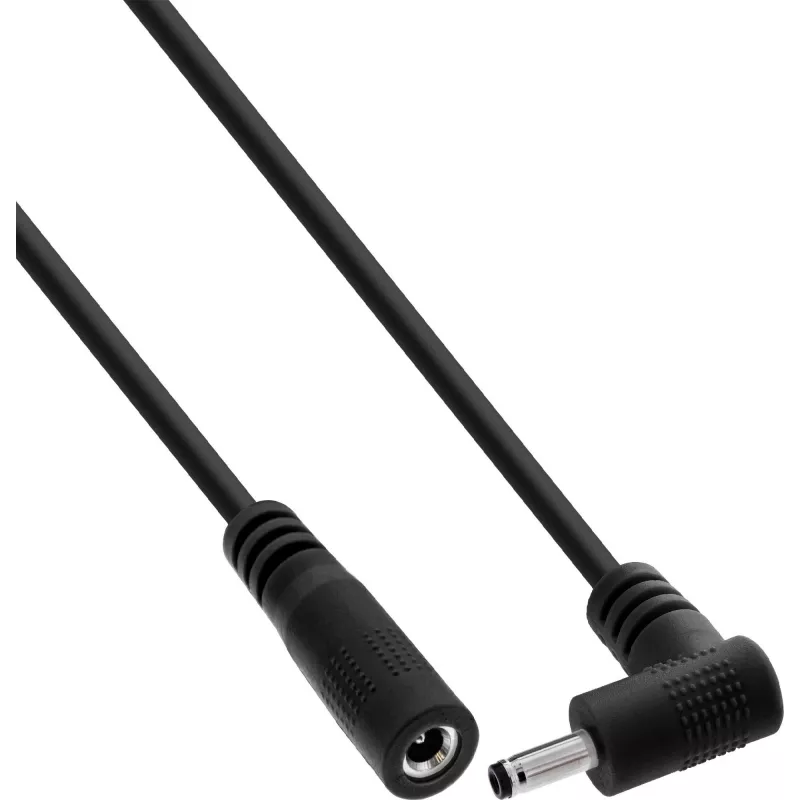

InLine® DC predlžovací kábel, zahnutý konektor samec, 3,5 x 1,35 mm, čierny, 0,2 m

The InLine® DC extension cable with right-angle plug and 3.5 x 1.35 mm connectors extends existing DC power connections. It features a 2-core AWG 18 cable with a PVC sheath and is suitable for 12–24 V DC applications up to 140 W.

Key features

• Angled DC plug and straight DC socket for space-saving connection
• 2-core cable with PVC sheath
• Nickel-plated contact housing
• Unshielded
• Retail packaging

Specifications

• Brand: InLine
• MPN: 26906P
• Product type: Power Cord
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Connector dimensions: 3.5 x 1.35 mm
• Conductor cross-section: AWG 18
• Cable construction: 2-core
• Cable sheath: PVC
• Outer cable diameter: 5.0 ± 0.2 mm
• Contact housing: Nickel-plated
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Cable length: 0.2 m
• Product colour: Black
• Shielding: Unshielded
• UL: No
• Country of origin: China
• Customs tariff number: 8544429090
• EAN: 4043718349531
