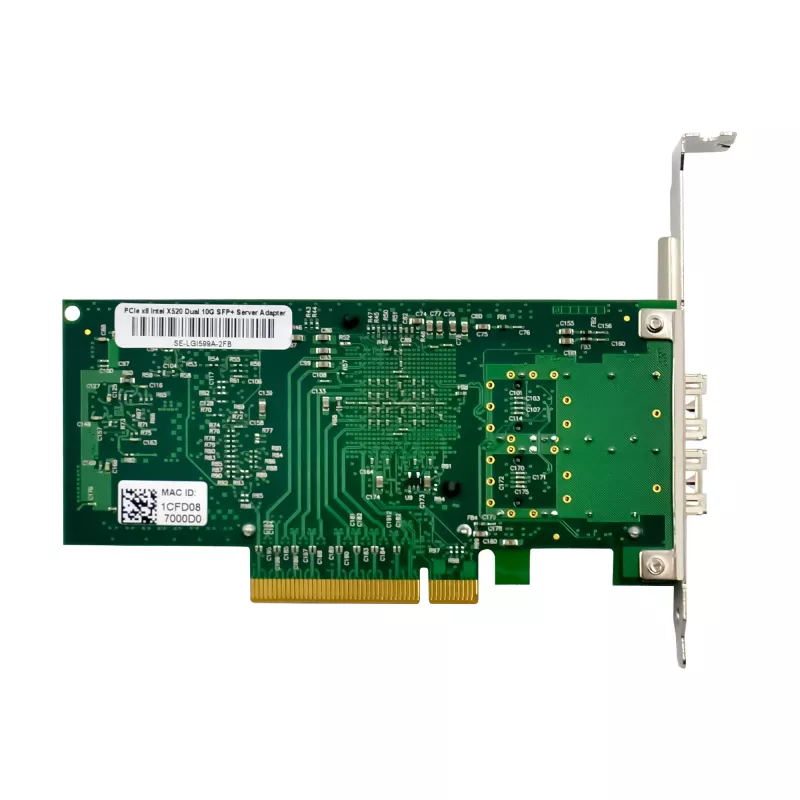

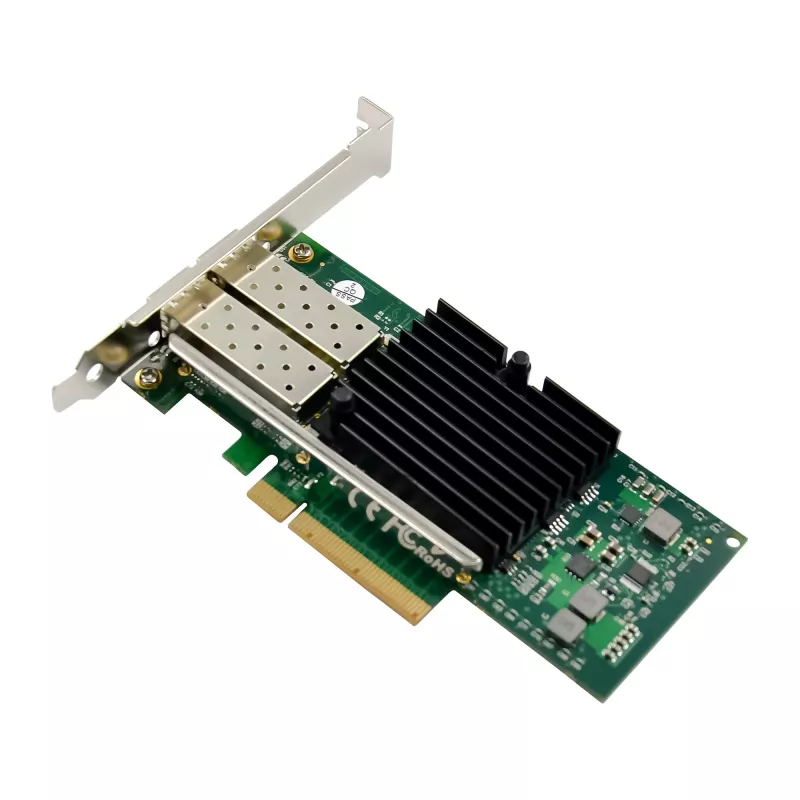

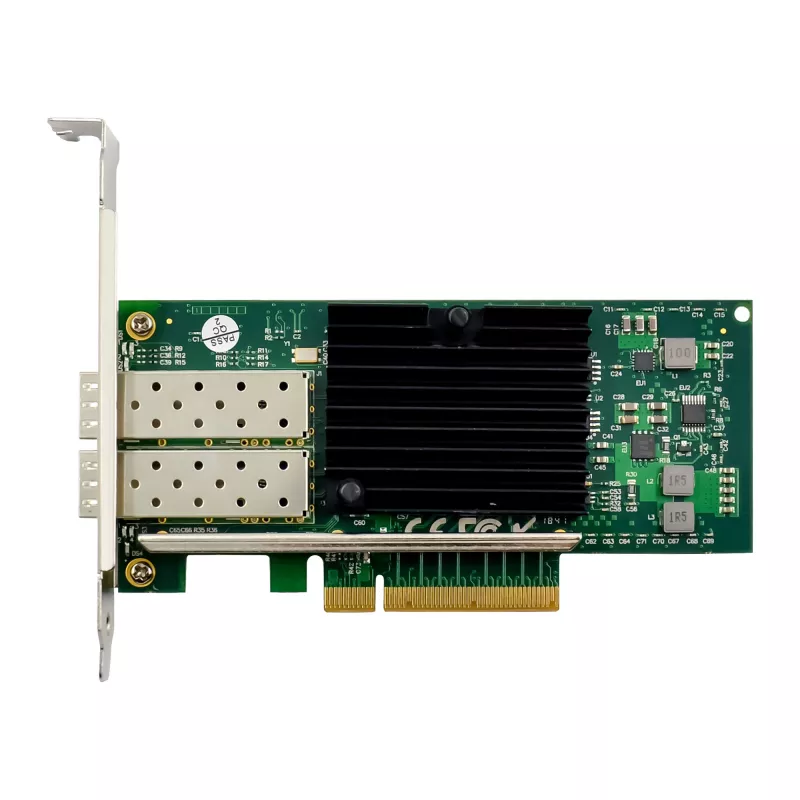

InLine Dual 10 Gigabit sieťová karta, 2x SFP+, PCIe x8, vrát. LP záslepky

Two SFP+ ports for 10GbE via fiber optic flexible through module selection
Intel JL82599EN chipset for stable performance in continuous operation
PCIe x8 interface according to revision 2.0 for professional applications
Supports VLAN, jumbo frames, RSS and virtual machines
Compatible with Windows and Linux

The InLine® Dual 10 Gigabit network card with two SFP+ ports offers the highest performance for fiber-based network connections. Equipped with the Intel JL82599EN chipset, it enables reliable data transmission at up to 10 Gb/s per port - ideal for servers, data centers and virtualized infrastructures.
The card supports common standards such as 10GBASE-SR, -LR, -ER and many more. (IEEE 802.3ae) and offers functions such as VLAN tagging, full duplex flow control, receive side scaling (RSS), jumbo frames up to 16KB and support for virtual machines (VM queues). Interrupt throttling also improves CPU utilization.

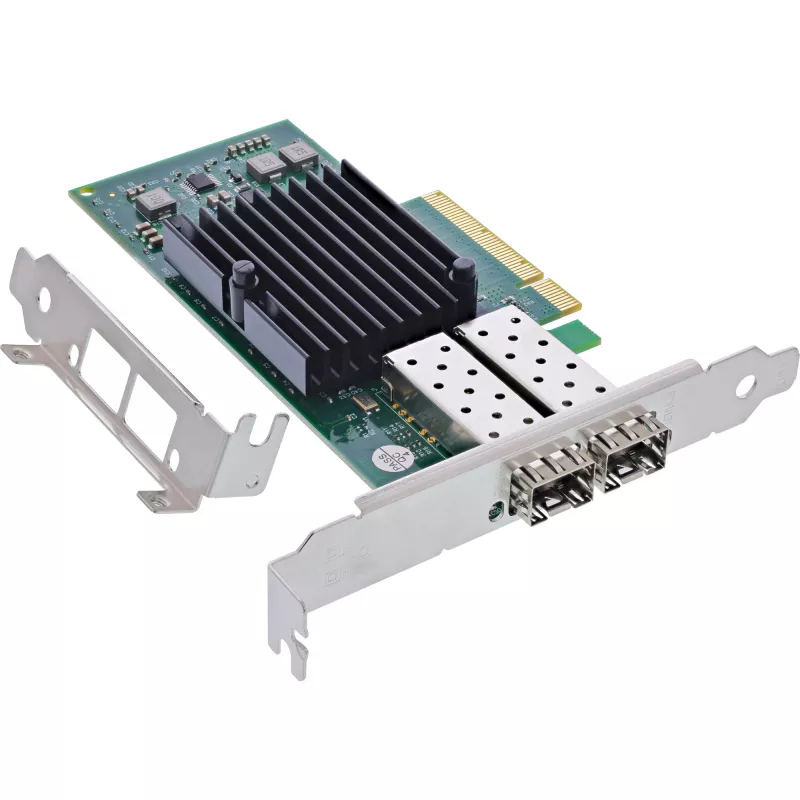

Thanks to the PCIe x8 interface (Rev. 2.0), the card can be flexibly integrated. It is supplied with a low-profile slot bracket – also ideal for compact systems.
Technical specifications:

Chipset: Intel JL82599EN
Interface: PCIe x8, Revision 2.0
Ports: 2x SFP+ (10GbE fiber optic)
Supported standards: IEEE 802.3ae, 802.3x, 802.1Q
Supports: 10GBASE-SR/LR/ER/SW/LW/EW
Network protocols: IPv4, IPv6
Functions: VLAN, RSS, jumbo frames (up to 16KB), checksum offload, VM queue support
Compatible operating systems: Windows 7 or newer, Server 2008 or newer, Linux Kernel ≥ 2.6
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine Dual 10 Gigabit network card, 2x SFP+, PCIe x8, incl. LP bracket. Host interface: PCIe, Output interface: SFP+, Host interface gender: Male. Cooling type: Passive, Country of origin: China. Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server.... Width: 150 mm, Depth: 1.9 mm, Height: 120 mm

How to use

Install the card into an available PCIe x8 (or larger) slot on a powered-down system and secure it to the chassis. Insert compatible SFP+ transceivers into the SFP+ ports and connect fibre-optic cables or other supported modules. Boot the system and install the appropriate drivers for your operating system; verify link status and configure network settings (IP, VLANs, MTU) in the OS network manager or server management tools. For virtualised hosts, enable device queues and RSS where supported by the hypervisor and drivers.

Recommendations

Use certified SFP/SFP+ transceivers that match the intended 10GBase standard (SR, LR, ER, etc.) and ensure firmware/drivers are up to date. Configure MTU and jumbo frames consistently across the network to achieve optimal throughput, and enable RSS and offloading features for CPU load reduction on high-traffic servers.
