InLine inštalačný kábel Cat.7a, S/FTP (PiMF) 4x2x0.58 AWG23 1200MHz B2ca 10m

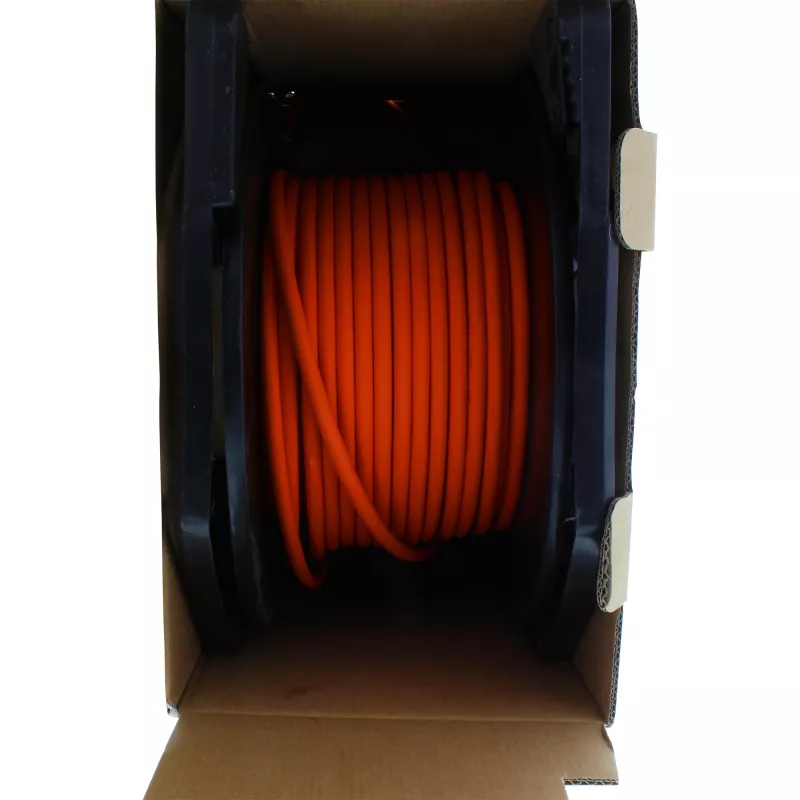

The InLine installation cable Cat.7a S/FTP is supplied rolled on a plastic reel inside a reinforced cardboard drum box that allows easy, tangle-free removal of the required length. The orange sheath is halogen-free (LSZH) and the cable is designed for installation use with a remaining-metre indication on the cable. Available packaging depends on length: the drum box is used for 10 m, 25 m, 50 m, 100 m and 300 m bundles, while 500 m is delivered on a drum.

Advantages

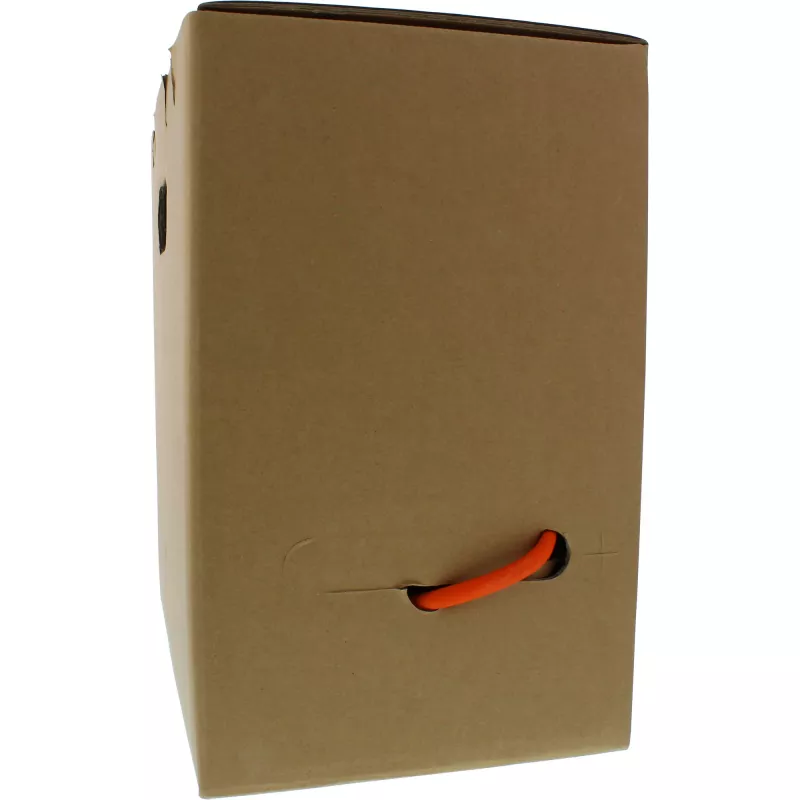

The drum box enables simple handling on site without additional unwinding devices, reduces transport damage and soiling by protecting the cable in cardboard packaging, and lowers cutting costs for small quantities. The packaging is handy, stackable and lightweight, which facilitates transport and allows shipment by parcel service when applicable.

Suitable for

• Fixed installation in buildings and structured cabling systems
• High-speed Ethernet up to 10 Gbit/s
• Environmentally sensitive installations requiring LSZH jacket

Key specifications

• Type: Cat.7a S/FTP installation cable

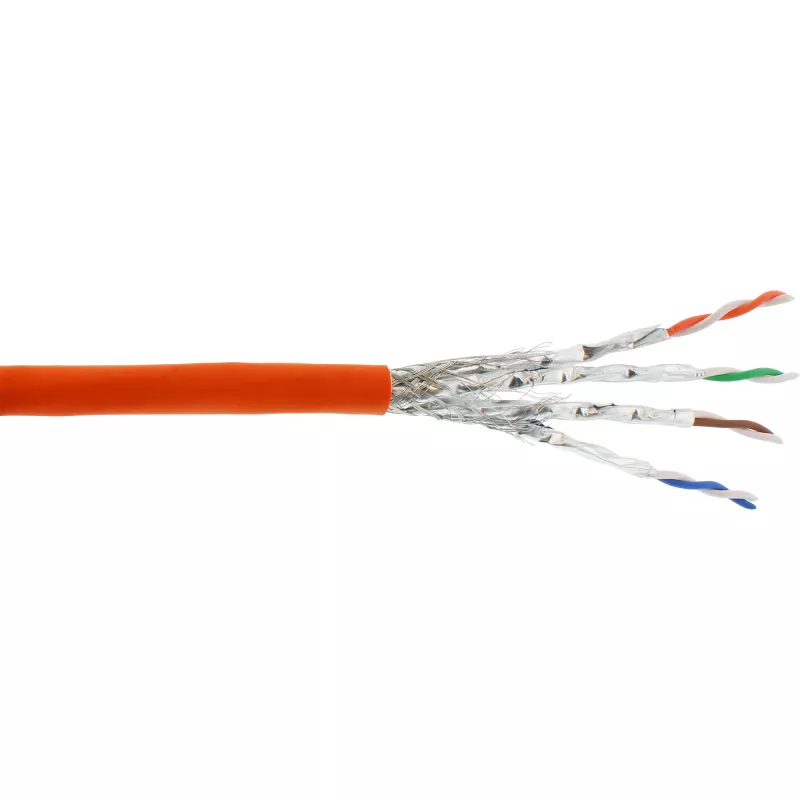

• Construction: 4x2xAWG23/1 PIMF (0.58 mm²), pairs in metal foil with overall braid
• Bandwidth: up to 1200 MHz
• Data rate: suitable up to 10 Gbit/s
• Cores: full copper
• Impedance: 100 Ω
• DC resistance: max. 93.8 Ω/km
• Sheath: halogen-free LSZH, colour orange
• Cable diameter: approx. 7.8 mm
• Temperature ranges: installation 0 °C to 50 °C, operating -20 °C to 60 °C, storage -20 °C to 50 °C
• Fire behaviour: B2ca according to EN 50575:2014/A1:2016

How to use

Unpack the drum box on a stable surface and pull the cable from the reel to the required length, using the remaining-metre indication printed on the sheath to measure. Fix the cable according to local installation standards and route it through conduits or cable trays as required. Terminate with appropriate connectors or patch panels designed for Cat.7a; ensure correct shielding termination for S/FTP construction to maintain performance.

Recommendations

Keep the cable within the specified installation and operating temperature ranges, avoid sharp bends below the cable’s minimum bend radius, and protect the sheath from mechanical damage during installation. For permanent links, follow standards for grounding and shielding to preserve signal integrity.
