InLine KVM prepínač 2 porty DVI-D USB s audiom

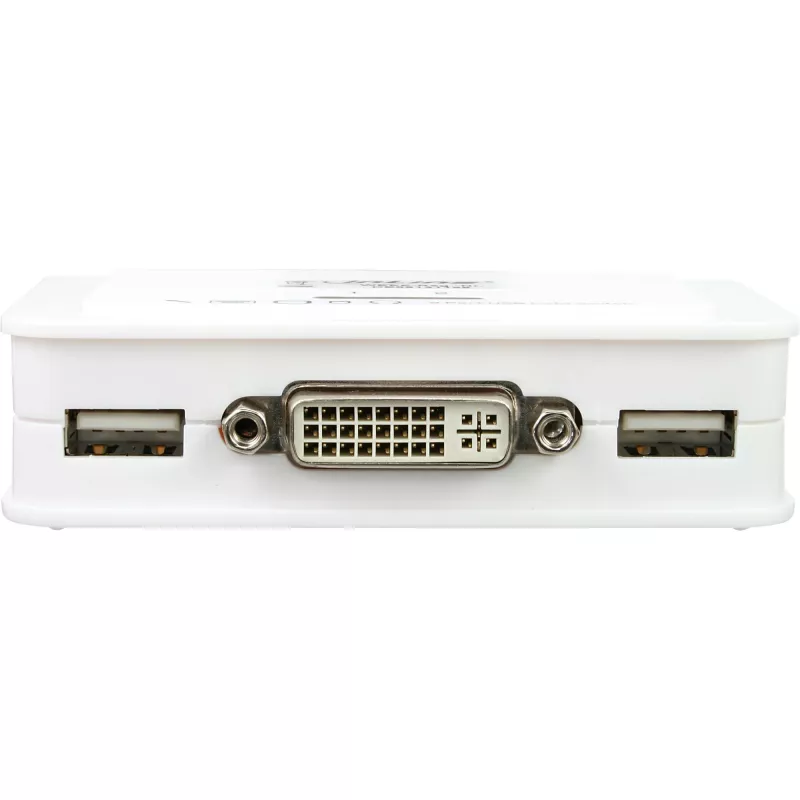

The InLine KVM Switch 2 Port DVI-D USB with Audio InLine is a compact cable KVM switch that lets you control two DVI-D-enabled computers using a single USB keyboard, USB mouse, DVI display, speaker set and microphone. It includes two sets of fixed USB KVM and audio/mic combo cables and a wired QuickSwitch button for fast, physical channel selection. The switch supports DVI-D video and typical USB peripherals, and its cable-integrated design simplifies setup on a desktop or in a small workstation.

Advantages

This 2-port DVI USB KVM provides convenient single-console control of two computers without changing peripherals. The wired QuickSwitch button offers immediate, tactile switching and can be positioned on the desktop using either a soft-magnet base or a hook-and-loop sticker. In addition to the physical button, you can switch between computers using keyboard hotkeys or the supplied Switching Software client for Windows and Mac, which displays the active computer and allows hotkey configuration.

Suitable for

• Small offices and home workstations that require control of two computers from one set of peripherals
• Multimedia setups requiring DVI-D video and audio/microphone switching between two systems
• Environments where quick manual switching is needed via a desktop QuickSwitch button

Key specifications

• Brand: InLine
• Model/MPN: 61613I
• EAN: 4043718196012
• Video port type: DVI-D
• Keyboard / Mouse ports: USB
• Number of computers controlled: 2

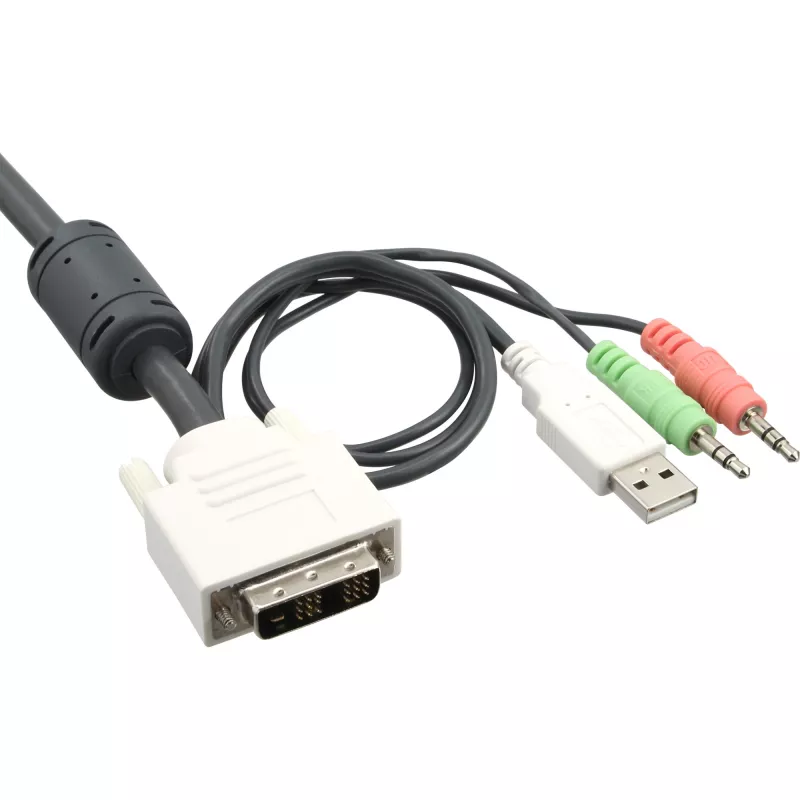

• Included cables: 2 sets of fixed USB KVM + Audio/Mic combo cables
• Switching methods: QuickSwitch button, keyboard hotkeys, Switching Software (Windows, Mac)
• Maximum resolution: 1920 x 1200 @ 60 Hz
• Cable length: 0.9 m
• Colour: White
• Compliance: RoHS

How to use

Connect each computer to the corresponding fixed KVM and audio/mic cables, attach your DVI monitor, USB keyboard and USB mouse to the switch, and connect the speaker set and microphone. Place the QuickSwitch button on the desktop using the soft-magnet base or hook-and-loop sticker if desired. Use the QuickSwitch button, keyboard hotkeys or install the provided Switching Software on each computer (Windows or Mac) to switch the active console. The software shows the active port in the system tray and allows you to configure hotkeys.

Recommendations

For stable video performance, use quality DVI-D cables and set the connected display to a supported resolution up to 1920 x 1200 @ 60 Hz. Install the Switching Software on both computers if you prefer on-screen status and hotkey configuration. Keep the QuickSwitch button within easy reach for frequent manual switching.
