InLine KVM switch, 2-portový, USB-C na DisplayPort 1.2, 4K, audio, integrovaný kábel

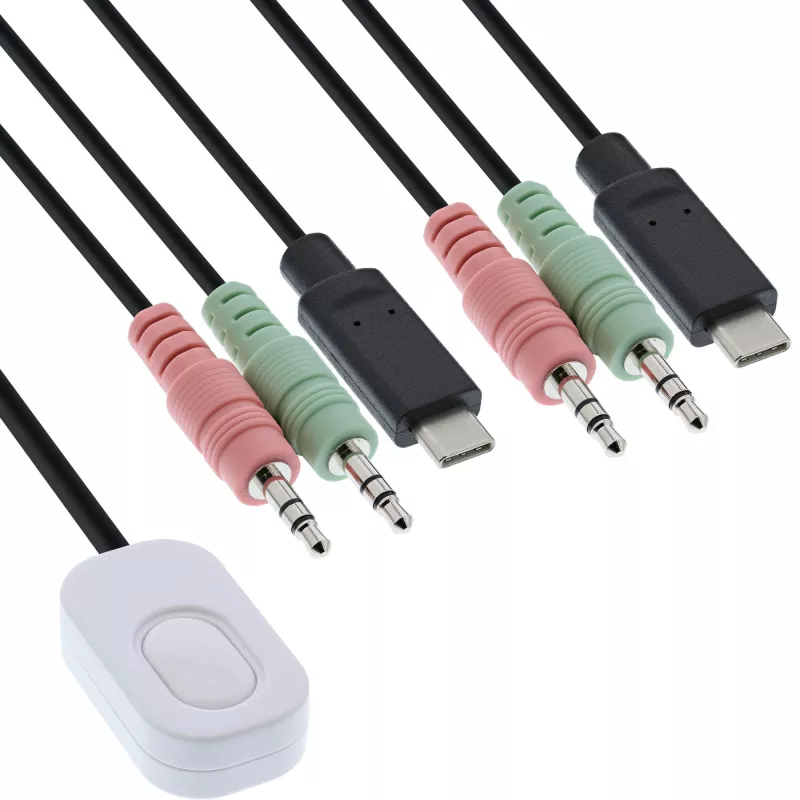

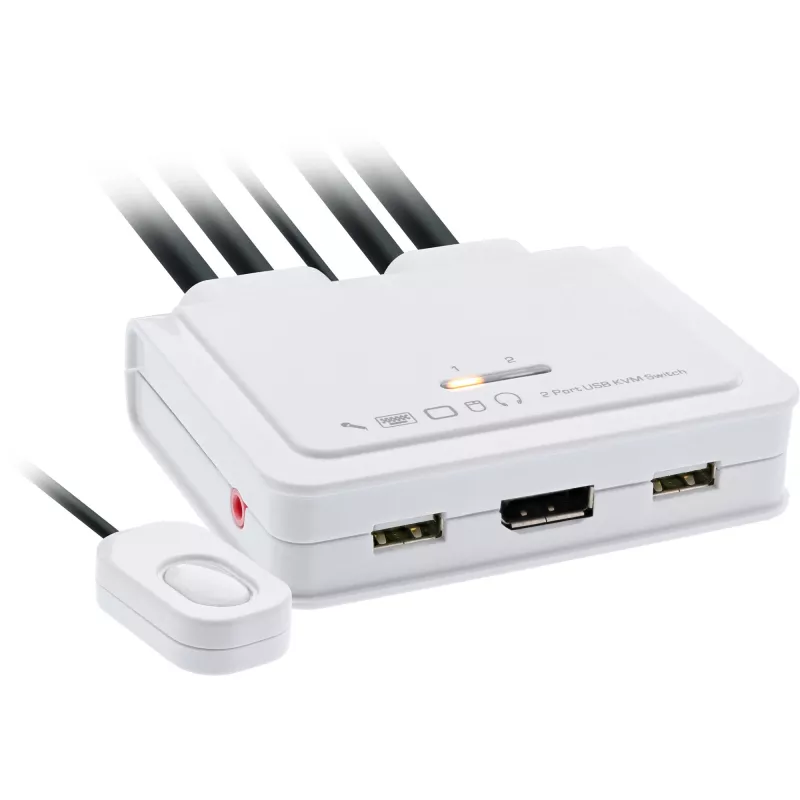

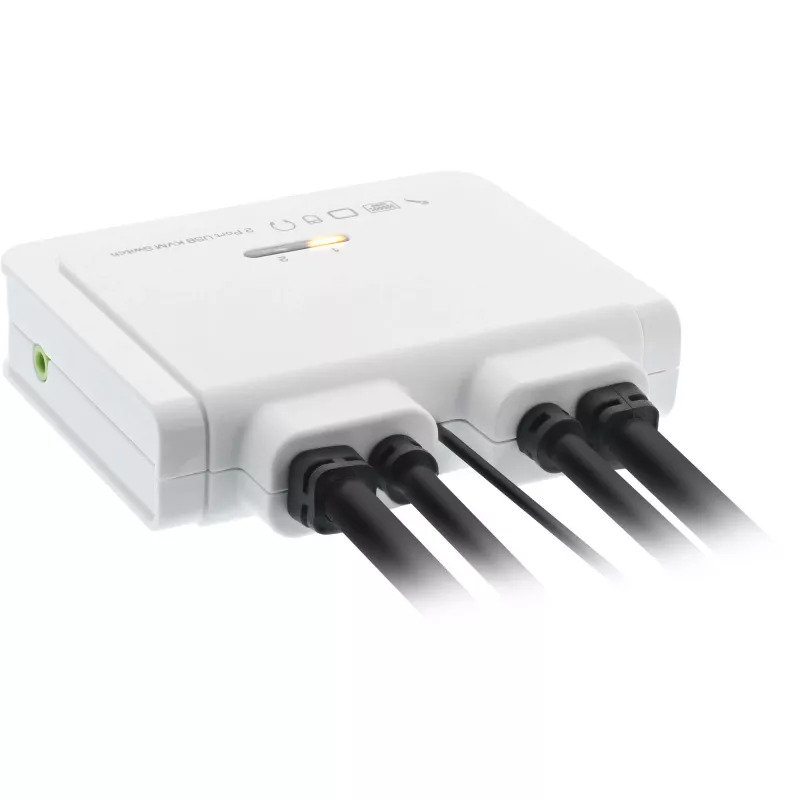

The InLine® 63614I KVM Switch lets you control two computers with USB Type-C interfaces from a single console that includes a DisplayPort monitor, USB keyboard and mouse, and audio input/output. It comes with two fixed KVM lead sets (USB Type-C with combined audio/microphone) and supports DisplayPort resolutions up to 3840 x 2160 at 60 Hz. The console includes a wired quick-switch button for immediate manual switching between the connected computers. Note that connected computers must support USB-C DisplayPort Alternate Mode for video output.

Advantages

The integrated 2x USB Type-C fixed cables simplify setup and reduce cable clutter while preserving support for 4K 60Hz video over DisplayPort. Two USB 2.0 hub ports provide full driver support for keyboards and mice with advanced functions and also accommodate other high-speed USB devices such as storage drives. The wired quick-switch button ensures reliable, immediate switching without software. Compact black housing and 1.5 m cable length give flexible placement at a workstation.

Suitable for

• Office and home office workstations that need to control two computers from one console
• Environments requiring 4K DisplayPort video switching between USB-C computers
• Setups that need USB peripherals (keyboard, mouse, USB storage) shared between two systems

Key specifications

• Brand: InLine
• Model: 63614I
• Ports: 2 × USB-C (fixed KVM cables with audio/mic combo), Console: DisplayPort, 2 × USB 2.0 (keyboard/mouse hub)
• Video: DisplayPort 1.2, up to 3840×2160 @ 60 Hz
• Supported systems: Computers with USB-C that support DisplayPort Alternate Mode
• Number of computers controlled: 2
• Colour: Black
• Cable length: 1.5 m (integrated cables)

How to use

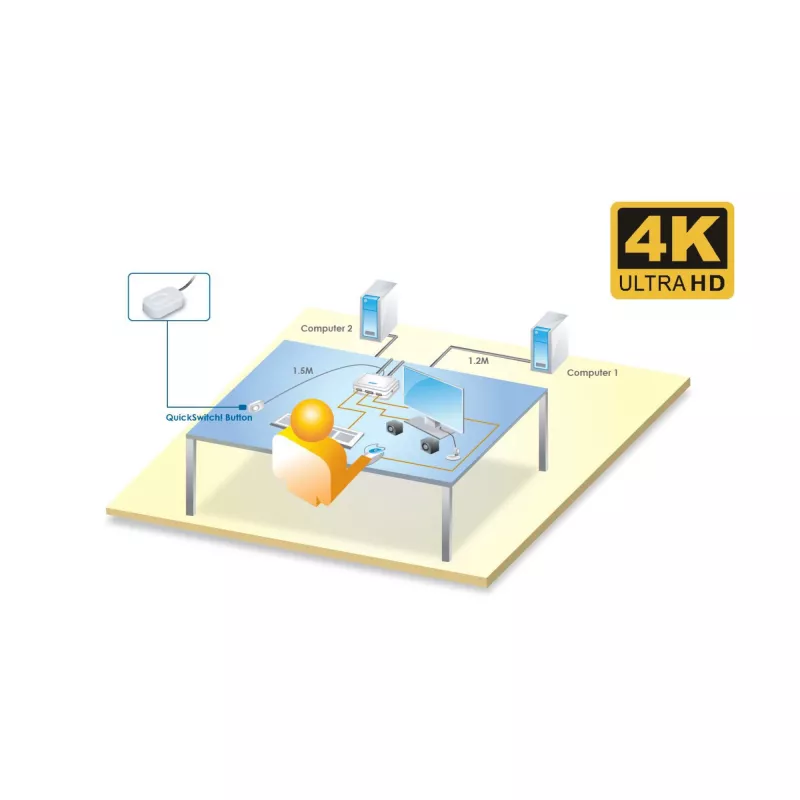

Connect each computer to the KVM switch using the supplied USB-C combo cables, ensuring each computer’s USB-C port supports DisplayPort Alternate Mode. Connect your monitor to the console DisplayPort, and plug the keyboard and mouse into the USB 2.0 hub ports on the console. Use the wired quick-switch button on the console to switch control between the two connected computers. The USB 2.0 hub ports also accept other USB devices such as external drives; however, hotkey switching from devices connected via the hub is not supported.

Recommendations

Designed for office and home office use, this KVM switch is suitable for general productivity and monitoring tasks. It is not intended for gaming peripherals with programmable special keys or for monitors requiring refresh rates of 120 Hz or higher. Ensure connected computers support USB-C DisplayPort Alternate Mode for video output and connect advanced input devices directly to the designated console USB port when hotkey functionality is required.
