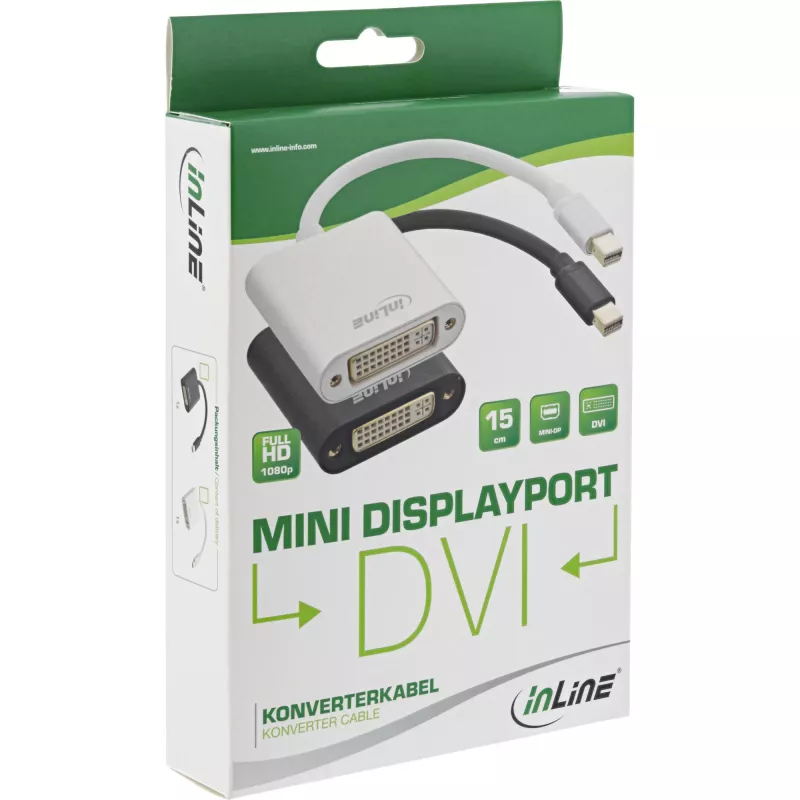

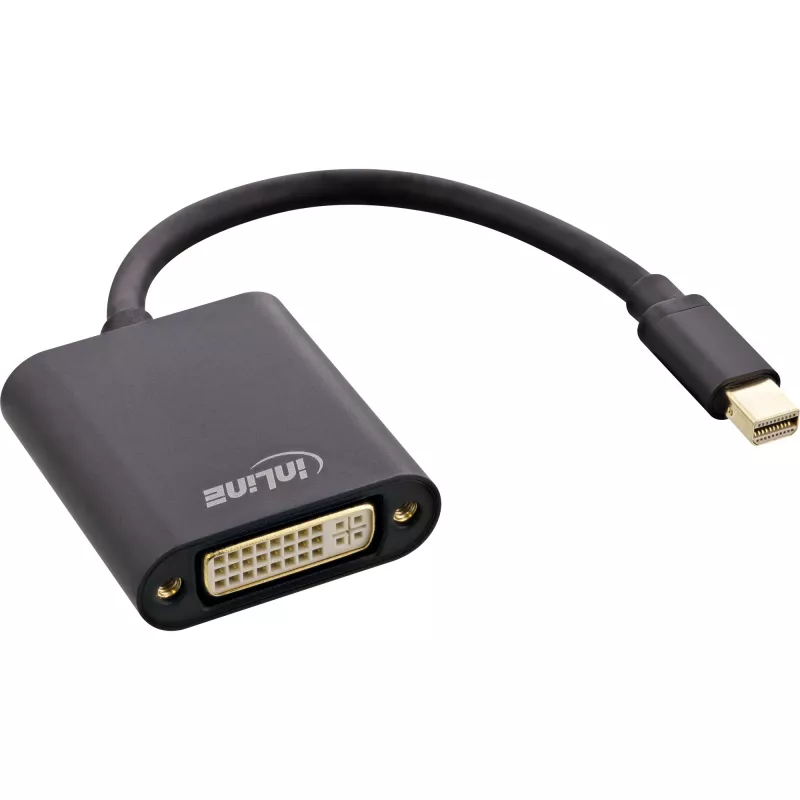

InLine Mini DisplayPort konektor samec / DVI-D 24+1 adaptér konektor samica hliník čierny, 0,15 m

This InLine Mini DisplayPort male to DVI-D 24+1 female adapter passively converts a Mini DisplayPort video output to a DVI-D digital input at Full HD resolution. It is intended to transfer video from a PC, laptop or tablet with a Mini DisplayPort interface to a monitor or projector with a DVI-D connector. The compact 0.15 m aluminum construction provides a portable and reliable connection while maintaining digital video quality.

Advantages

The adapter requires no external power and supports direct passive conversion from Mini DisplayPort to DVI-D. Its aluminum housing offers increased durability and a compact 0.15 m length reduces cable clutter and improves portability. The DVI-D 24+1 connector ensures a digital-only connection suitable for Full HD video signals.

Suitable for (tasks / use cases)

• Connecting a laptop or desktop with Mini DisplayPort output to a DVI-D monitor
• Outputting video from a tablet with Mini DisplayPort to a DVI-D projector
• Use in home offices, meeting rooms or classrooms where DVI displays are used

Key specifications

• Connector 1: Mini DisplayPort (male)
• Connector 2: DVI-D 24+1 (female)
• Length: 0.15 m
• Housing material: Aluminum
• Colour: Black
• Direction: Mini DisplayPort to DVI-D (passive, one-way)

How to use

Plug the Mini DisplayPort male connector into the source device (PC, laptop or tablet). Connect the DVI-D female end to a DVI-D cable that leads to the monitor or connect the monitor’s DVI-D cable directly to the adapter. Switch on both devices and select the appropriate input on the display. The adapter performs passive conversion and does not support conversion from DVI-D to Mini DisplayPort.

Recommendations

Ensure the source device outputs a compatible Mini DisplayPort video signal. Because the adapter is passive and directional, it cannot convert a DVI-D source to Mini DisplayPort. Use a short DVI-D cable or direct connection to minimize signal loss; avoid excessive bending of the adapter and cable to preserve the aluminum housing and connectors.
