InLine Mini-SAS-HD kábel SFF-8643 na SFF-8643, obojstranne uhlový, Sideband, 1 m

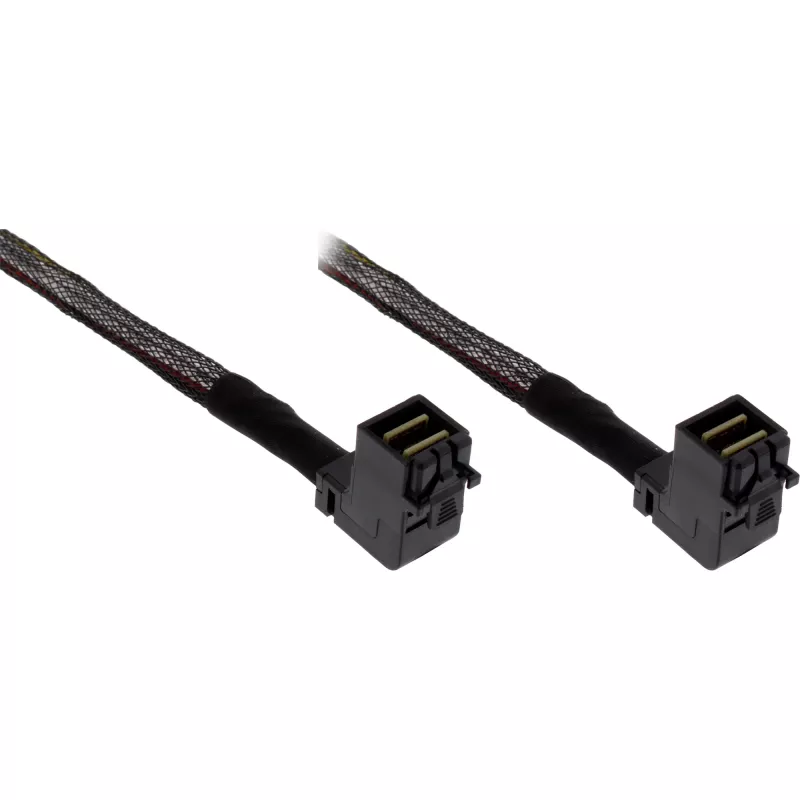

InLine Mini SAS HD cable with SFF-8643 connectors on both ends, each angled to facilitate connections in tight racks and high-density storage environments. The cable supports Sideband signaling and is intended for reliable data transmission between servers, RAID controllers, host bus adapters (HBAs) and backplanes. With a 1 m length, it provides a balance between reach and neat cable management in enclosures and storage arrays that require Mini SAS HD 4i interfaces.

Advantages

The angled SFF-8643 connectors reduce strain and allow easier routing in confined spaces while maintaining a secure connection. Sideband support enables control and management signals to travel alongside data channels, useful for enclosures and backplane systems that rely on auxiliary signaling. The cable construction is optimized for SAS environments to maintain signal integrity and consistent performance over short-to-medium rack distances.

Suitable for

When it may not be suitable

This 1 m Mini SAS HD cable is not intended for external or weather-exposed use; it is designed for internal data center and rack applications. It may not be suitable when longer reach is required or when a straight connector orientation is necessary to match a specific port layout.

Key specifications

How to use

Identify compatible Mini SAS HD (SFF-8643) ports on the controller, HBA or backplane. Align the angled connectors with the port orientation to avoid bending the cable excessively; insert until the connector seats securely. Route the cable to minimize sharp bends and avoid crossing power cables or sources of electromagnetic interference. For removal, press any release mechanism on the connector (if present) and pull straight out to prevent damage to the port or cable.

What to consider before purchase

Recommendations

Use this InLine Mini SAS HD cable in internal server or storage installations where angled SFF-8643 connectors and sideband support simplify routing and enable backplane control signals. Keep cable runs short, avoid tight radii, and maintain separation from high-power cabling to preserve signal integrity.
