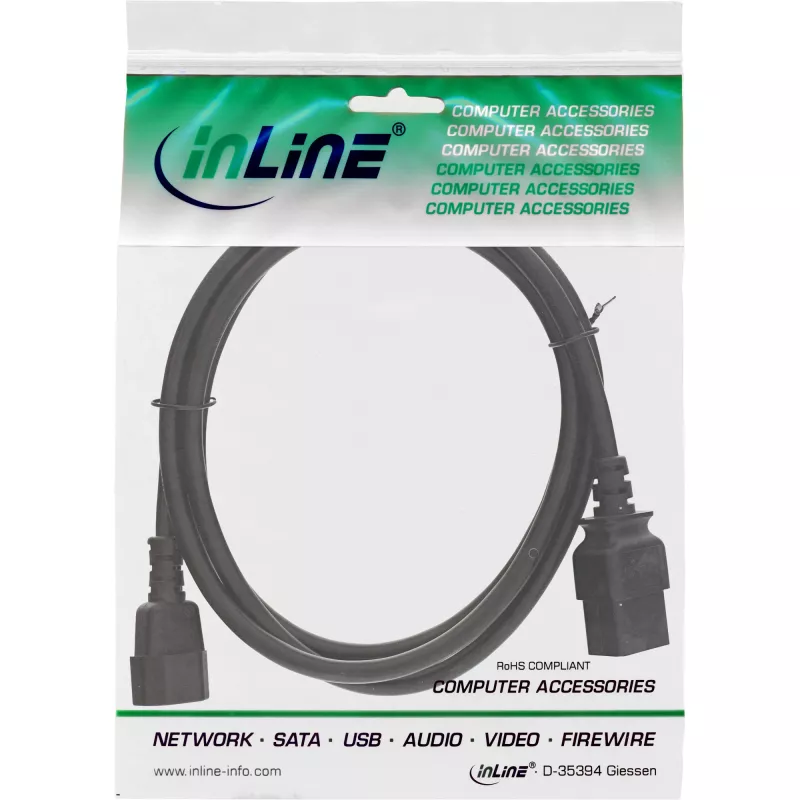

InLine napájací adaptérový kábel, IEC-60320 C14 na C19, 3x1,5mm², max. 10A, 0,5m

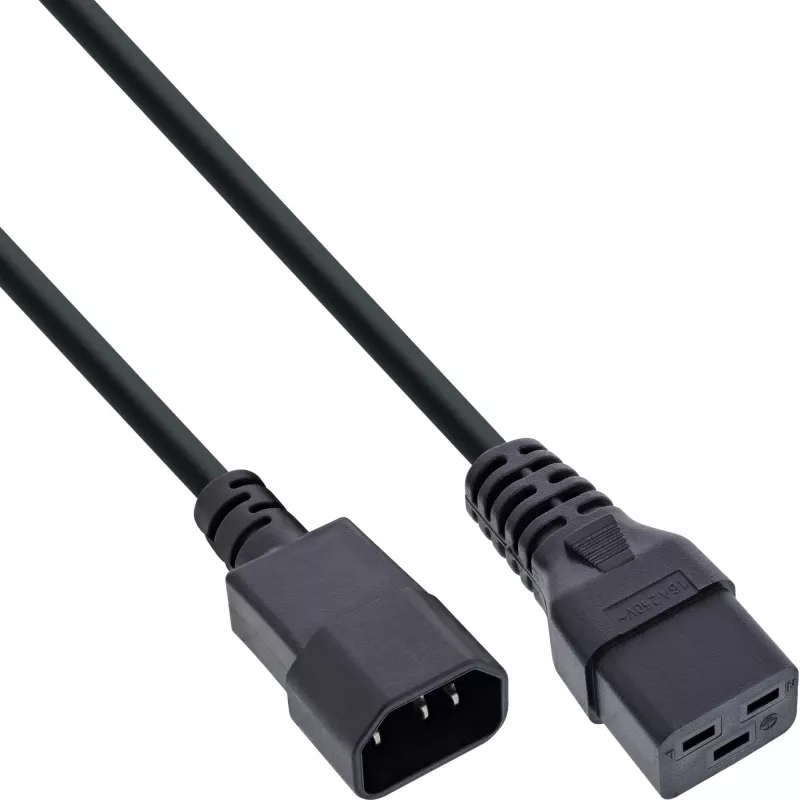

This InLine Power adapter cable IEC-60320 C14 to C19 3x1.5mm² max 10A 0.5m provides a short, flexible connection between devices and power distribution units using standard IEC-60320 connectors. The cable is 0.5 m long, fitted with a C14 coupler on one end and a C19 coupler on the other, and uses a 3x1.5mm² conductor with H05VV-F construction to deliver up to 10 A in typical mains installations. The black finish and compact length make it suitable for tidy rack or desktop setups where a direct, reliable power link is required.

Advantages

The adapter offers compatibility with devices and PDUs that accept C14 and C19 terminations, allowing straightforward connection without modification. Its H05VV-F cable type balances flexibility and durability for short runs, while the 3x1.5mm² conductor supports stable current transfer up to the specified 10 A. The short 0.5 m length reduces excess cable clutter and simplifies routing in constrained spaces.

Suitable for

• Connecting a device with a C19 inlet to a power source with a C14 outlet
• Short interconnects inside server racks and network cabinets
• Desktop or AV equipment requiring a compact IEC-60320 adapter
• Temporary power rearrangements during maintenance or testing

Key specifications

• Cable length: 0.5 m
• Connector 1: C14 coupler
• Connector 2: C19 coupler
• Conductor configuration: 3 x 1.5 mm²
• Maximum current: 10 A
• Cable type: H05VV-F
• Colour: Black

How to use

Before use, verify that the connected equipment and power source are compatible with a 10 A maximum current and that the device inlet matches the C19 connector. With mains power switched off, insert the C19 end into the device inlet and the C14 end into the PDU or power source outlet until both connectors engage securely. After connection, restore power and check for normal operation. Disconnect by switching off power and pulling the connectors straight out to avoid strain on the cable.

Recommendations

Do not exceed the rated 10 A current and avoid using the cable where higher temperatures or chemical exposure could damage H05VV-F insulation. For permanent installations or loads above 10 A, choose a cable with higher-rated conductors and appropriate certification. Route the 0.5 m cable to avoid sharp bends and mechanical strain, and inspect connectors periodically for signs of wear or looseness.
