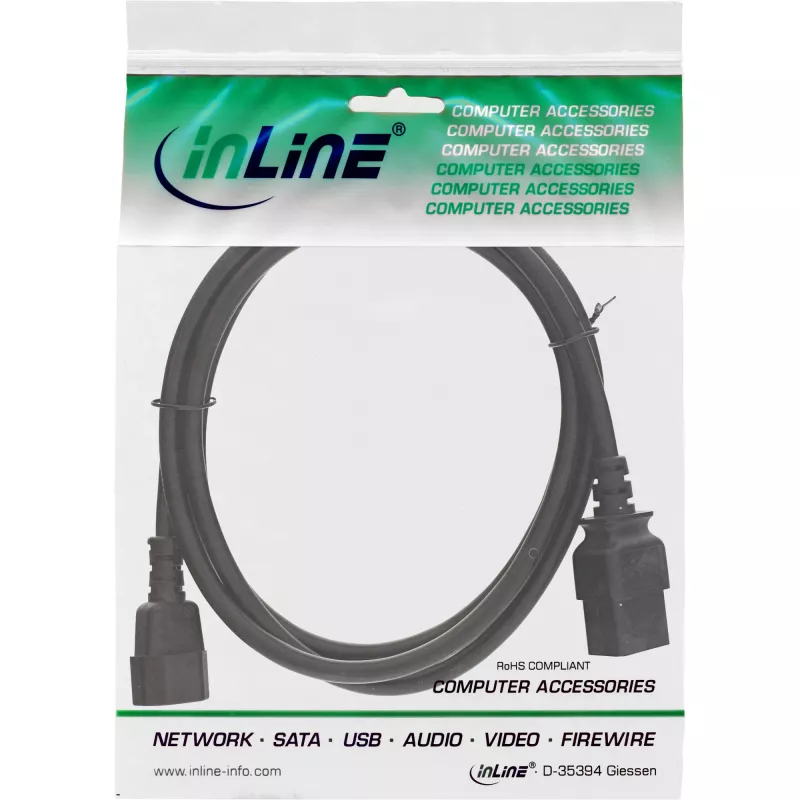

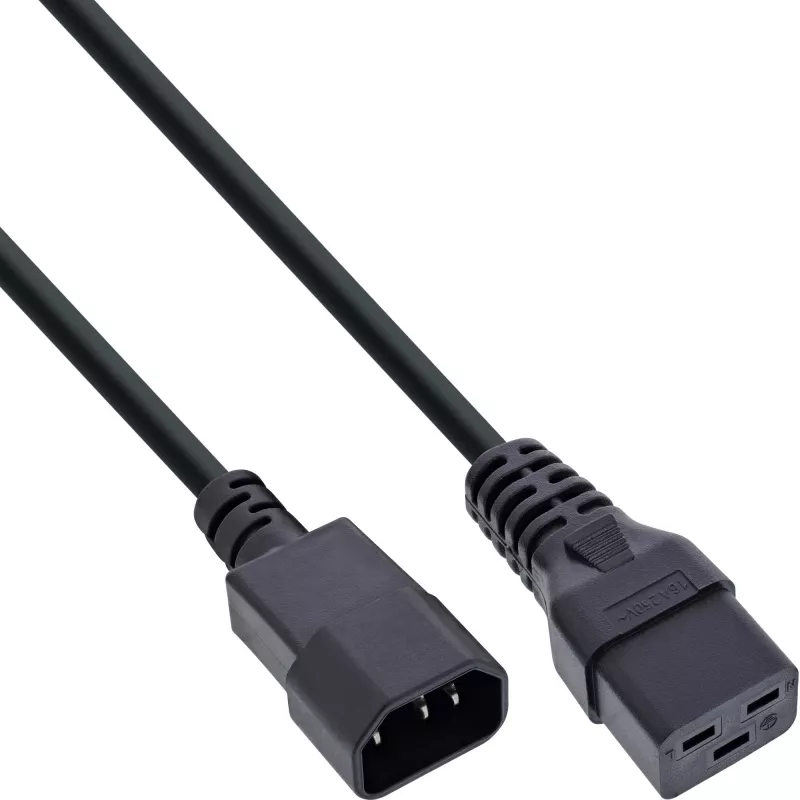

InLine napájací adaptérový kábel, IEC-60320 C14 na C19, 3x1,5mm², max. 10A, 2m

The InLine Power adapter cable IEC-60320 C14 to C19 16659G is a 2 meter black mains lead designed to connect equipment with a C19 inlet to a standard C14 power source. Constructed with 3x1.5 mm² conductors and rated for up to 10 A, the cable meets requirements for many server, UPS and rack-mount applications where a C19 input is required. Its IEC-60320 terminations provide a secure fit and stable power flow for high-performance IT and industrial equipment.

Advantages

This power adapter cable offers a higher-current connector pair suited to devices with larger power entries, while keeping a compact, flexible design for easy routing in racks and cabinets. The 2 m length balances reach and cable management, and the black jacket provides a neutral appearance that integrates with typical data-centre and office environments. The cord’s conductor cross-section and connectors are selected to ensure consistent voltage delivery at the rated current.

Suitable for

• Connecting servers and blade enclosures to C14-sourced power
• Linking UPS output to equipment with C19 inlets
• Powering rack-mounted network and telecommunications hardware
• Temporary or permanent installations in data centres and server rooms

Key specifications

• Cable length: 2 m
• Conductors: 3 x 1.5 mm²
• Maximum current rating: 10 A
• Connector A: IEC-60320 C14 coupler
• Connector B: IEC-60320 C19 coupler
• Colour: Black

How to use

Ensure both the power source and the connected device are switched off before connecting the cable. Insert the C14 coupler into the corresponding C14 inlet of the power distribution unit or power supply, and plug the C19 connector into the device’s C19 inlet until it seats firmly. Route the cable to avoid sharp bends, pinch points and heat sources, and secure it as needed to prevent strain on the connectors. After connections are checked, power the systems on and verify correct operation.

Recommendations

Use this cable only within its rated current and ambient temperature limits. Do not modify the connectors or cable assembly. Inspect the cable periodically for damage to the jacket or connectors and replace it if any wear or exposed conductors are found. For permanent installations in racks, use cable management accessories to reduce mechanical stress and maintain airflow.
