InLine napájací adaptérový kábel, IEC-60320 C20 na C13, 3x1,5mm², max. 10A, 3m

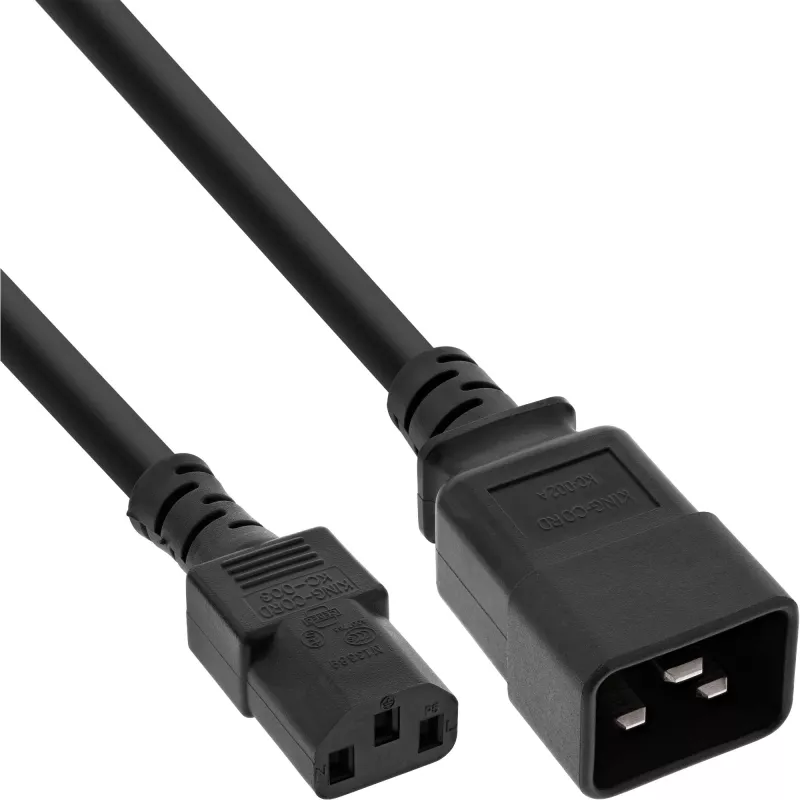

This InLine power adapter cable features IEC-60320 C20 to C13 connectors and a 3x1.5mm² conductor cross-section. Rated for a maximum current of 10A and supplied in a 3 m length, the cable provides a reliable connection between a C20 outlet and equipment with a C13 inlet. The black jacket and standard IEC-60320 terminations are suitable for data center, office and industrial equipment where a longer reach is required.

Advantages

The cable combines a standard IEC-60320 connector pairing (C20 to C13) with a robust 3x1.5mm² conductor, enabling safe operation up to 10A. The 3 m length reduces the need for additional extensions and allows flexible positioning of connected devices. The black outer sheath offers discrete appearance and basic mechanical protection suitable for everyday professional use.

Suitable for

• Connecting power supplies or PDUs with a C20 outlet to devices with a C13 inlet
• Data center racks and server cabinets where extended reach is needed
• Office equipment, monitors and workstations with IEC C13 sockets
• Laboratory and workshop equipment requiring a reliable IEC power connection

Key specifications

• Connector A: IEC-60320 C20
• Connector B: IEC-60320 C13
• Conductor size: 3 x 1.5 mm²
• Maximum current: 10 A
• Length: 3 m
• Colour: Black

How to use

Ensure both the power source and the connected device are switched off before connecting the cable. Insert the C20 end into the corresponding C20 socket of the power source or PDU, and plug the C13 end into the device's IEC inlet. Verify a secure fit at both ends and route the cable to avoid sharp bends or mechanical strain. After making the connections, power on the source and then the device according to normal startup procedures.

Recommendations

Use the cable within its rated current (10A) and in environments that do not exceed the cable's intended mechanical or thermal limits. Avoid running the cable across hot surfaces or through areas with heavy foot traffic without additional protection. Periodically inspect connectors and the jacket for damage and replace the cable if any wear or exposed conductors are found.
