InLine nástenný držiak pre TFT / LED / plazma 81 - 140 cm 32 - 55" max. 75 kg

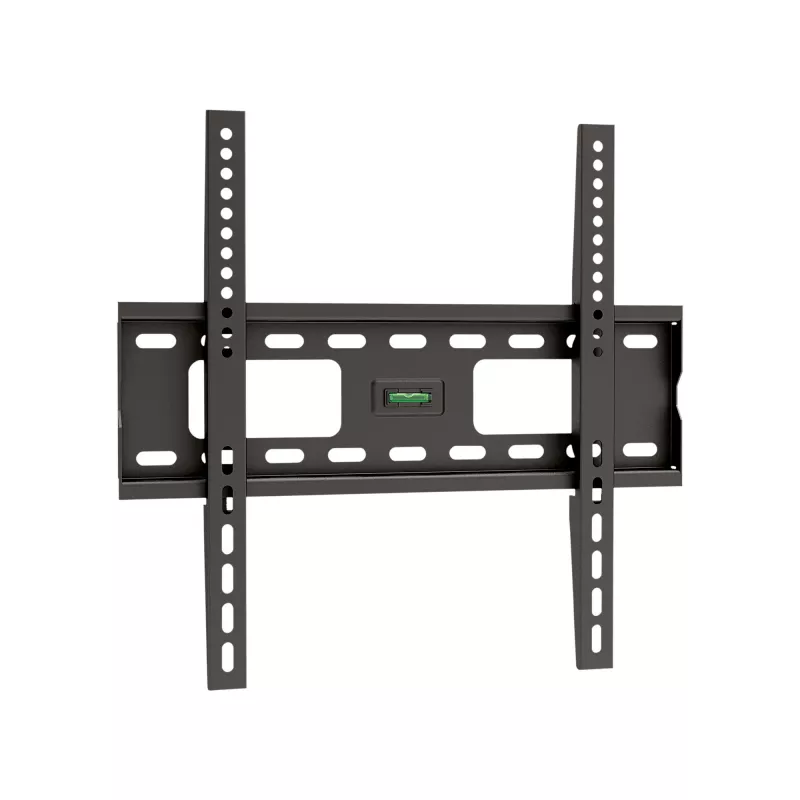

The InLine Wall Bracket 23102A is a fixed-to-tilt mounting solution compatible with TFT, LED and Plasma screens from 32" to 55" (81–140 cm). It supports displays up to 75 kg and provides an adjustable distance from the wall between 3.6 cm and 36 cm, enabling both low-profile and extended installations. The bracket comes in a black finish designed to blend with most interiors and is intended for residential or commercial mounting of flat-panel displays.

Advantages

The wall bracket offers a high load capacity of up to 75 kg, suitable for larger screens within the 32"–55" range. Its variable extension (3.6–36 cm) allows flexible placement of the screen for optimal viewing and access to rear connections. The black finish minimizes visual distraction and complements modern AV setups. The mounting design supports secure attachment to standard wall structures, facilitating a stable installation.

Suitable for

Key specifications

How to use

Select a suitable mounting location on a structural wall and verify that it can support the combined weight of the bracket and display. Position the bracket plate on the wall at the desired height, mark anchor points, and install appropriate wall anchors or bolts for the wall type. Attach the bracket arms or mounting plate to the display following the screen manufacturer's VESA guidance, then lift and secure the screen onto the wall bracket, adjusting the extension between 3.6 cm and 36 cm as required. Confirm that all fasteners are tightened and the display is level before use.

Recommendations

Use suitable wall anchors or structural fixings rated for the specified maximum load and check the display’s VESA pattern and weight before installation. If uncertain about wall structure or load capacity, consult a professional installer. Regularly inspect mounting points and fasteners for security and tighten as necessary.
