InLine optický simplexný kábel, FTTH, LC/APC8° na LC/APC8° 9/125µm OS2 50m

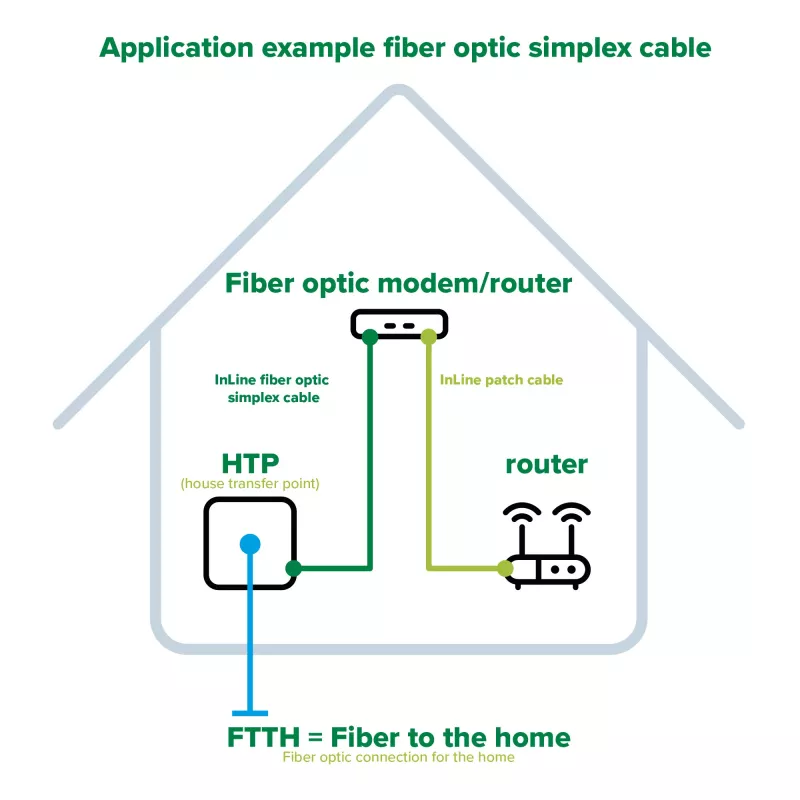

Telecommunications companies such as Vodafone, Deutsche Glasfaser and Telekom are increasingly enabling fibre connections for private households in Germany. Fibre to the home (FTTH) cables from InLine connect the house transfer point with the fibre optic modem and ensure a reliable fibre optic connection in your home.
Unfortunately, pre-installed cables from providers are often of poor quality and sometimes only 1.6mm thick. If the cable breaks, even the fastest fibre optic connection will not help. InLine FTTH cables are 3mm thick and have a particularly stable structure. Additional reinforcement in the form of a stainless steel spiral tube guarantees a long-term, reliable fibre optic connection in private homes. The neutral sheath colour white is suitable for inconspicuous installation in visible living areas. Different lengths up to 50m allow you to remain flexible, even if the position of the modem changes.

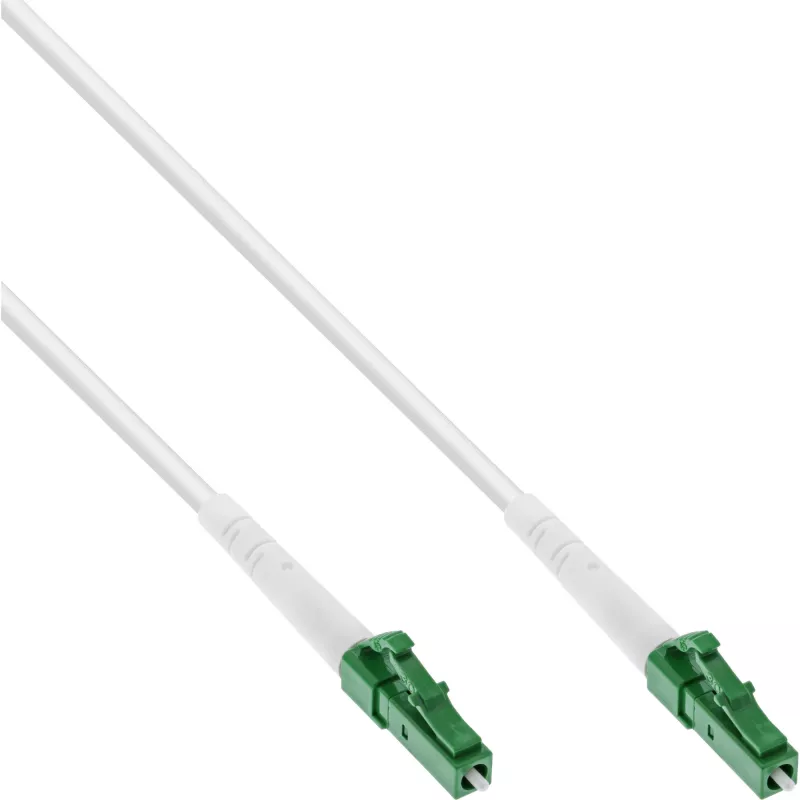

InLine Fiber Optical Simplex Cable, FTTH, LC/APC8° to LC/APC8° 9/125µm OS2 50m. Cable length: 50 m, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm

How to use

Route the InLine FTTH cable from the house transfer point to the optical modem (ONT) or patch panel, avoiding sharp bends and kinks; the minimum bend radius specified for single-mode fiber should be observed to prevent increased attenuation. Clean the LC/APC connector end-faces before mating using appropriate fiber cleaning tools and mate connectors to LC/APC ports with firm but gentle pressure until latched. For permanent installations, secure the cable along the route with suitable clips or conduits and allow service loops where needed for future maintenance or movement of equipment.

Recommendations

Do not exceed recommended bend radius or apply excessive tensile force during installation. Use a fiber inspection scope and cleaning wipes to verify connector end-face quality; verify optical performance with a test report or appropriate test equipment after installation. For splicing, strip and handle the armoured tube according to standard fiber preparation procedures and protect fusion splices with heat-shrink sleeves or splice trays.
