InLine vonkajší inštalačný kábel S/FTP PiMF Cat.7a AWG 23 meď 1200 MHz PE, 100m

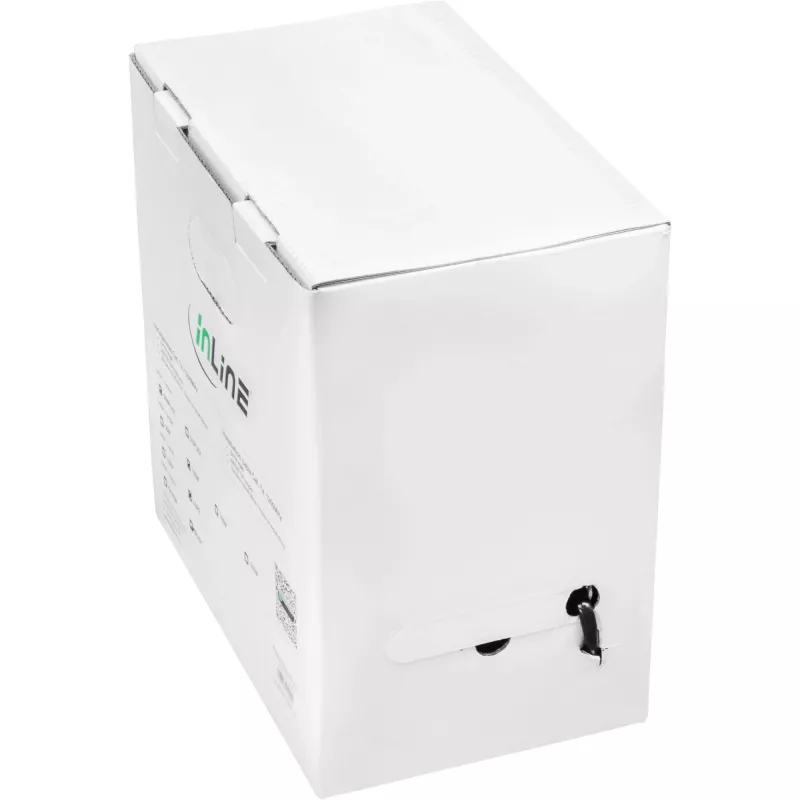

The InLine Outdoor Install. Cable S/FTP PiMF Cat.7a AWG 23 is supplied wound on a plastic roller fixed inside a reinforced cardboard drum box, allowing convenient dispensing of the required cable length and protected storage during transport and on site. The sheath is UV-resistant LDPE in black and the cable is designed for outdoor installation with full copper conductors and printed remaining-metre markings for easy measurement.

Advantages

The drum-box packaging enables easier handling and rolling on site without additional tools, reduces handling costs for small cable lengths and protects the cable from pollution and mechanical damage. The packaging is lightweight and stackable, allowing shipment with standard parcel services and simplifying storage and logistics.

Suitable for

• Outdoor network installations
• Structured cabling requiring Cat.7a performance
• Runs up to 10 Gbit Ethernet
• On-site installation jobs where quick dispensing and protection of cable is needed

Key specifications

• Cable type: S/FTP PiMF installation cable, Cat.7a
• Conductor: full copper, 4x2xAWG23/1
• Bandwidth: up to 1200 MHz
• Data rate: suitable for up to 10 GBit
• Impedance: 100 Ω
• DC resistance: max 87 Ω/km

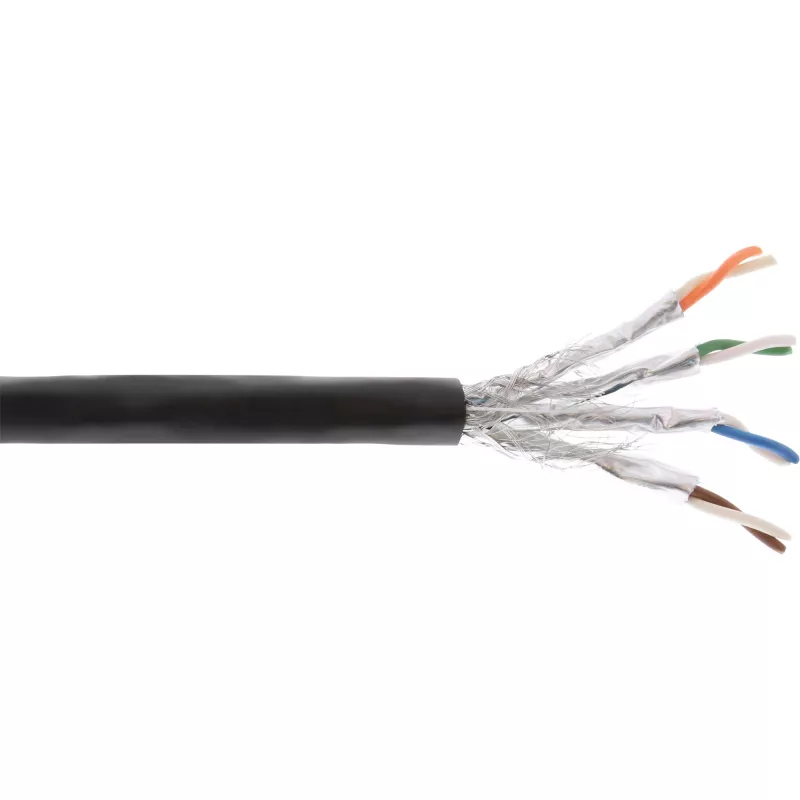

• Shielding: pairs in metal foil plus overall braid
• Sheath: LDPE, UV resistant, color black
• Cable diameter: approx. 8.2 mm
• Length: 100 m (on drum box)
• Installation temperature: 0 to 50 °C; Operating temperature: -20 to 60 °C
• Standards: ISO/IEC 11801, IEC 61156-5

How to use

Pull the required length of cable from the drum box and cut to size. Use standard installation practices for S/FTP cables: avoid sharp bends, maintain minimum bend radius during routing, and ensure proper grounding and termination with compatible connectors and shielding techniques. Observe the printed remaining-metre markings on the cable to measure installed lengths accurately.

Recommendations

For reliable outdoor performance, route the cable to avoid prolonged direct exposure to extreme mechanical stress and secure the cable at regular intervals. Terminate and ground the overall shield and individual pair shields according to established installation standards to maintain Cat.7a performance.
