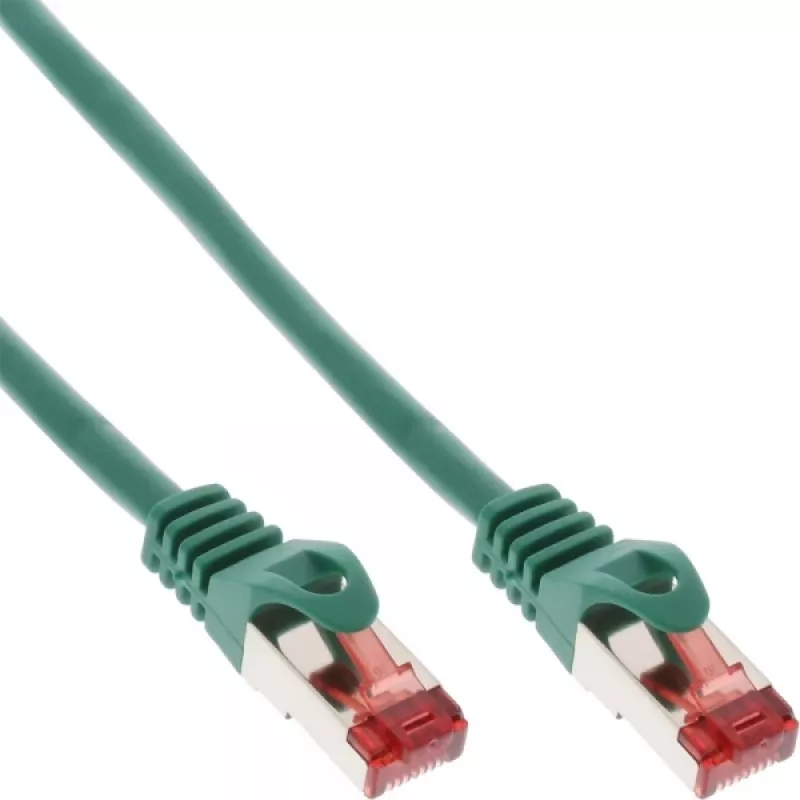

InLine patch kábel S/FTP PiMF Cat.6 250MHz meď bezhalogénový zelený 15m

Interference-free Gigabit transmission:Double S/FTP shielding (PiMf) for stable network connections up to 250 MHz.
Halogen-free cable sheathing:Ideal for safety-critical environments such as public institutions and industrial facilities.
Reliable signal quality:Solid copper strands (AWG27) guarantee low-loss data transmission over all lengths.
High mechanical resilience:Robust RJ45 connectors with molded bend and snap protection for long-term use.
Practical features:Length marking on the connector, assembled with molded connectors and red-marked RJ45 connector for quick identification.

The InLine® Cat.6 patch cables with S/FTP shielding (PiMf) are specially designed for professional network installations in IT, industry, and public institutions. They support Gigabit connections at frequencies up to 250 MHz and offer impressive transmission reliability thanks to the combination of overall braided shielding and paired metal foil shielding. The solid copper strands in AWG27 format ensure reliable, low-loss signal transmission even over longer distances. The RJ45 connectors, molded on both sides, are equipped with kink protection, snap-on protection, and a red marking—ideal for quick identification during installation. In addition, the cable length is indicated directly on the connector, which simplifies organization in the server cabinet or patch panel. The halogen-free sheath protects against toxic gases in the event of a fire and thus meets the requirements of safety-critical applications. The cables are assigned 1:1 in accordance with EIA/TIA-568B.

2x RJ45 plugs molded
Injected kink protection and snap-in protection
Red-colored RJ45 plug for quick differentiation
AWG27 wire cross-section with solid copper strands
Total braided shielding and PiMf - Paired in metal foil (old designation: S-STP PiMf)
Halogen-free sheath
With length indication on the connector
1:1 assignment according to EIA/TIA 568B

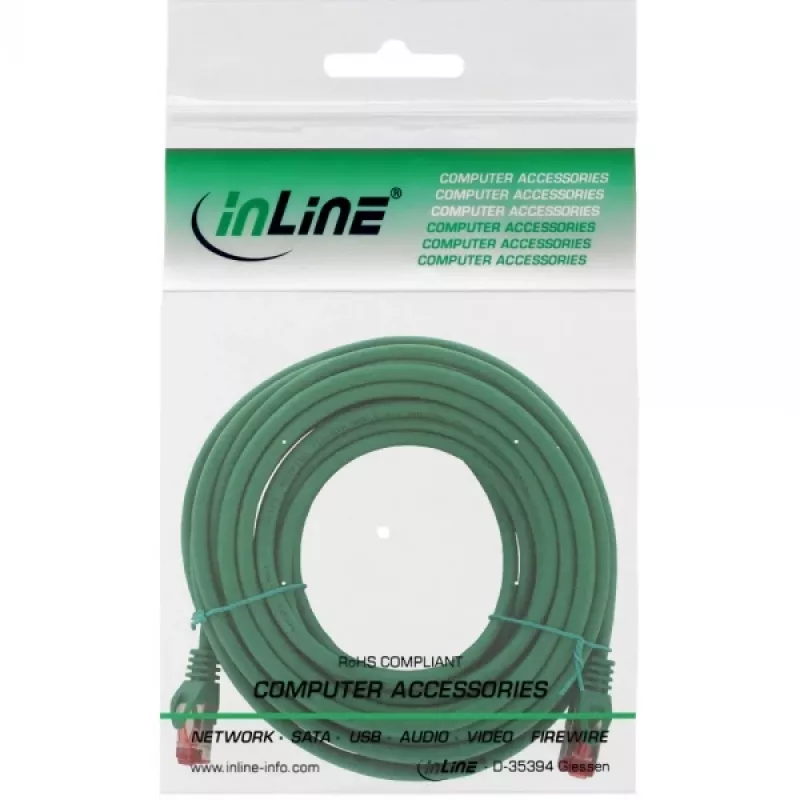

In POS-compatible PE bag with EAN code

InLine Patch Cable S/FTP PiMF Cat.6 250MHz copper halogen free green 15m. Cable length: 15 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Data transfer rate: 1000 Mbit/s, Product colour: Green

How to use

Plug one RJ-45 connector into the network port of the source device (for example a switch or router) and the other connector into the target device (for example a computer, patch panel or wall socket). Ensure connectors are fully inserted and locked. Route the cable to avoid sharp bends and sources of strong electromagnetic interference to maintain optimal signal quality.

Recommendations

For best performance maintain bend radius recommendations from the manufacturer, avoid running the cable in parallel with high-voltage power lines, and use appropriate cable management to prevent mechanical stress. Verify link speed and duplex settings on connected devices after installation.
