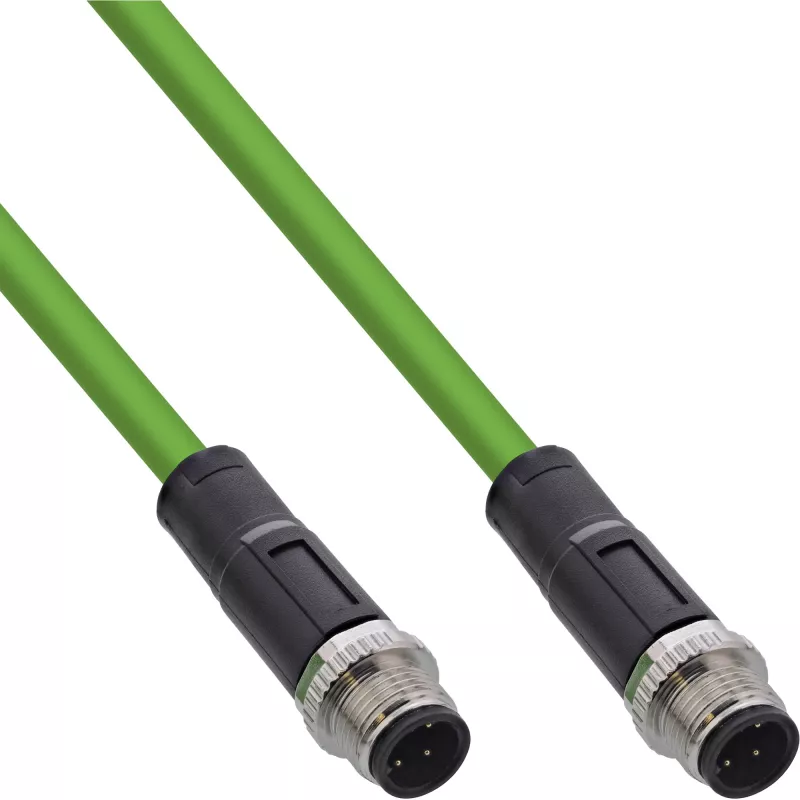

InLine priemyselný sieťový kábel, M12 4-pin D-kódovaný konektor samec/samec, PUR 5 m

High-quality industrial network cable with D-coded CAT5E performancefor data rates of up to 100 Mbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and damp environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 4-pin D-coded plug/connectorhas been specially developed for industrial applications where a reliable and robust connection is essential. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With CAT5E performance, the cable enables transmission rates of up to 100 Mbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Conductor cross-section: AWG 24
Shielding: SF/UTP

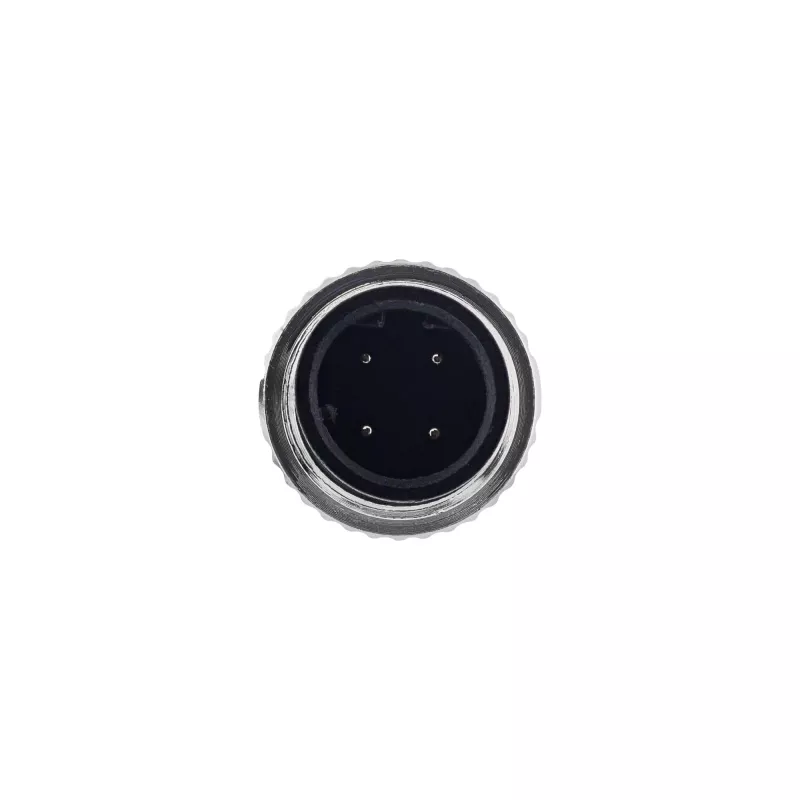

Connector type: M12 4-pin D-coded (IP67) to M12 4-pin D-coded (IP67)
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

InLine Industrial network cable, M12 4-pin D-coded male/male, PUR 5m. Cable length: 5 m, Connector 1: M12, Connector 2: M12. Package width: 200 mm, Package depth: 260 mm, Package height: 26 mm

How to use

Connect each M12 male connector to corresponding D-coded M12 female ports on devices such as PLCs, switches, sensors or actuators. Route the cable to avoid sharp edges and excessive bending radii, and fix it with suitable cable clamps where necessary. Ensure both ends are fully seated and tightened according to the connector’s specifications to maintain reliable contact and shielding.

Recommendations

Use this M12 D-coded PUR cable in environments with moderate mechanical stress, exposure to oils or chemicals, and where flexible routing is required. Avoid continuous heavy dynamic bending beyond the manufacturer’s specified bend radius and keep the cable clear of high-voltage power lines to minimize interference.
