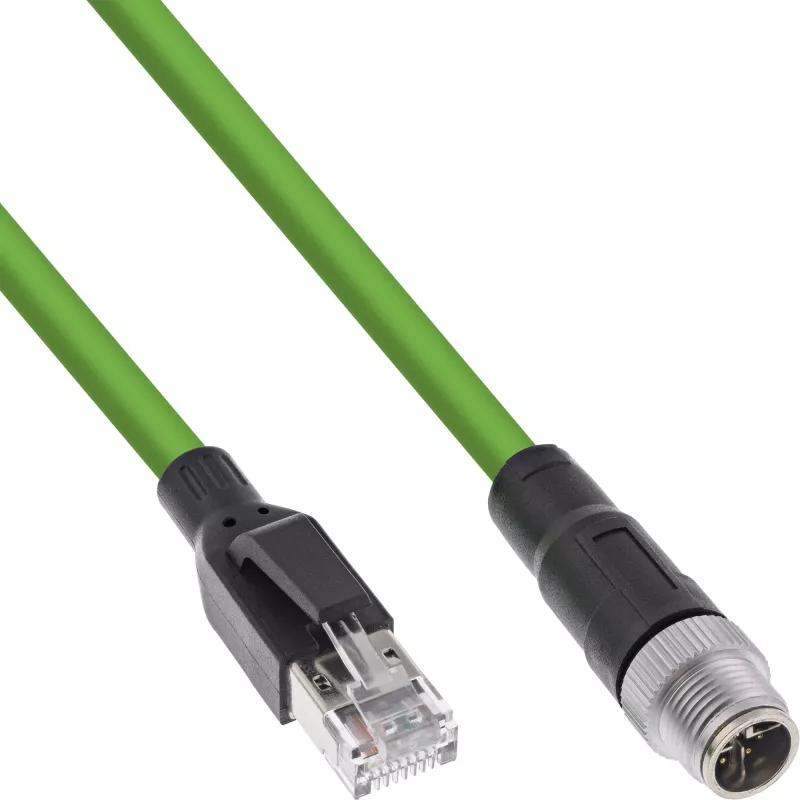

InLine priemyselný sieťový kábel, M12 8-pin X-kódovaný na RJ45 konektor samec, Cat.6A PUR 5 m

High-quality industrial network cable with X-coded CAT6A performancefor data rates of up to 10 Gbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and humid environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 8-pin X-coded plug to RJ45 plug, Cat.6A, PURhas been specially developed for industrial applications that require high data transmission rates and a robust connection. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With Cat.6A performance, the cable enables transmission rates of up to 10 Gbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Plug type: M12 8-pin X-coded (IP67) to RJ45 (IP20)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

InLine Industrial network cable, M12 8-pin X-coded to RJ45 plug, Cat.6A PUR 5m. Cable length: 5 m, Connector 1: M12, Connector 2: RJ-45. Package width: 200 mm, Package depth: 260 mm, Package height: 30 mm

How to use

Connect the M12 X-coded 8-pin connector to the corresponding M12 socket on the industrial device and insert the RJ45 plug into the network switch or patch panel. Ensure connectors are aligned and fully engaged; tighten any locking mechanisms on the M12 connector according to the device manufacturer's instructions. Route the cable to avoid sharp edges, excessive bending radii, and sources of mechanical damage to preserve the PUR jacket and maintain signal integrity.

Recommendations

For reliable long-term operation, avoid repeated torsion and tight bends, keep the cable away from high-temperature sources and strong electromagnetic interference, and follow site-specific grounding and shielding practices when integrating into industrial networks.
