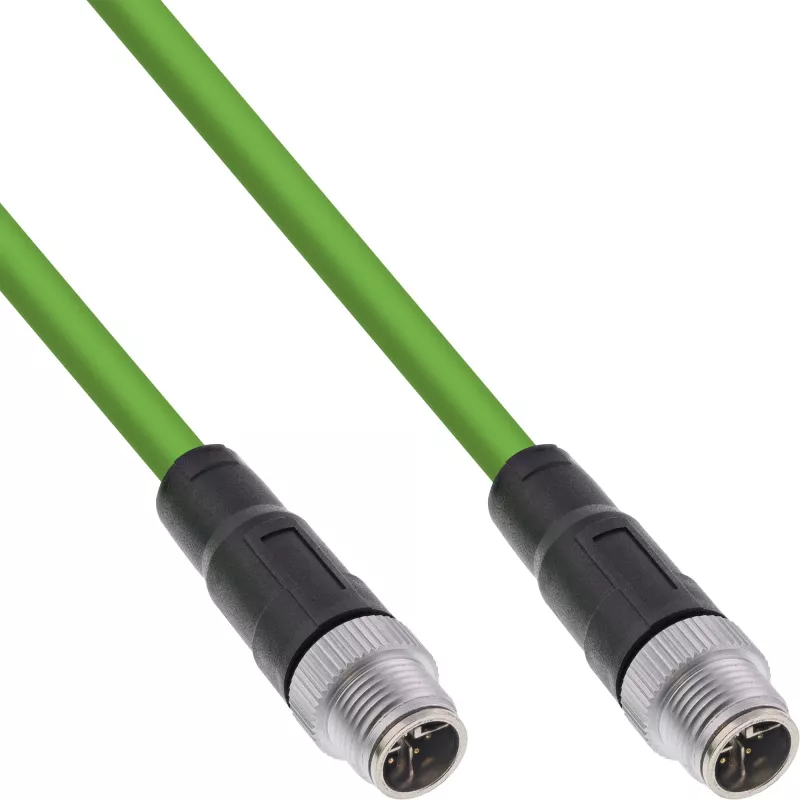

InLine priemyselný sieťový kábel, M12 8-pólový X-kódovaný konektor samec/samec, Cat.6A PUR 1m

High-quality industrial network cable with X-coded CAT6A performancefor data rates of up to 10 Gbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and humid environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 8-pin X-coded plug/connector, Cat.6A, PURhas been specially developed for industrial applications that require high data transmission rates and a robust connection. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With Cat.6A performance, the cable enables transmission rates of up to 10 Gbit/s, which ensures stable and fast communication.
Whether for use in production plants, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant

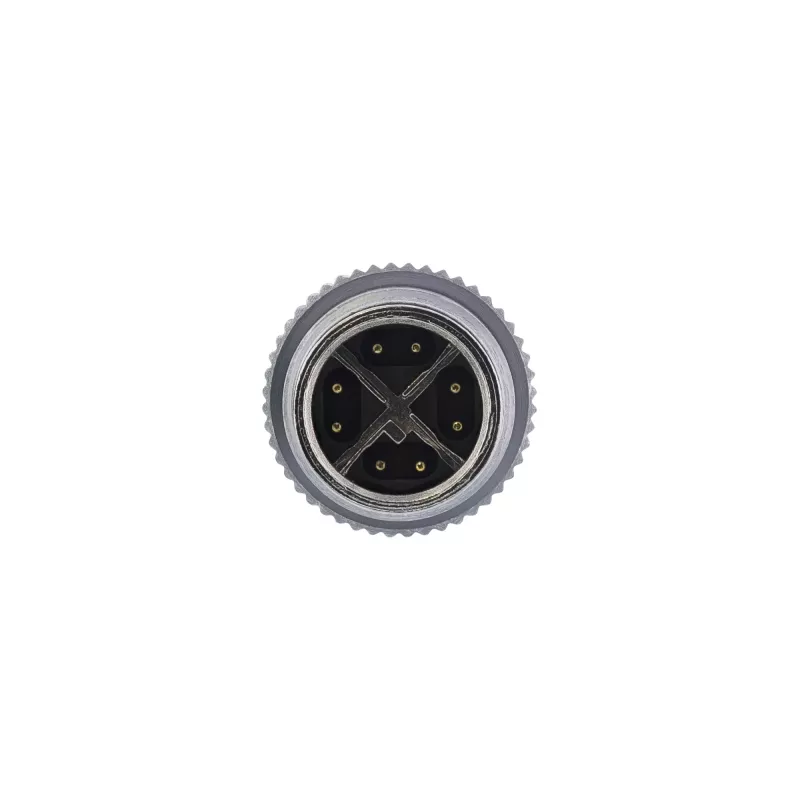

Connector type: M12 8-pin X-coded (IP67) to M12 8-pin D-coded (IP67)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

InLine Industrial network cable, M12 8-pin X-coded male/male, Cat.6A PUR 1m. Cable length: 1 m, Connector 1: M12, Connector 2: M12. Package width: 173 mm, Package depth: 240 mm, Package height: 15 mm

How to use

Connect each M12 male connector to corresponding M12 X-coded female ports on industrial switches, routers, sensors or actuators. Ensure connectors are fully seated and, if applicable, screw-lock or torque to the manufacturer’s recommended tightening to maintain shielding and IP protection. Route the cable to avoid sharp bends and mechanical stress; observe standard installation practices for industrial network cabling to preserve signal integrity.

Recommendations

Use this InLine M12 X-coded Cat.6A cable for short, fixed links inside industrial cabinets or between adjacent machines. For longer runs or environments with extreme temperatures or chemical exposure, verify compatibility with site requirements and consider alternative jacket materials or lengths.
