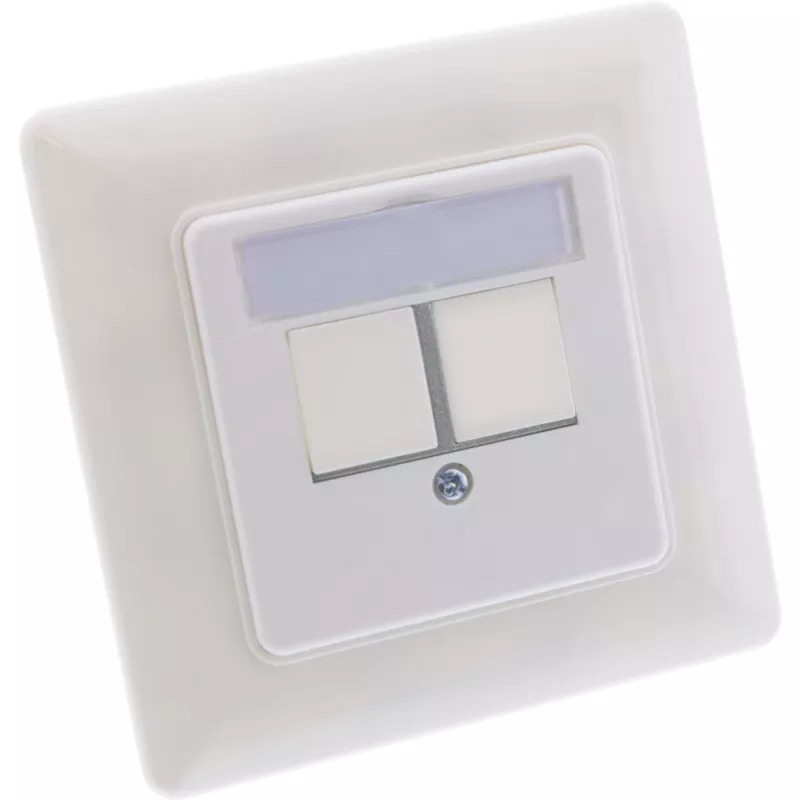

InLine rámiková sada pre 2x RJ45 Keystone SNAP-In 90°, biela RAL9010

Optimised 90° outlet for space-saving cabling:The alignment of the ports facilitates cable entry when there is little space behind the box.
Can be equipped with RJ45 Keystone SNAP-In:Accommodates up to two modules – suitable for RJ45.
Clear documentation thanks to labelling field:Clear labelling of ports for structured network installation.
Standard dimensions for easy installation:Compatible with standard flush-mounted boxes (80x80 mm frame, 50x50 mm centre plate).
Reliable solution for professional networks:Ideal for installations in offices, data centres or where space is limited.

The InLine® frame set 76202Z impresses with its well-designed 90° version of the Keystone SNAP-In modules – ideal for applications with limited installation space behind the wall box. The vertical alignment of the ports enables particularly flat cable routing and prevents unnecessary bending radii or mechanical stress on the patch cables.

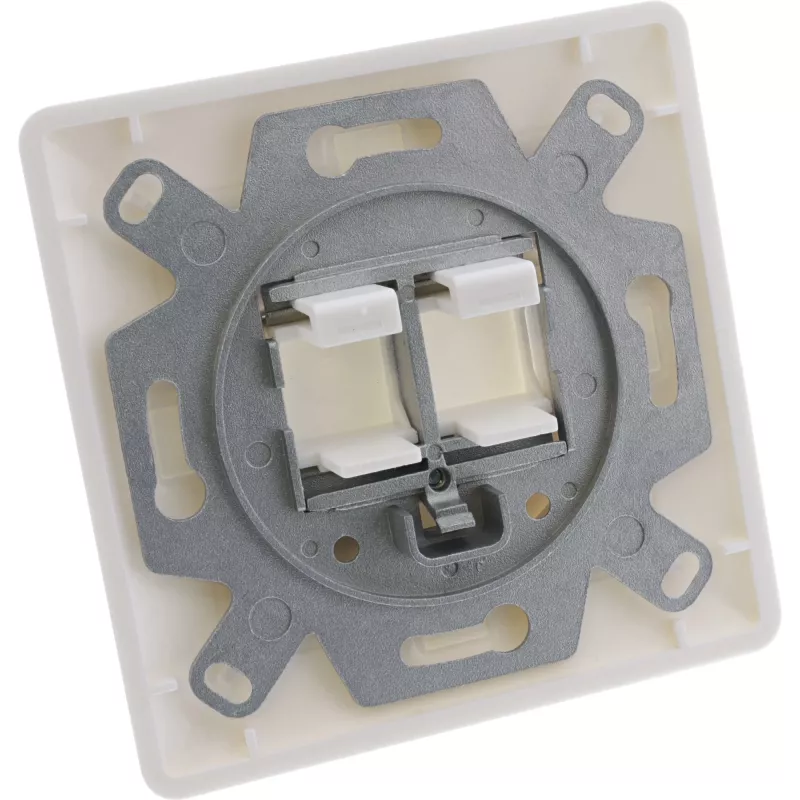

The frame set accommodates up to two RJ45 Keystone modules, which can be mounted without tools using SNAP-In. Included are an 80x80 mm mounting frame, a central plate with a 50x50 mm cut-out and an integrated labelling field for clear port identification.
The 90° design is particularly popular for installations in parapet ducts, furniture or wall panels with limited depth. An intelligent solution for modern network infrastructures in professional environments.

Connections: 2x RJ45
Installation: Flush-mounted
Dimensions (W x H x L): 8 x 2 x 8 cm
Colour: White (RAL9010)
RJ45 Keystone SNAP-In compatible: Yes
Special feature: 90° outlet

InLine Frame set for 2x RJ45 Keystone SNAP-In 90°, white RAL9010. Width: 80 mm, Height: 20 mm, Depth: 80 mm. Package width: 100 mm, Package depth: 140 mm, Package height: 20 mm. Quantity per pack: 1 pc(s)

How to use

Place the frame into a compatible flush-mounted box and push in one or two RJ45 Keystone SNAP-In modules until they click into place. Ensure the module orientation matches the 90° format required for cable routing. After insertion, connect the keystone modules to the network cables following standard termination procedures and secure the frame in the box if necessary.

Recommendations

Use the frame with InLine or other standard RJ45 Keystone SNAP-In modules sized for 90° installation. Verify box depth and module orientation before installation to avoid strain on connectors and cables.
