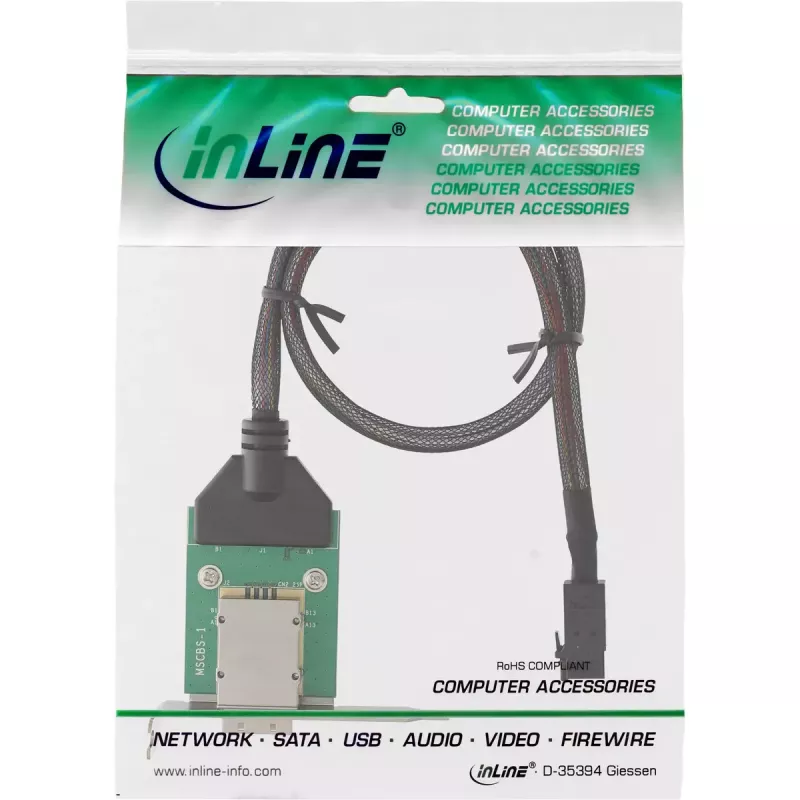

InLine SAS HD low-profile adaptérový držiak ext. SFF-8088 / int. SFF-8643 0,5 m

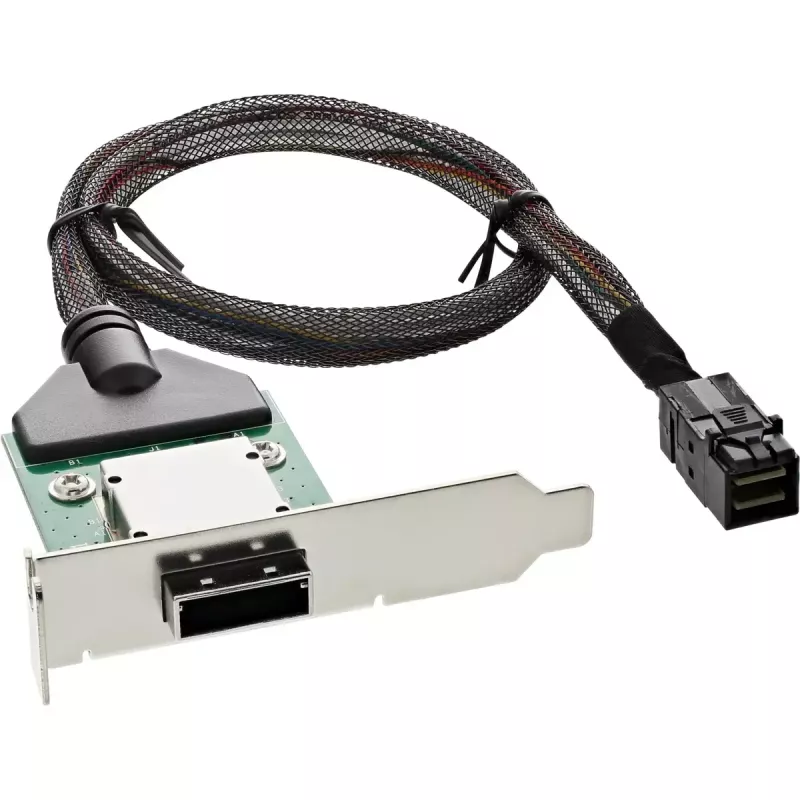

This SAS HD adapter is a passive PCB adapter bracket designed for low-profile slots. It provides an external 26-pin Mini SAS connector (SFF-8088) on one side and an internal 36-pin Mini SAS connector (SFF-8643) with a 0.5 m cable on the other side. The bracket fits into low-profile cases and supports installation in both orientations, enabling connections between external SAS devices and internal controllers in compact or rack-mounted systems.

Advantages

The adapter supports reliable data transfer between SFF-8088 and SFF-8643 interfaces without active electronics, offers a compact low-profile form factor suitable for space-limited chassis, and includes a 0.5 m cable for flexible internal routing. Its passive design minimizes power and compatibility issues while the black-and-silver finish integrates with standard server hardware.

Suitable for

Key specifications

How to use

Install the adapter into a low-profile expansion slot of the chassis, ensuring the bracket is secured in the slot. Connect the internal SFF-8643 connector to the host controller or expansion card, and attach an external Mini SAS (SFF-8088) cable to the external connector for linking to an external enclosure or device. The adapter can be mounted in either orientation; verify connector alignment before powering the system.

Recommendations

Use certified Mini SAS cables and ensure firm, dust-free connections. Avoid bending the cable sharply and secure the adapter bracket to prevent movement. Confirm compatibility of controller and enclosure SAS versions before deployment.
