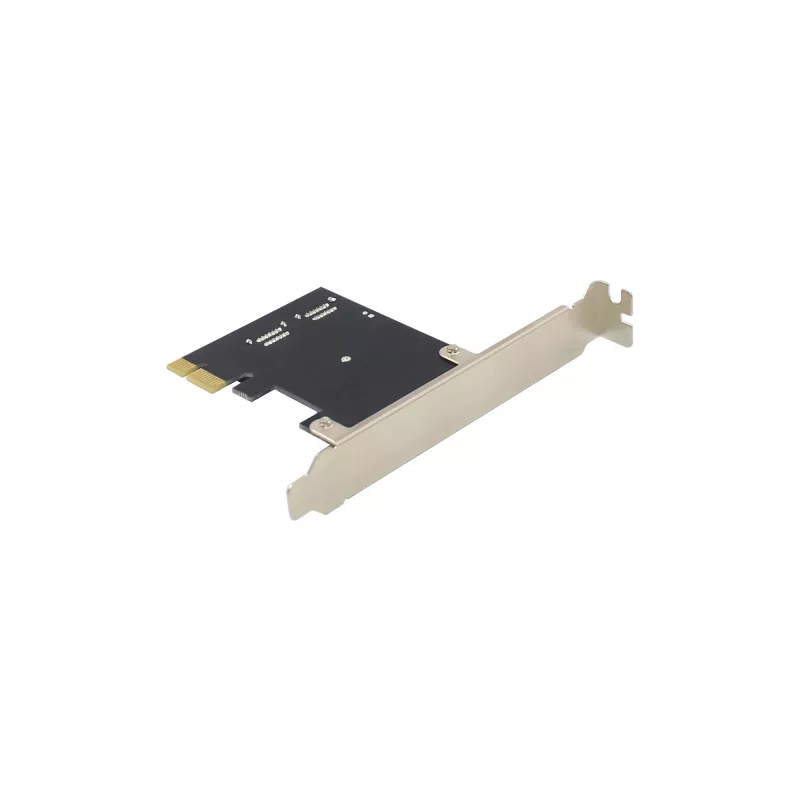

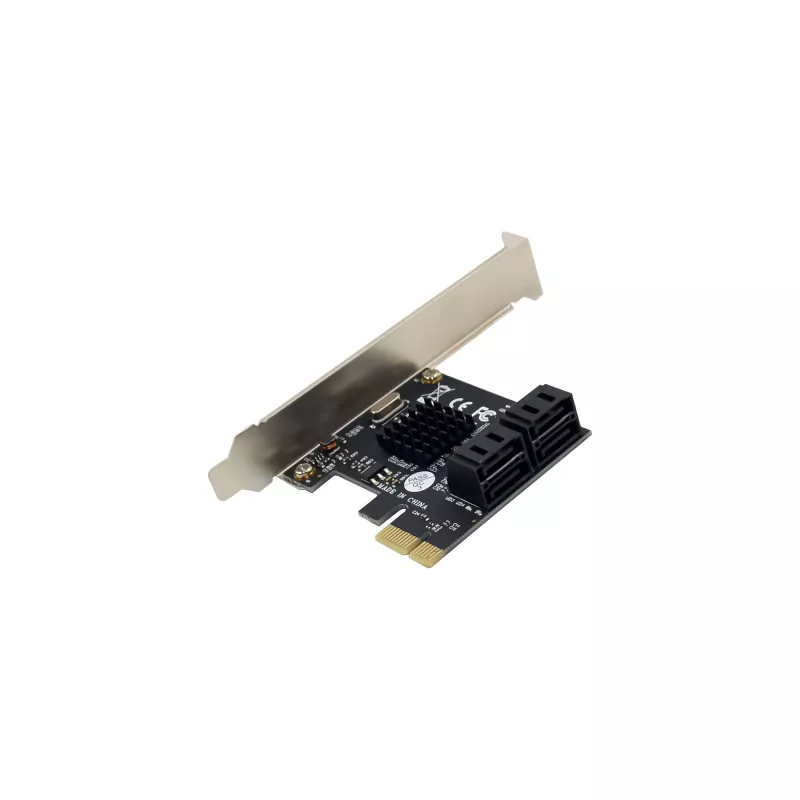

InLine SATA 6Gb/s radič so 4 SATA portmi PCI-Express 2.0

Flexible storage expansion via PCIe:Provides four additional SATA 6Gb/s ports for internal storage solutions – ideal for workstations and servers.
High data rate thanks to SATA 6Gb/s:Supports fast SSDs and modern hard drives for maximum performance with minimal effort.
Broad compatibility thanks to PCIe x1 interface:Can be used in x1, x4, x8 and x16 slots – for maximum flexibility in different system architectures.
Hot plug & hot swap functionality:Drives can be added or removed during operation – ideal for maintenance environments.
Supports NCQ & port multipliers:Enables efficient data processing and complex storage structures in professional environments.

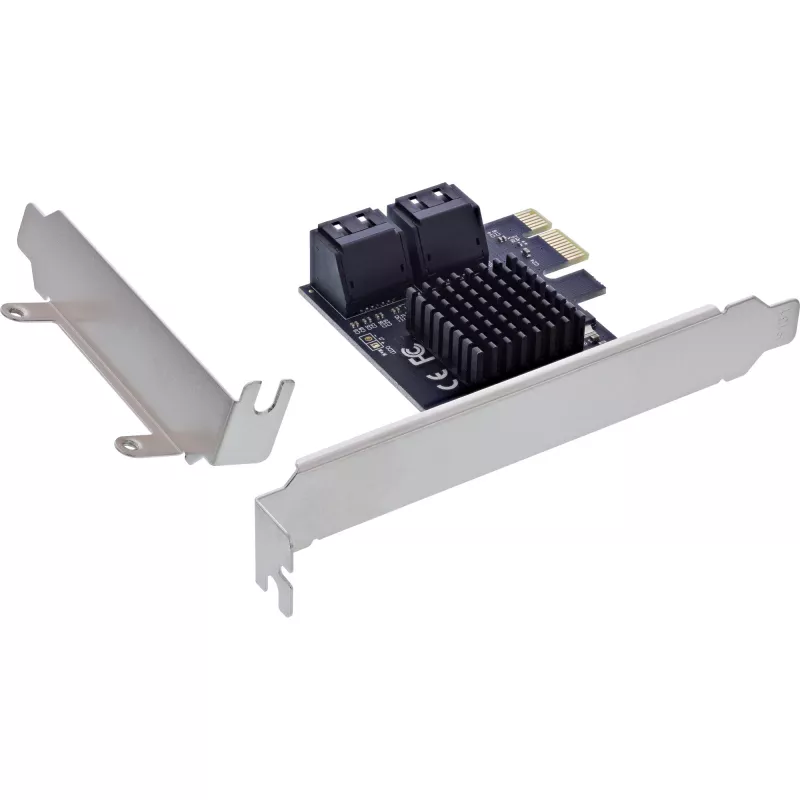

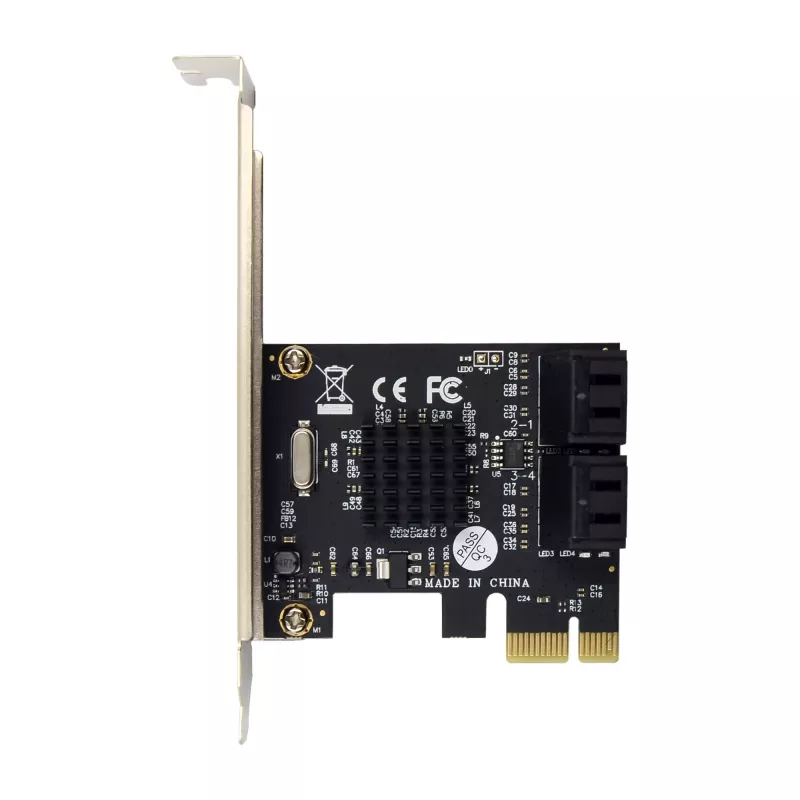

The InLine® interface card with four SATA 6Gb/s ports offers a powerful solution for storage expansion via PCIe. Equipped with the Marvell 88SE9215 chipset, it delivers stable performance with high data throughput – ideal for professional storage applications.
The card supports PCI Express 2.0 with a x1 interface, but is compatible with x1, x4, x8 and x16 slots, allowing it to be installed in almost any modern PC or server. Thanks to backward compatibility with SATA 3Gb/s and 1.5Gb/s, older drives can also be used without any problems.
With support for hot plug and hot swap, the card is ideal for IT maintenance scenarios and flexible expansion during operation. Native Command Queuing (NCQ) and port multipliers (FIS or command-based) are fully supported, so even complex storage concepts are no problem.
The InLine® PCIe SATA card is suitable for use in workstations, small servers or NAS solutions where performance, flexibility and operational reliability are crucial.

Chipset: Marvell 88SE9215
Interface: PCI Express 2.0 x1 (compatible with x1, x4, x8, x16)
Connections: 4x SATA 6Gb/s
Compatible with SATA 6Gb/s, 3Gb/s, 1.5Gb/s
Supports hot plug & hot swap
Supports NCQ (Native Command Queuing)
Supports port multipliers with FIS or command-based switching
Operating systems: Windows XP/Server 2003 or newer, Linux from kernel 2.6.x
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine SATA 6Gb/s Controller with 4 SATA Ports PCI-Express 2.0. Host interface: SATA, Output interface: SATA, Host interface gender: Male. Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2003, Windows Server 2007, Windows Server 2008, Windows Server 2012, Windows Server.... Width: 120 mm, Depth: 1.1 mm, Height: 80 mm. Package width: 140 mm, Package depth: 150 mm, Package height: 30 mm

How to use

Install the card into an available PCI-Express 2.0 (or compatible) slot on the motherboard and secure it to the chassis. Connect SATA data cables from the controller ports to the internal SATA drives and connect power to the drives from the system power supply. Boot the system and install any required drivers for your operating system if they are not detected automatically. Configure drive order and RAID (if supported by separate software or hardware) within the OS or system BIOS as needed.

Recommendations

For best stability, use all SATA cables and power connections that meet the drives' specifications, ensure the motherboard BIOS and operating system have the latest updates, and install the manufacturer's drivers when available. Use this card in systems where additional internal SATA ports are required rather than as an external or hot-swap solution.
