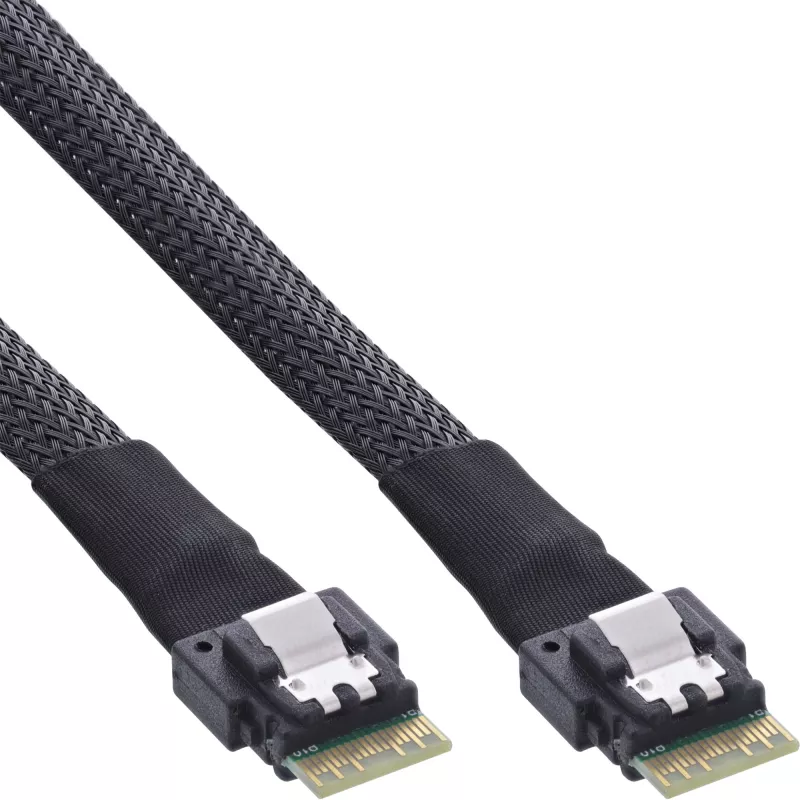

InLine tenký SAS kábel, SFF-8654 na SFF-8654, 24 Gb/s, 0,5 m

Perfect for professional storage solutions:Reliably connects internal SAS devices such as hard drives to controllers – ideal for RAID, JBOD, or DAS.
Standardized connection:Equipped with two Slim SAS 4i connectors (SFF-8654), compliant with SAS 4.0 specifications.
Secure connection:Locking clip on both connectors ensures a firm hold when mounted in the system housing.
High data rates:Supports up to 24 Gb/s total transfer rate – distributed across 4 channels with 6 Gb/s each.
Reliable signal quality:Ideal for demanding enterprise applications with high data integrity.

The InLine® Slim SAS cable is the ideal solution for professional server and storage environments where a reliable and high-performance connection between SAS devices and controllers is required. Thanks to the standardized Slim SAS 4i connectors (SFF-8654), the cable is ideal for use in RAID setups, JBODs, direct attached storage (DAS), or high-performance workstations.
The SAS 4.0-compliant connectors with integrated locking clips ensure a stable connection – even in confined spaces within the housing. The four available data channels together enable a maximum data rate of up to 24 Gb/s. This ensures fast and uninterrupted data transfer that meets the requirements of modern IT infrastructures.
The cable is designed for professional applications where performance, security, and compatibility are key. Whether for internal cabling between HBA or RAID controllers and SAS hard drives or for expanding existing storage solutions, this cable meets the highest standards of quality and stability.

Connector type:Slim SAS 4i (SFF-8654) on both sides
Standard:SAS 4.0
Channels:4 data channels at 6 Gb/s
Total data rate:24 Gb/s
Function:Internal connection cable
Locking:Clip lock on both ends
Length:0.5 m (item no. 27642A), 1 m (item no. 27642B)

InLine Slim SAS cable, SFF-8654 to SFF-8654, 24Gb/s, 0.5m. Cable length: 0.5 m, Connector 1: SFF-8654, Connector 2: SFF-8654. Dimensions (WxDxH): 15 x 500 x 10 mm. Package width: 170 mm, Package depth: 220 mm, Package height: 15 mm

How to use

Power down the server or storage appliance before connecting. Insert each SFF-8654 connector into the corresponding SAS port on the controller and the target device until it seats securely. Route the cable to avoid sharp bends and to preserve airflow. After connection, power on the equipment and verify that the host detects the attached drives or enclosure.

Recommendations

For optimal performance, use this 0.5 m cable for internal, short-reach connections within the same chassis or adjacent units. Avoid excessive bending near the connectors and keep the cable clear of hot components. Replace the cable if connectors show visible wear or if data link errors occur.
