Innovaphone IP1130 VoIP mediálny gateway

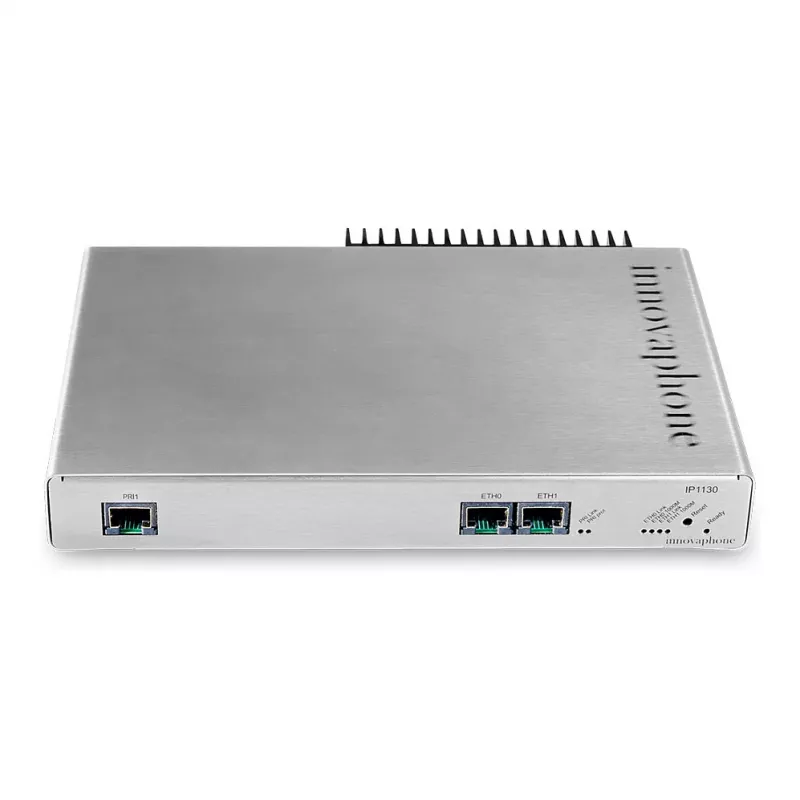

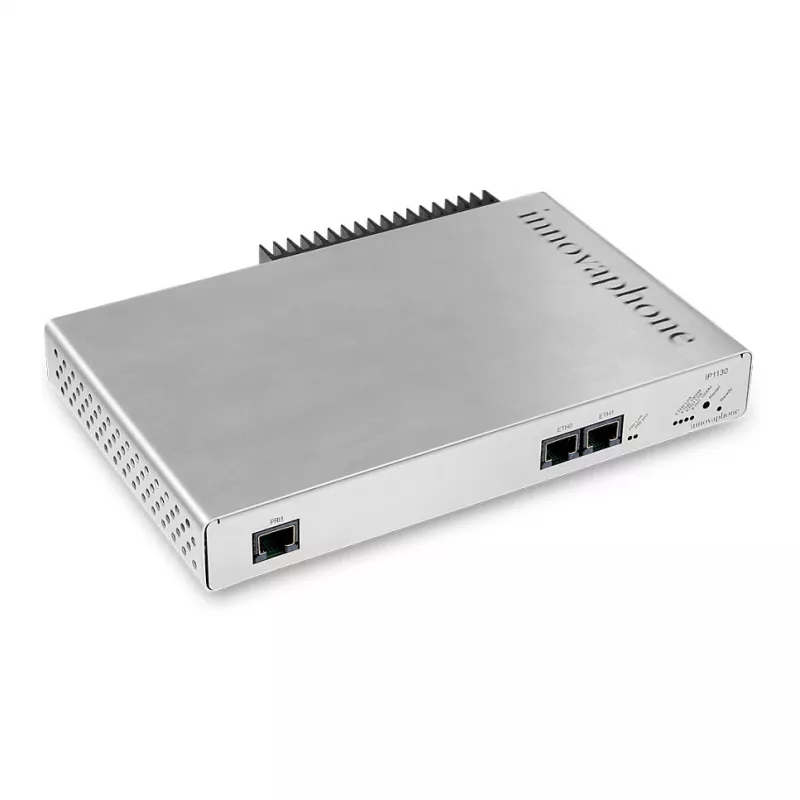

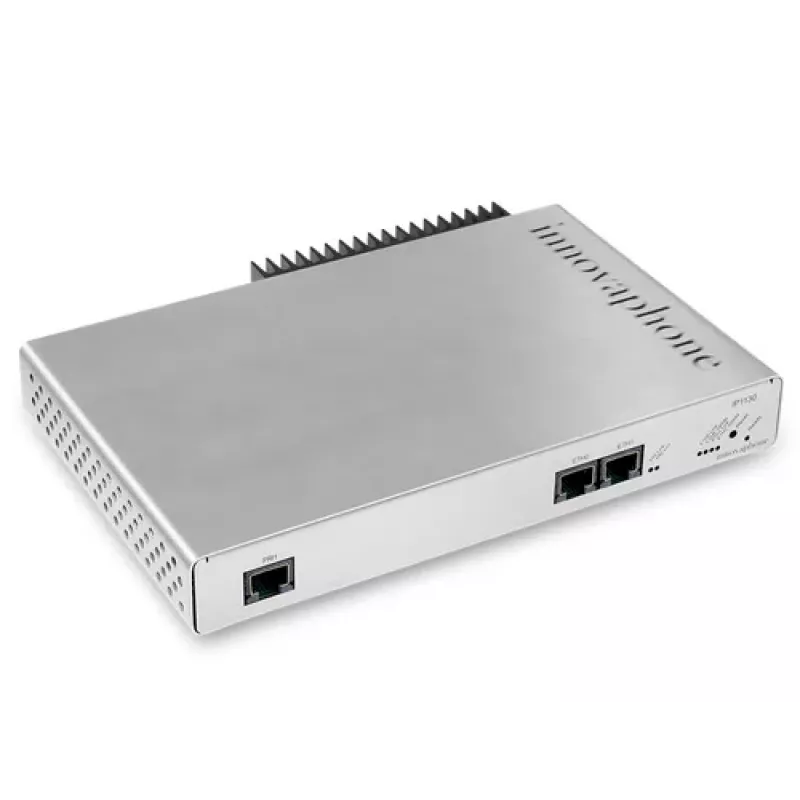

The innovaphone IP1130 Mediagateway is a high-performance VoIP media gateway designed for small to medium-sized businesses. It bridges traditional telephony and IP networks, supporting up to 30 concurrent calls with advanced codecs and security features. The gateway offers flexible deployment options with PoE or DC power, and integrates seamlessly with innovaphone PBX systems.

Advantages

Reliable voice communication with integrated DSP for echo cancellation and jitter buffer. Supports both SIP and H.323 protocols for interoperability. Compact design with wall-mountable option saves space. Energy-efficient PoE support reduces cabling needs.

Suitable for

• Small to medium-sized enterprises needing a cost-effective VoIP gateway
• Integration with existing innovaphone PBX or third-party SIP/H.323 systems
• Deployments requiring fiber connectivity via SFP slot

Key specifications

• 2x Gigabit Ethernet ports (10/100/1000BASE-T)
• 1x SFP slot for fiber or copper modules
• 1x USB 2.0 Host port
• Voice codecs: G.711, G.722, G.729A, Opus, iLBC
• Up to 30 concurrent calls
• Security: SRTP, TLS, OpenVPN Client
• Management: Web-based GUI, innovaphone PBX Integration
• Power: PoE (IEEE 802.3af Class 3) or 12V DC adapter

Recommendations

For optimal performance, use with innovaphone PBX and ensure network QoS is configured. The SFP slot allows for fiber uplink to extend network reach.
