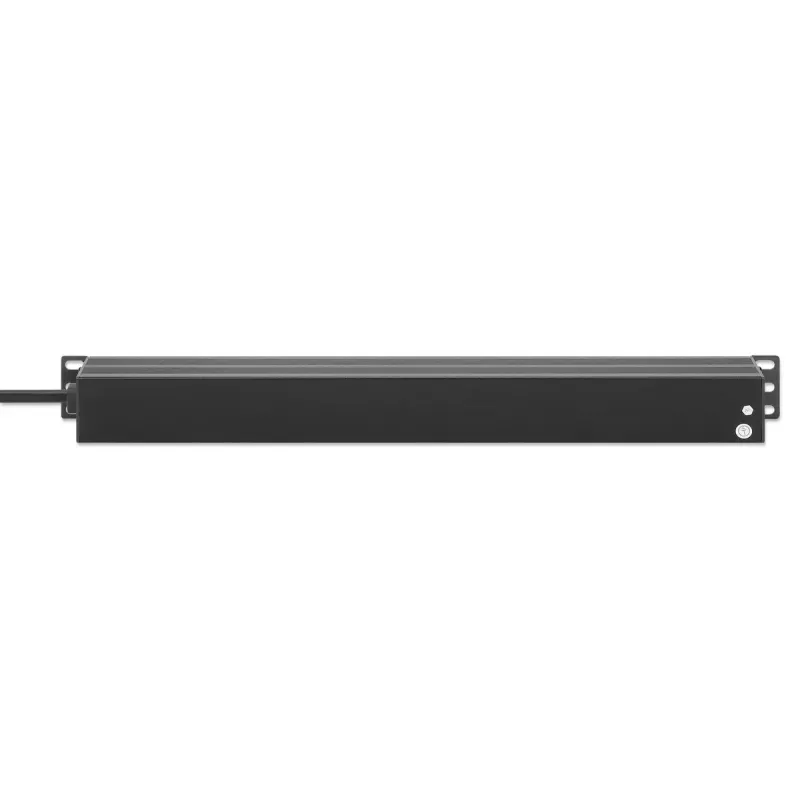

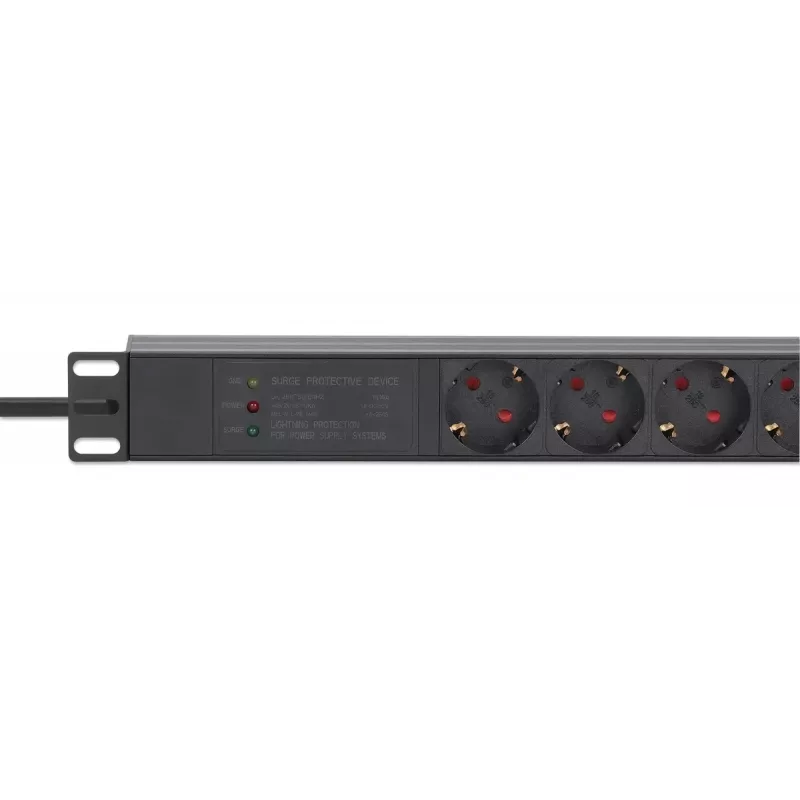

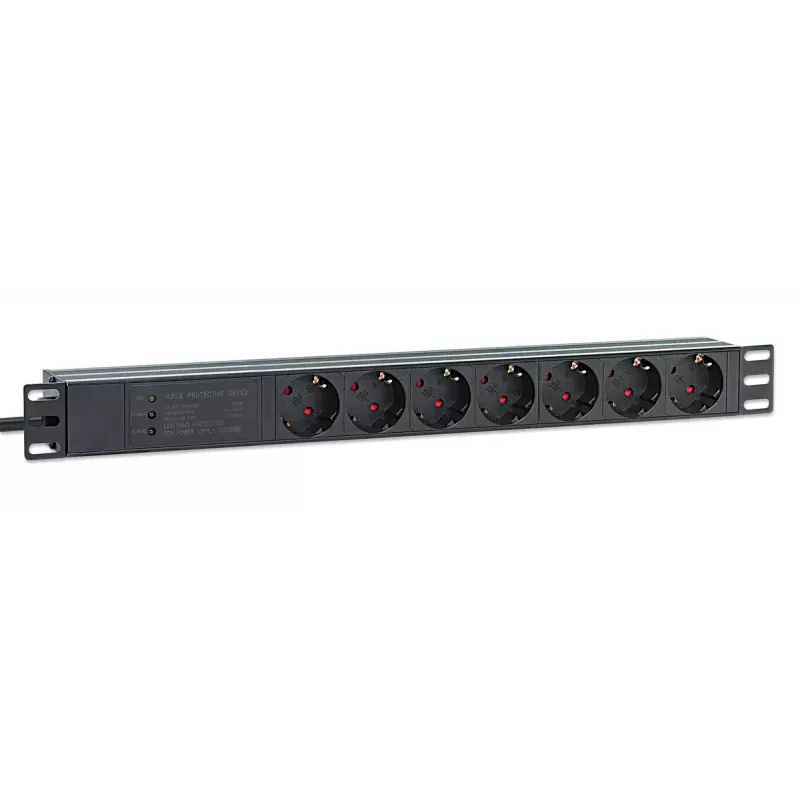

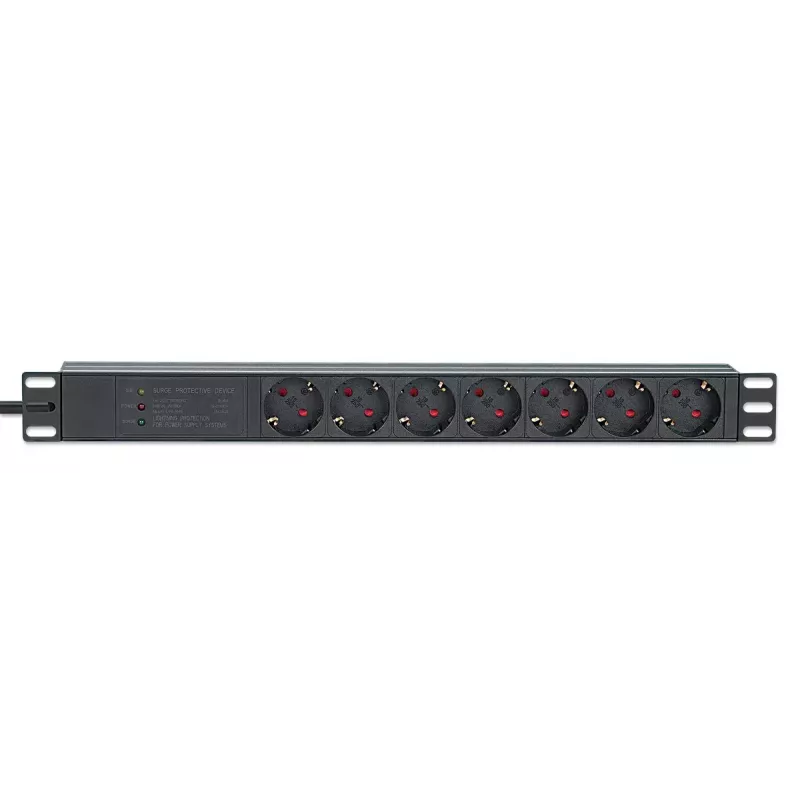

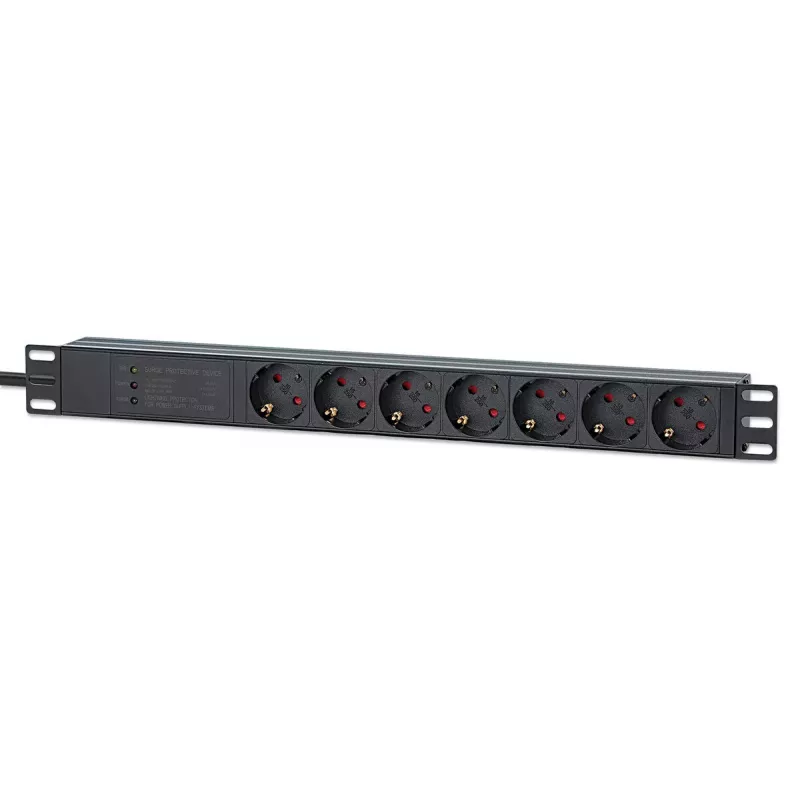

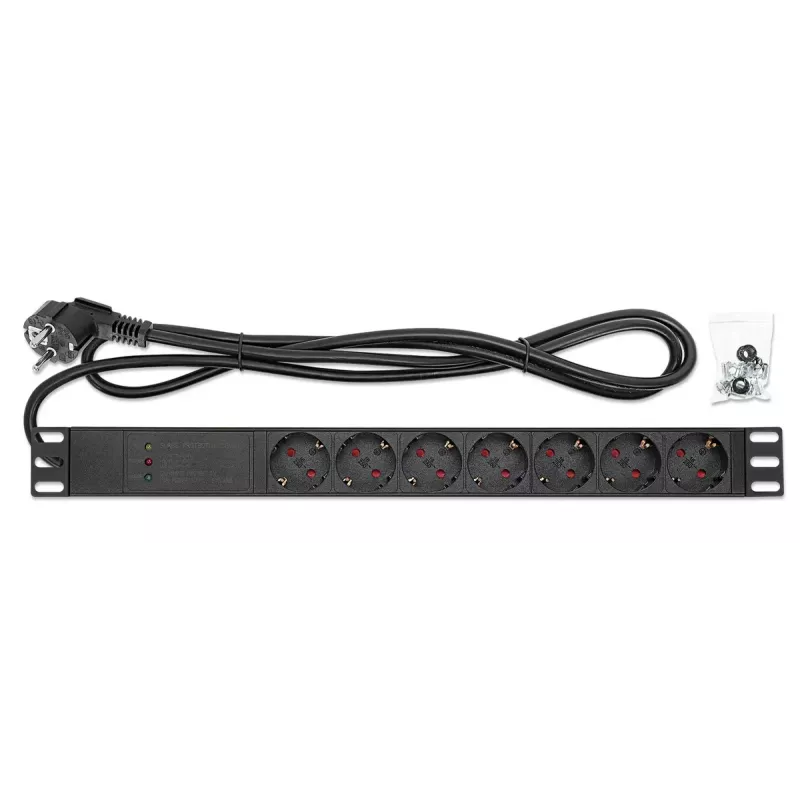

Intellinet 19" 1U racková 7-násobná PDU prepäťová ochrana 16 A 3 m kábel

Intellinet 19" 1U Rackmount 7-Way PDU provides power distribution and surge protection for networking, telecom, surveillance, AV and other electronics. The unit fits into 1U of a 19-inch rack and features seven EU Type E+F (Type F) AC outlets in a durable black aluminum housing, a 3 m power cord and a maximum current rating of 16 A. Surge suppression is rated at 500 joules with a peak surge current of 19,500 A to help protect connected devices from voltage spikes.

Advantages

This rackmount PDU combines space-saving 1U design with seven outlets to power multiple devices in a single rack. Built-in surge protection reduces the risk of equipment damage from transient voltage spikes. The 3 m cable and Type F plug provide compatibility with common European power installations, while the metal housing ensures mechanical durability in rack environments.

Suitable for

• Server and network racks for switches, routers and servers
• Telecom cabinets and patch panels
• Surveillance and security equipment
• Audio‑visual installations in racks
• Small data closets and edge computing cabinets

Key specifications

• AC outlets quantity: 7 AC outlet(s)
• AC outlet type: Type E+F (Type F)
• Maximum current: 16 A
• Surge suppression energy: 500 J
• Peak surge current: 19,500 A
• Cable length: 3 m
• Mounting size: 1U, 19-inch rack
• Colour: Black
• Weight: 0.95 kg

How to use

Install the PDU into a standard 19-inch rack occupying 1U of height using appropriate rack screws. Connect the unit's Type F power plug to a compatible wall outlet or UPS. Plug equipment into the seven Type E+F outlets, observing the maximum combined current of 16 A to avoid overloading. Ensure proper rack grounding and confirm surge protection indicators (if present) after power-up.

Recommendations

Do not exceed the specified 16 A maximum current. For critical systems, use this PDU in combination with an uninterruptible power supply (UPS) and follow rack manufacturer guidelines for grounding and ventilation.
