Intellinet nástenné puzdro 771900 771917 80x80x45mm signálna biela RAL9003

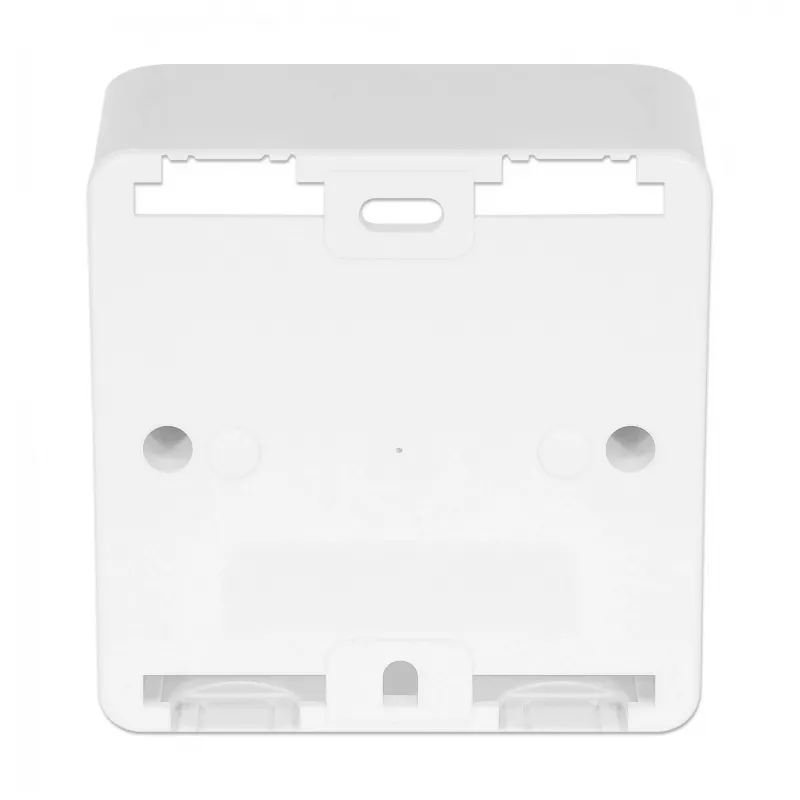

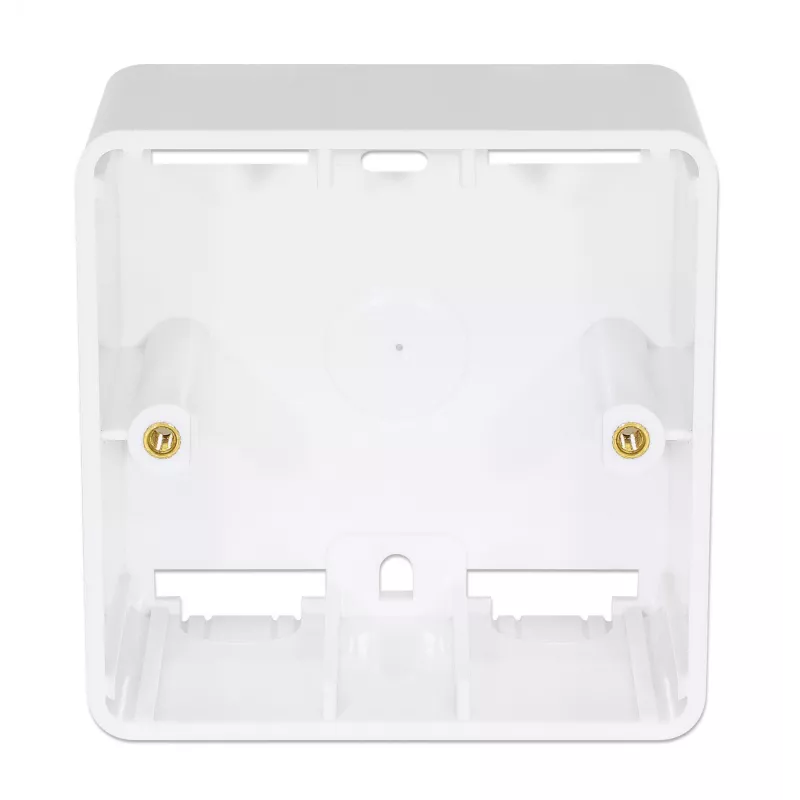

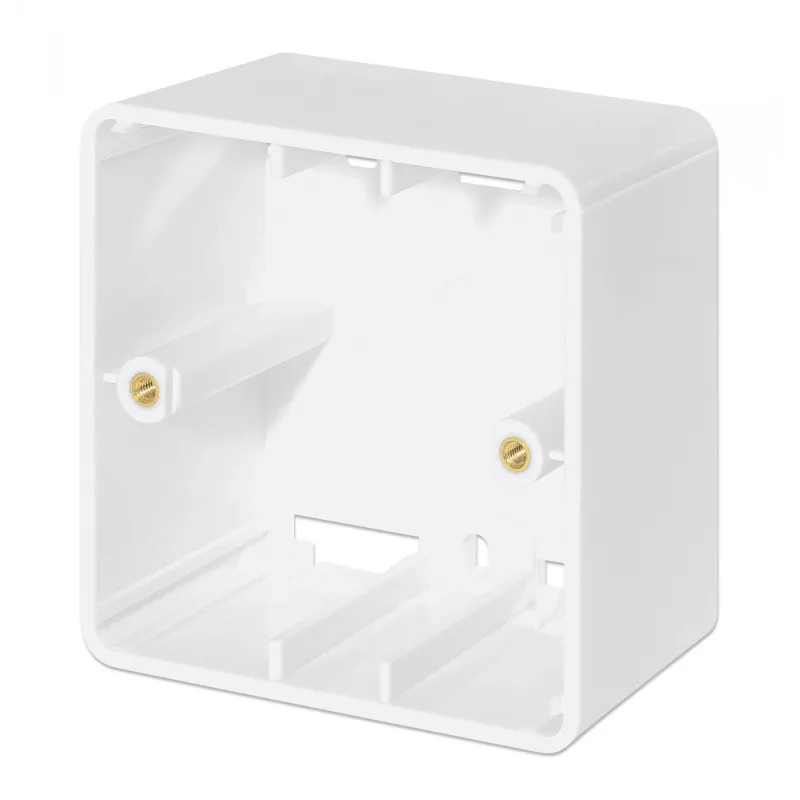

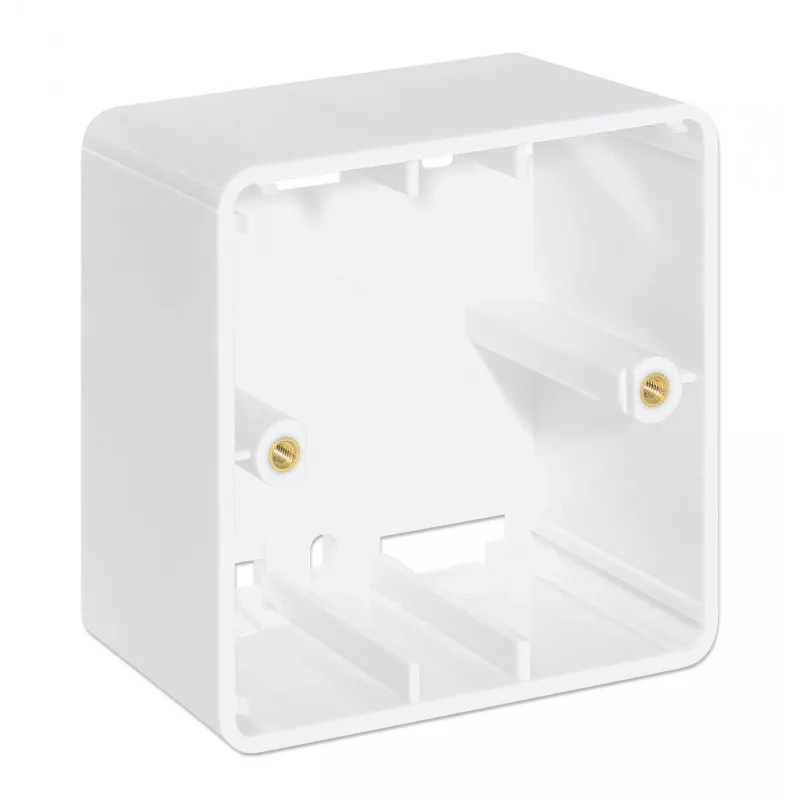

Surface Mount Back Box for wall plates compatible with Intellinet models 771900 (Cat6) and 771917 (Cat6a). The box follows the European format with external dimensions of 80 x 80 x 45 mm and comes in Signal White (RAL9003). It is intended for surface mounting where a flush installation into the wall is not possible or desired, providing a neat and accessible enclosure for network wall plates.

Advantages

The Intellinet Surface Mount Pattress Box offers a compact, standardized housing that simplifies surface installation of compatible Cat6 and Cat6a wall plates. Its 80 x 80 x 45 mm European-format dimensions match the specified wall plates, and two integrated screw holes ensure a secure and stable attachment. The Signal White (RAL9003) finish provides a neutral appearance suitable for most interiors.

Suitable for

• Surface mounting Cat6 wall plate (Intellinet 771900)
• Surface mounting Cat6a wall plate (Intellinet 771917)
• Installations where wall recessing is not possible or undesirable
• Offices, server rooms, residential installations needing external mounting

Key specifications

• Compatibility: Intellinet wall plates 771900 (Cat6) and 771917 (Cat6a)
• External dimensions: 80 x 80 x 45 mm (European format)
• Colour: Signal White RAL9003
• Mounting: Surface mount with two built-in screw holes
• Manufacturer: INTELLINET, MPN 771894, EAN 0766623771894

How to use

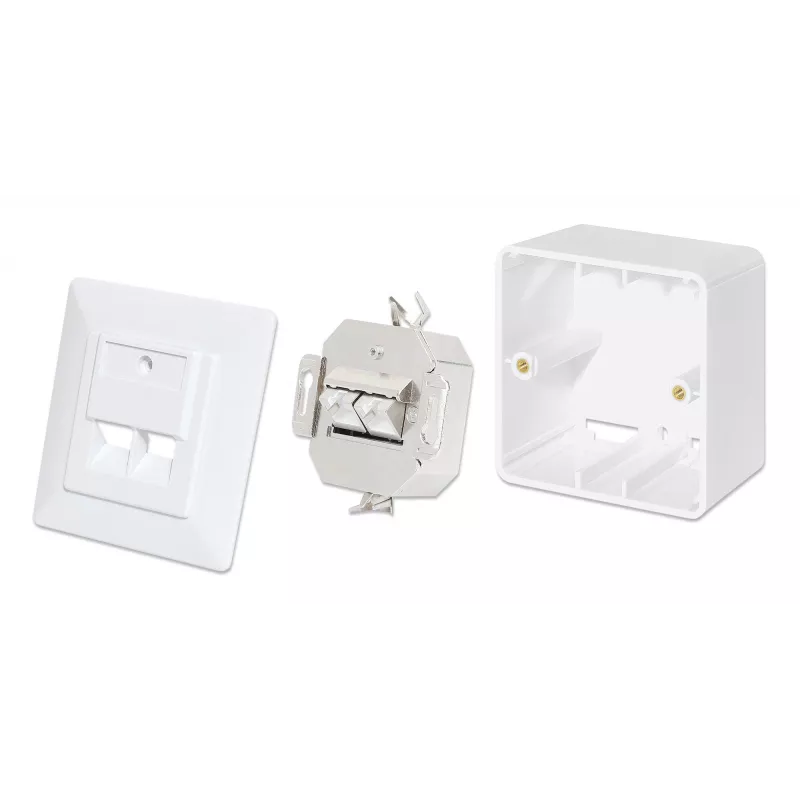

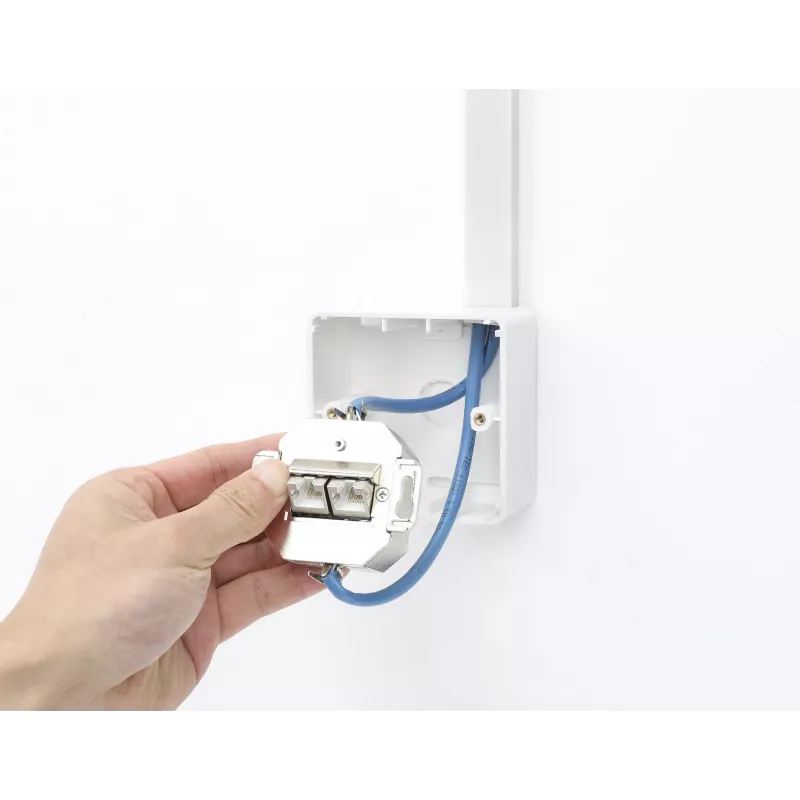

Position the pattress box on the chosen surface and mark the screw points using the built-in holes as a template. Fix the box to the surface with appropriate screws and plugs for the mounting substrate. Install the compatible Intellinet wall plate (771900 or 771917) into the box and secure it according to the wall plate instructions. Complete wiring and termination from the rear access as required.

Recommendations

For stable installation, use screws and wall plugs suitable for the mounting surface; check that the selected wall plate is one of the compatible Intellinet models (771900 or 771917). Ensure cable terminations meet Cat6/Cat6a standards when used with corresponding wall plates.
