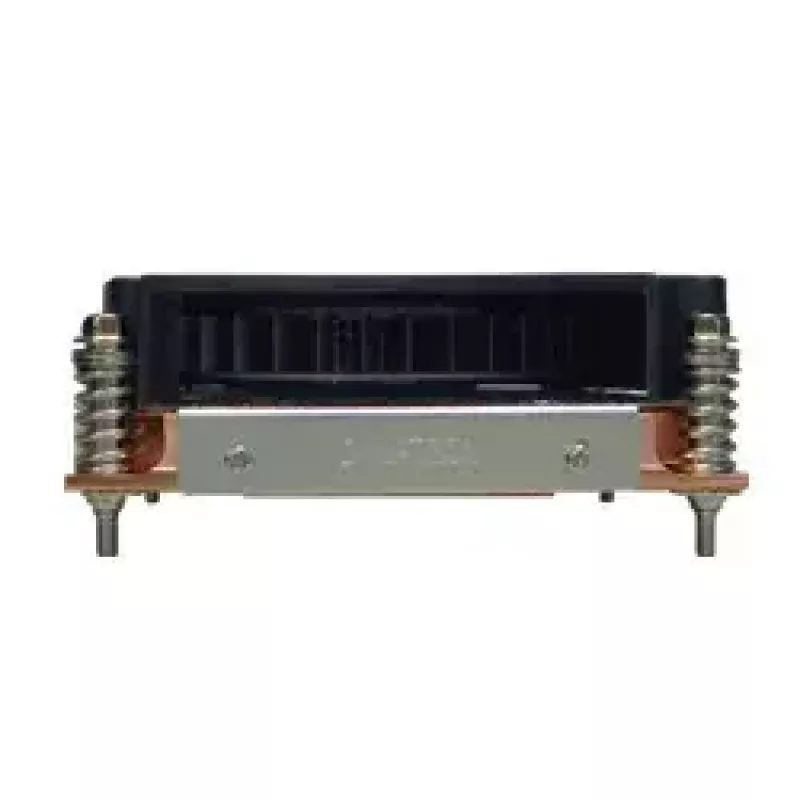

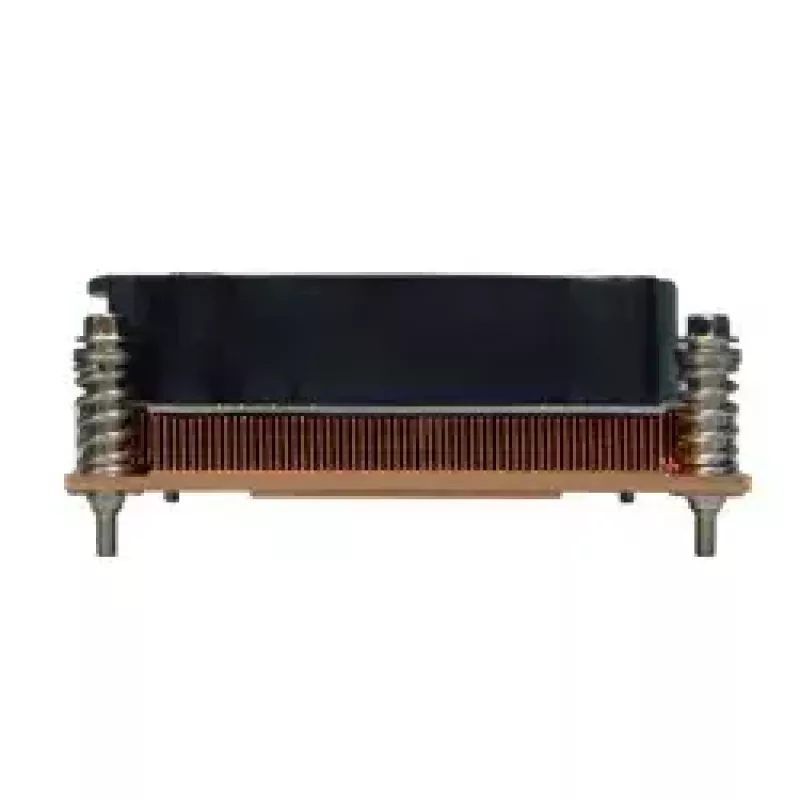

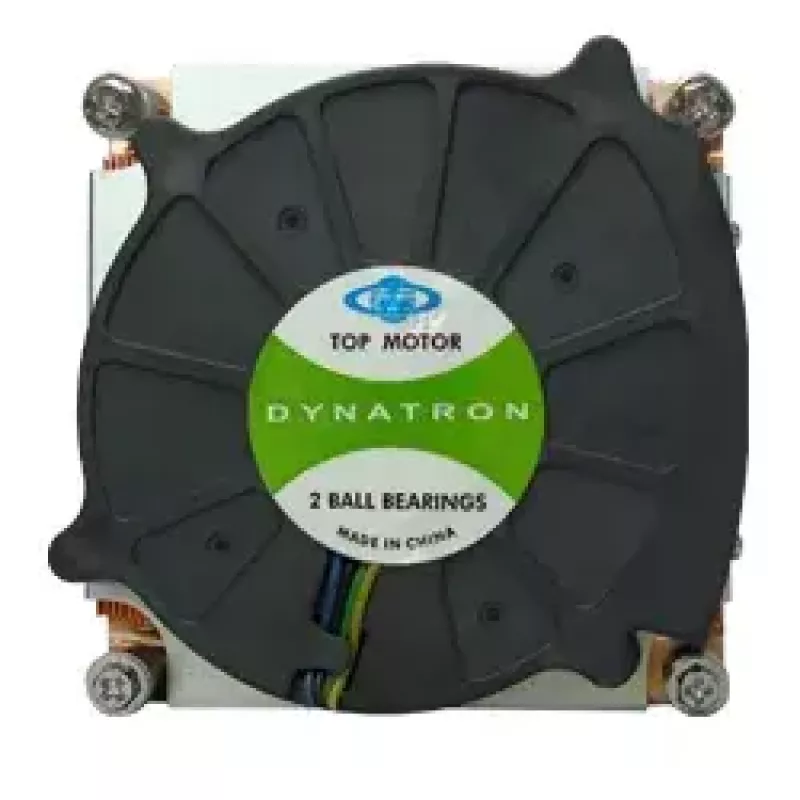

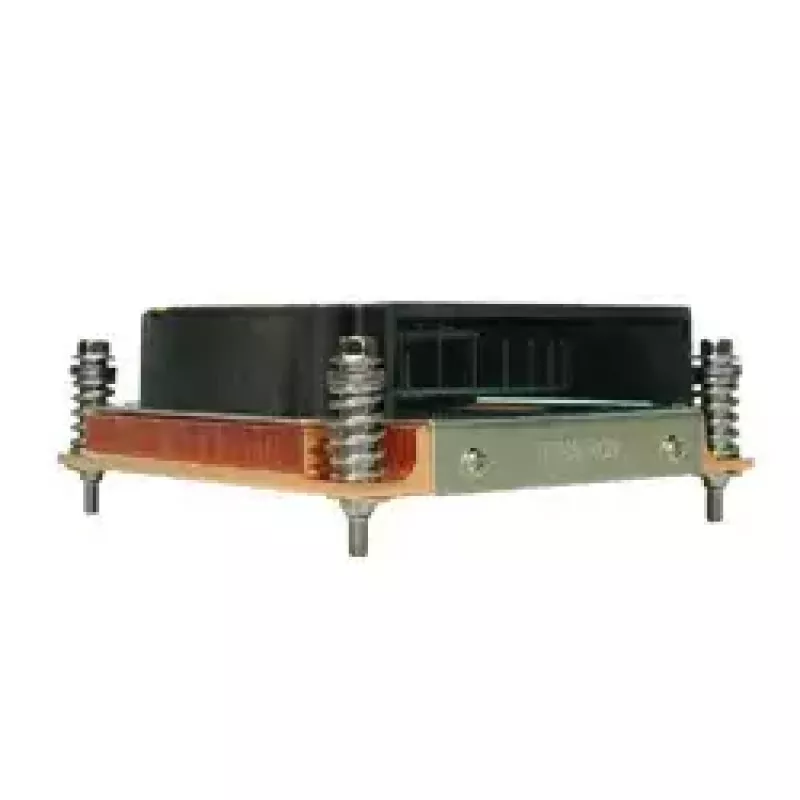

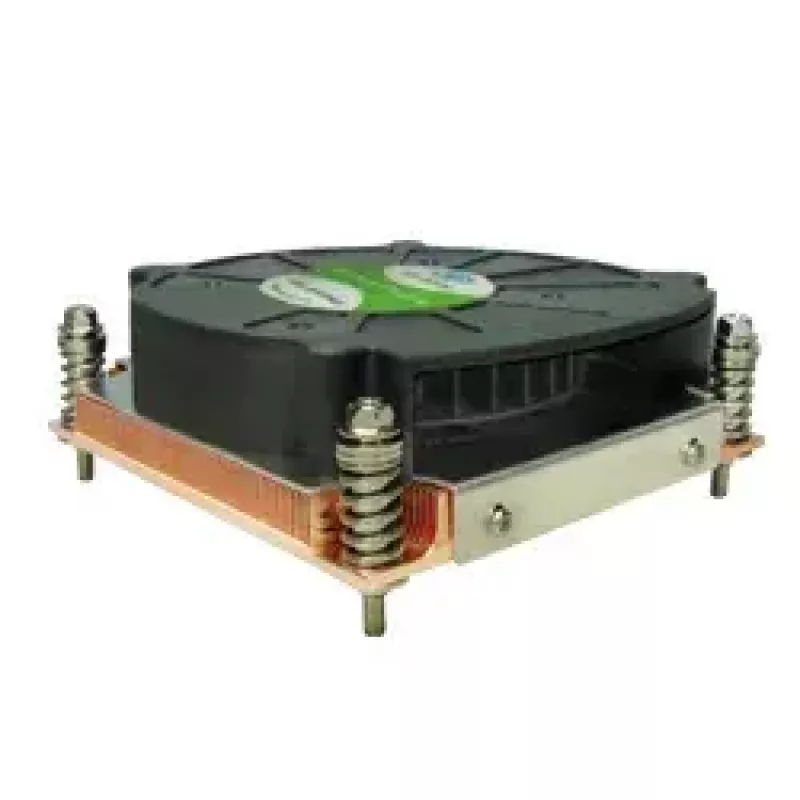

Dynatron K199 chladič procesora 8 cm

Dynatron K199 Processor Cooler 8 cm is a compact active cooler designed for Intel LGA1156 (Socket H) systems and 1U server applications. It features an 80 mm fan with a speed range from 1000 to 5000 RPM, operates at 12 V and offers a maximum air pressure of 36.168 mmH2O to maintain effective CPU temperatures in constrained spaces.

Advantages

The cooler combines a small footprint (85 x 81.5 x 28.5 mm) with a relatively high fan speed range, delivering targeted airflow and pressure suitable for CPUs in tight chassis. Its 80 mm fan provides a balance between cooling performance and compact size, and the unit's weight of 0.355 kg facilitates easy installation in systems where space and clearance are limited.

Suitable for

• Intel Core i5-750 based systems
• Intel Core i7-860 and i7-870 systems
• Intel Xeon 3400 series platforms
• 1U server environments and low-profile chassis

Key specifications

• Type: Cooler
• Fan diameter: 80 mm
• Fan speed: 1000–5000 RPM
• Maximum air pressure: 36.168 mmH2O
• Dimensions (W×D×H): 85 × 81.5 × 28.5 mm
• Operating voltage: 12 V
• Weight: 0.355 kg
• Supported sockets: LGA1156 (Socket H)

How to use

Install the Dynatron K199 onto the CPU socket following the motherboard and cooler manufacturer instructions for LGA1156. Ensure correct orientation and secure mounting in the 1U or low-profile case to maintain contact with the CPU heat spreader. Connect the fan to the appropriate 3- or 4-pin header on the motherboard or to a compatible power source rated for 12 V. Verify fan operation and monitor temperatures after first boot.

Recommendations

For reliable cooling in compact systems, keep airflow paths unobstructed and periodically clean dust from the fan blades and surrounding vents. Use this cooler on supported Intel CPUs (Core i5-750, Core i7-860/i7-870, Xeon 3400 series) and in 1U or other low-profile enclosures where a standard tower cooler will not fit.
