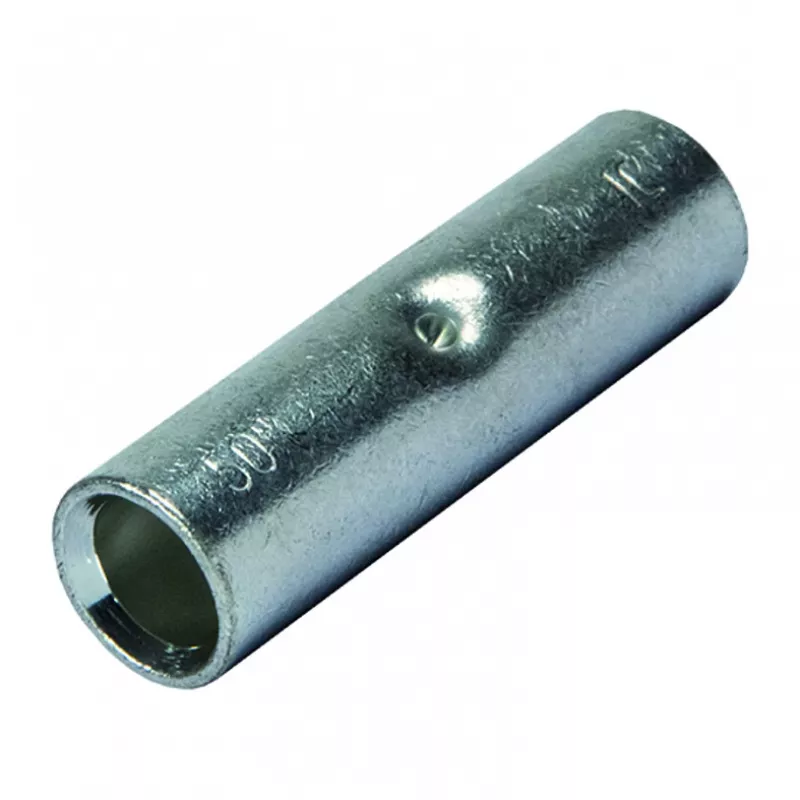

Intercable ICR16V spojka 16 mm² pocínovaná spojka so stredovým dorazom, R-séria

Butt connector engineered for permanent, low-resistance splices on 16 mm² copper conductors. The tinned E-Cu body and integrated center stop deliver consistent crimp positioning and excellent corrosion protection in demanding electrical installations.

Advantages

High-conductivity electrolytic copper ensures minimal voltage drop, while the tin plating guards against oxidation in humid or outdoor environments. The center stop prevents over-insertion, guaranteeing symmetrical crimps and reliable mechanical retention. Uninsulated design allows for custom heat-shrink or tape insulation to match application requirements.

Suitable for

• Stranded and solid copper conductors up to 16 mm²
• Automotive, marine, and industrial wiring harnesses
• Battery cable extensions and high-current splices
• Applications requiring vibration-resistant, corrosion-proof connections

Key specifications

• Connector type: Butt connector with center stop
• Cable cross-section: 16 mm²
• Material: Electrolytic copper (E-Cu), tinned
• Connection method: Crimp
• Insulation: Uninsulated
• Series: R-Series
• Operating temperature: -55°C to +150°C
• Overall length: Approx. 42 mm
• Inner diameter (cable entry): Approx. 5.8 mm
• Outer diameter: Approx. 8.5 mm

Recommendations

Use a calibrated hexagonal crimping tool sized for 16 mm² uninsulated terminals. After crimping, apply adhesive-lined heat-shrink tubing to seal against moisture and mechanical stress. For high-vibration environments, consider double crimping and strain relief.
