Akyga AK-SC-17 DC konektor samica 5,5 x 2,1 mm so skrutkovými svorkami pre UTP kábel, CCTV

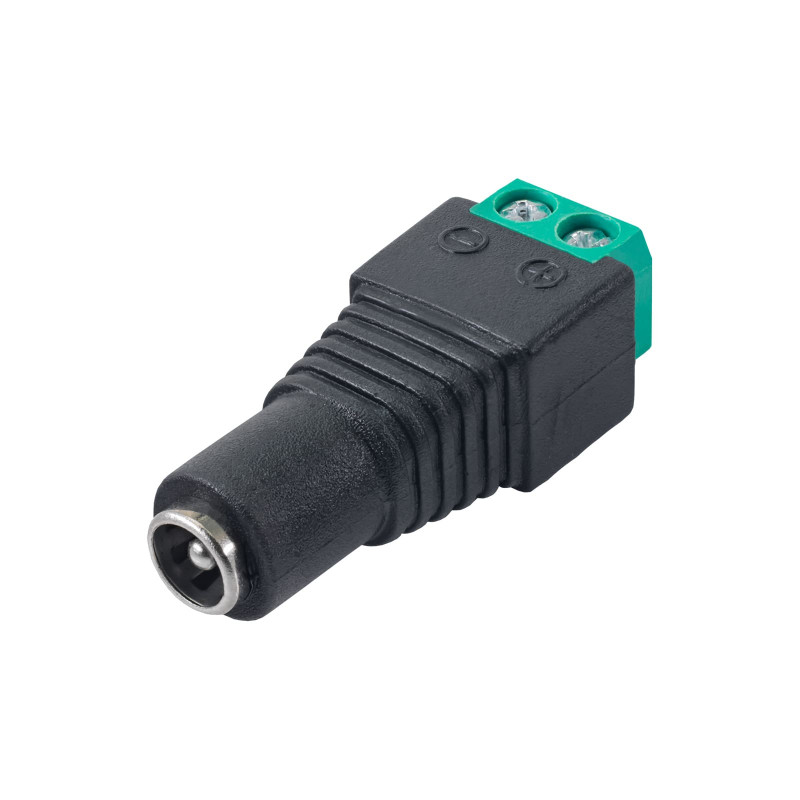

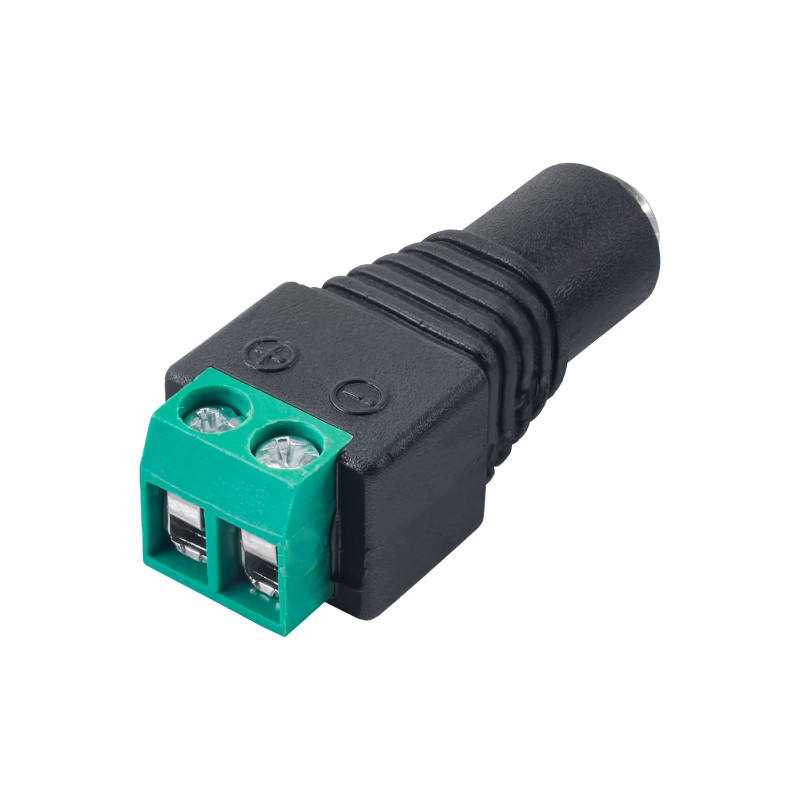

The Akyga AK-SC-17 is a quick coupler with a DC power socket (5.5 x 2.1 mm) and screw terminals, designed for connecting UTP cable. It allows extending a power cable without soldering by inserting insulated wires into the terminals and tightening them with a screwdriver. The screw connections are marked with "+" and "-" on the top of the insulating casing.

Key features

• Quick coupler with DC power socket 5.5 x 2.1 mm
• Screw terminals for UTP cable connection
• Enables power cable extension without soldering
• Polarity markings "+" and "-" on the casing

Specifications

• Brand: Akyga
• MPN: AK-SC-17
• Product type: Connector
• Output connector: Twisted 2-pin
• Power inlet: 5.5 x 2.1 mm
• Product size (L x W x H): 40 x 13 x 13 mm
• Net weight: 5.9 g
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720134417
