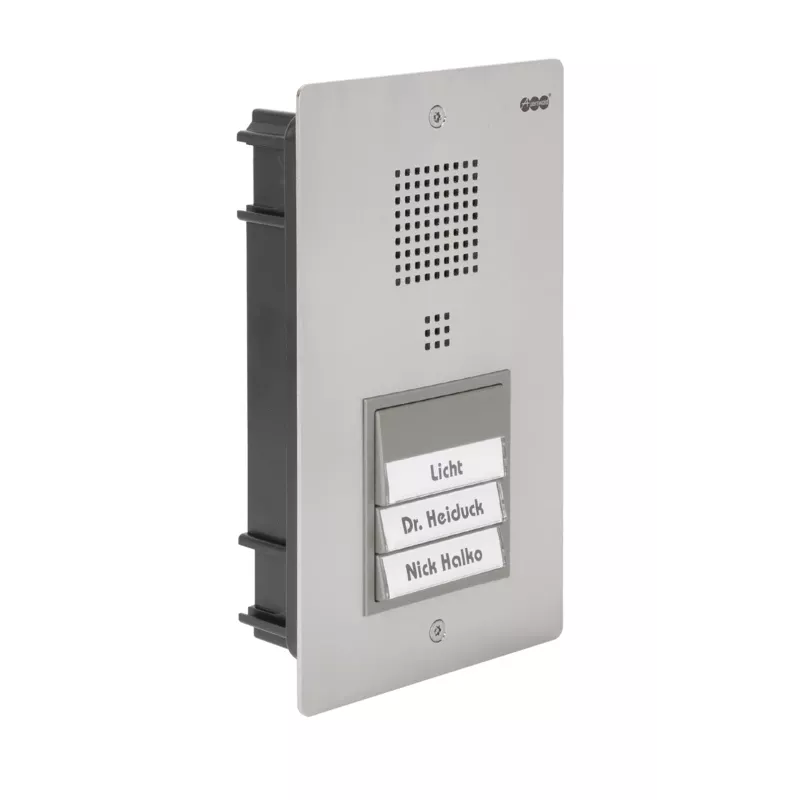

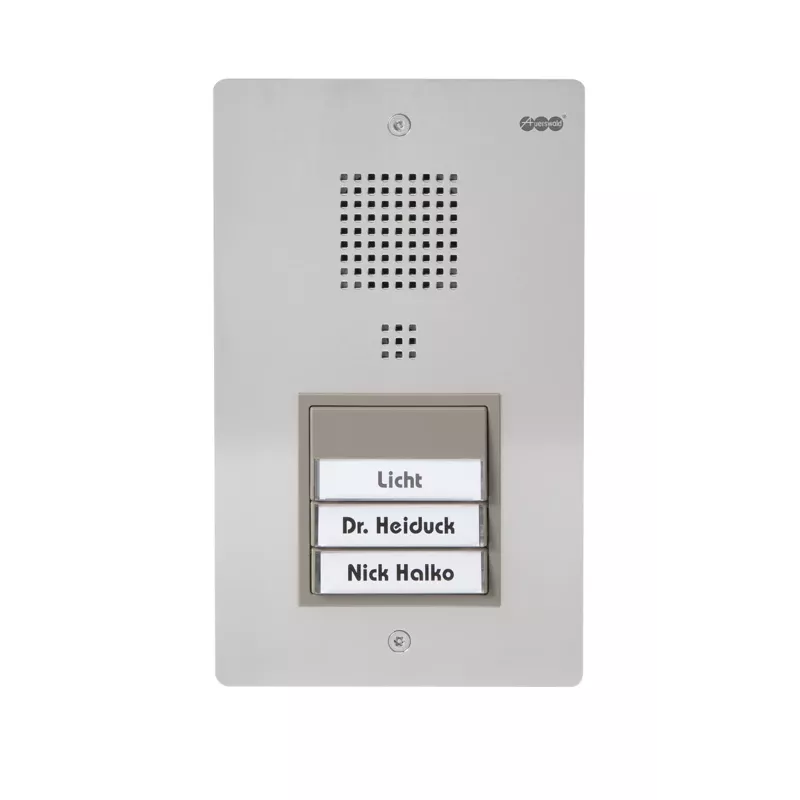

Interkom/ovládací panel Auerswald TFS-Dialog 313 — 3-tlačidlový panel, model 90057

Auerswald TFS-Dialog 313 — 3-button station, model 90057 is a compact intercom and control panel designed for integration with compatible communication and access systems. The unit provides three programmable push-buttons that can be assigned to calling, door release, or other control functions. The slim housing and minimal interface make the panel suitable for installations where a small, reliable intercom station is required, such as small offices, residential entrances, or service counters.

Advantages

The TFS-Dialog 313 offers a simple physical interface with three individually programmable buttons, enabling flexible assignment of calls or control commands. Its compact form factor allows installation in limited spaces while maintaining easy user access. The device is built to integrate with existing Auerswald-compatible systems and supports basic access and intercom functionality without unnecessary complexity.

Suitable for

• Door entry panels for small residential buildings
• Intercom stations for small offices and service points
• Access control points requiring a minimal user interface
• Integration into existing Auerswald communication systems

Key specifications

• Three programmable push-buttons for calling or control
• Compact surface-mount or flush-mount compatible housing dimensions for limited-space installation
• Wired connection compatible with Auerswald communication and access systems
• Durable front panel designed for frequent user interaction
• Basic status indication via button illumination or integrated LEDs (depending on system configuration)

How to use

Install the Auerswald TFS-Dialog 313 according to the system wiring diagram provided by the communication system manufacturer. Connect the unit to the compatible Auerswald base system or door control module, configure each of the three buttons in the central system software or control unit to assign call targets or control commands, and verify operation by performing test calls and control actions. Ensure that wiring and power meet the specifications of the host system and that any required configuration in the central management interface is completed before regular use.

Recommendations

Place the station at a convenient height for users and protect wiring connections in accordance with local electrical codes. Use the central system configuration tools to assign meaningful functions to each button and to set LED or illumination behavior where supported. For installations exposed to weather or vandal risk, select an appropriate mounting option and protective enclosure as required by the installation environment.
