Interný napájací kábel Akasa AK-CBPW10-15BK 0,15 m PCI-E 8-pin ATX 4-pin

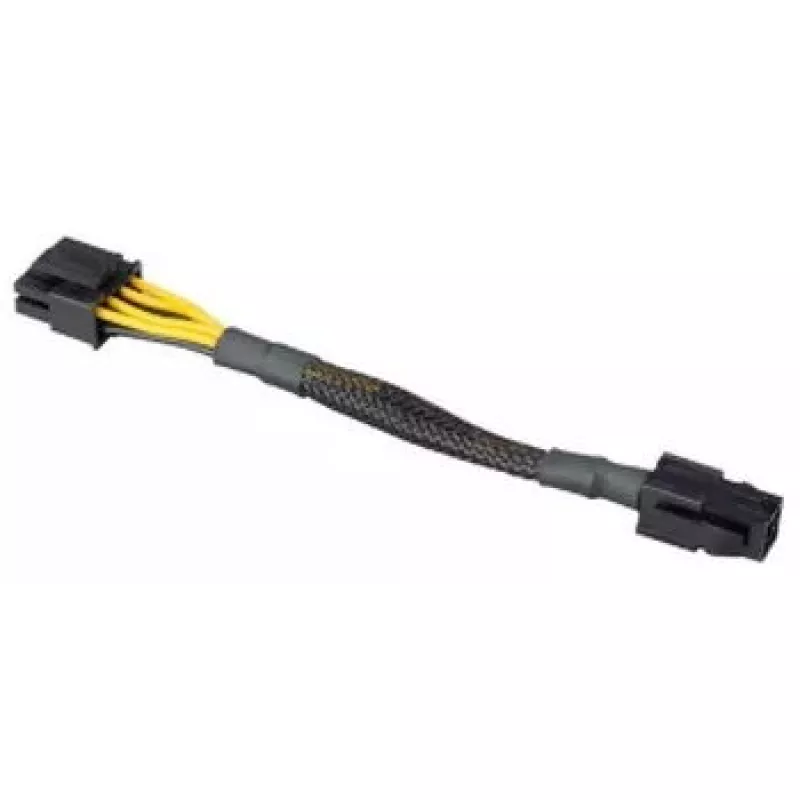

The Akasa AK-CBPW10-15BK is a 0.15 m internal power cable that converts a PSU 4-pin ATX 12V female connection to an 8-pin (4+4) PCI‑E male connector. Its compact length and black sleeve help maintain a tidy internal layout while providing the required power connection between older power supplies and components requiring an 8‑pin PCI‑E input.

Advantages

The cable provides a simple, single-cable solution to adapt a 4‑pin ATX 12V output to an 8‑pin (4+4) PCI‑E input without modifying the PSU. The 15 cm length is suitable for close-quarter routing inside standard PC cases, and the black sleeve improves durability and cable management. Connectors match common PSU and component pinouts to ensure correct power delivery.

Suitable for

• Connecting a PSU with a 4‑pin ATX 12V female output to devices requiring an 8‑pin (4+4) PCI‑E input
• Small form‑factor or compact PC builds where short internal cables are needed
• Temporary or retrofit power connections when upgrading graphics cards or add‑on cards

Key specifications

• Cable length: 0.15 m

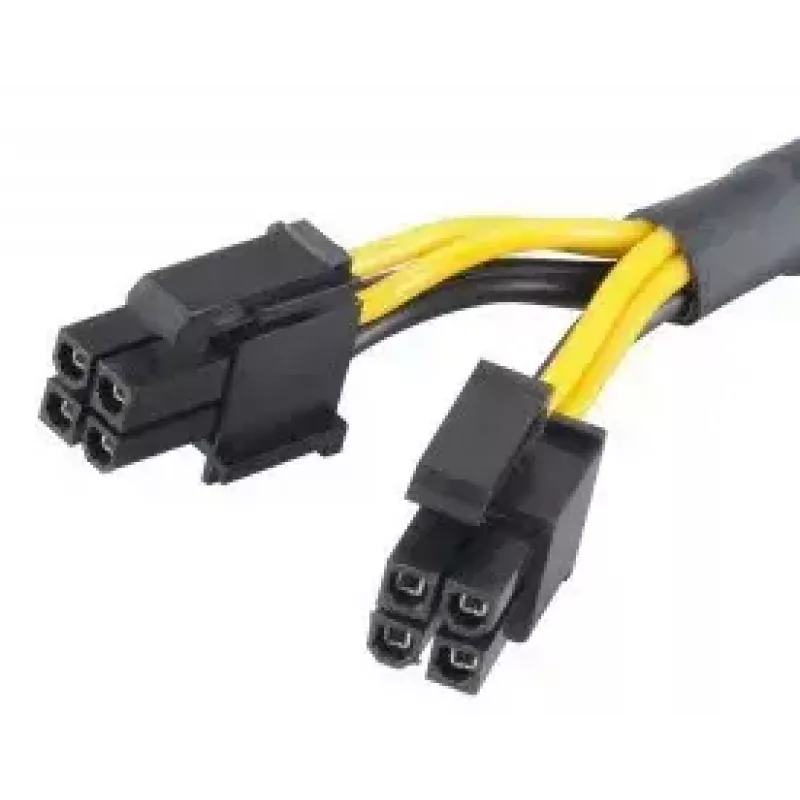

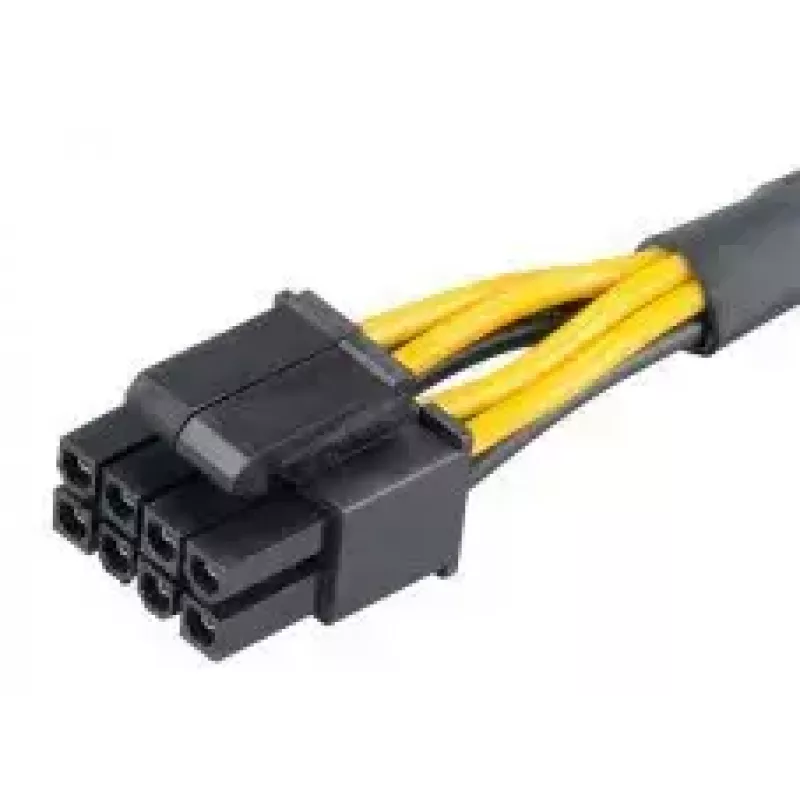

• Connector 1: PCI‑E (8‑pin, 4+4 male)

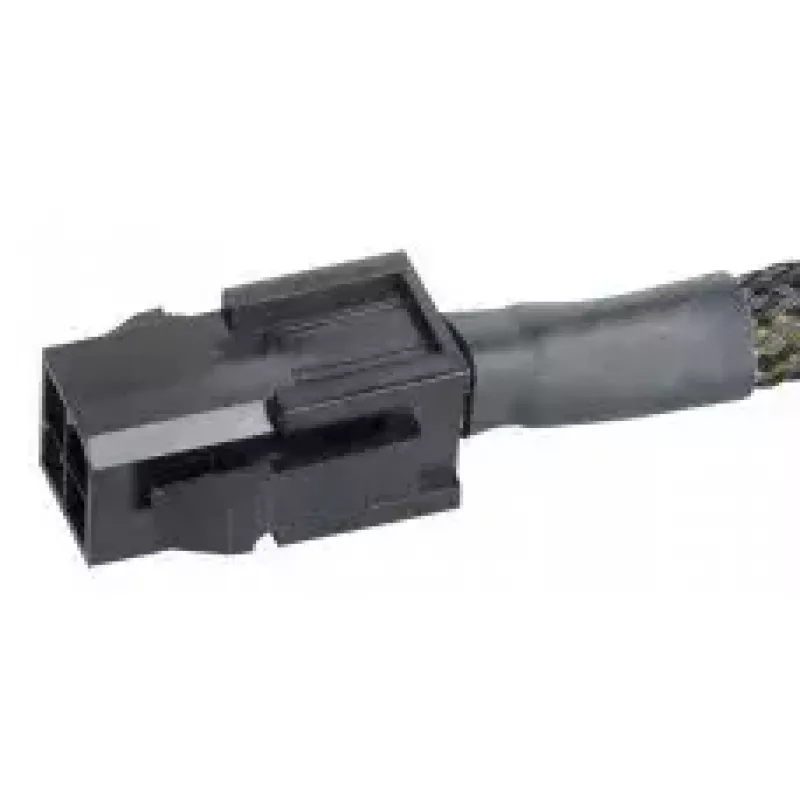

• Connector 2: ATX (4‑pin female, ATX 12V)
• Product colour: Black
• Manufacturer: Akasa, MPN AK‑CBPW10‑15BK, EAN 4710614531598

How to use

Align the 4‑pin ATX connector with the PSU 4‑pin 12V female socket and insert fully. Attach the 8‑pin (4+4) PCI‑E male connector to the corresponding 8‑pin input on the target device, ensuring correct orientation and secure seating. If the 8‑pin connector splits, combine the two 4‑pin halves as required by the device. Do not force connectors; confirm pin alignment before powering the system.

Recommendations

Use this adapter only when the PSU and target device specifications allow the necessary current draw. Avoid using the cable as a permanent substitute for a properly matched power supply; verify power requirements of graphics cards or add‑on devices to prevent overloading the PSU.
