Interný USB kábel GRAUGEAR G-AD-ETC-10G 0,5 m USB 3.2 Gen 2 Type-E

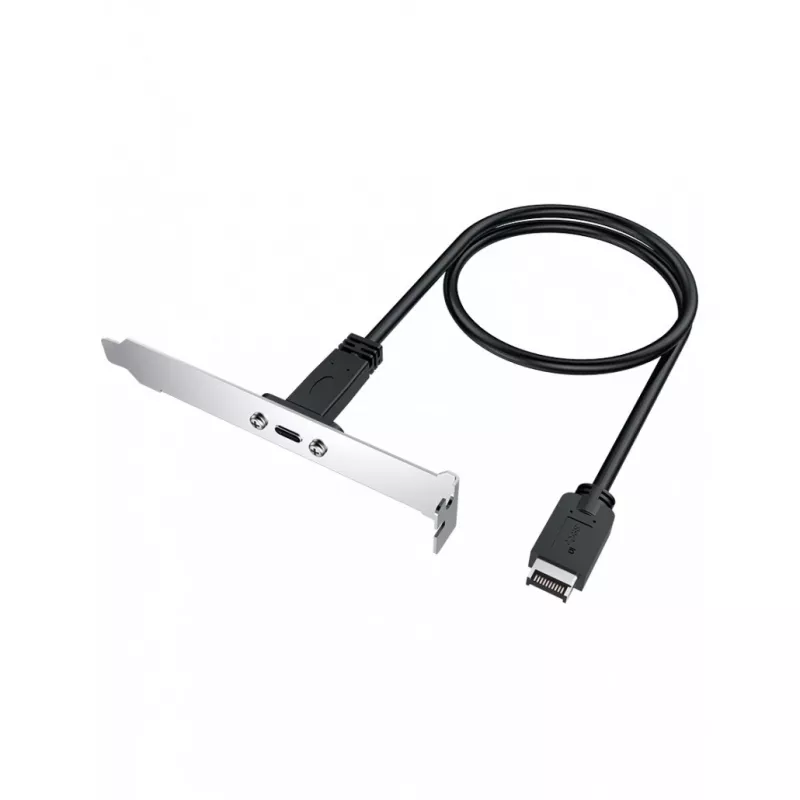

The GRAUGEAR G-AD-ETC-10G is a 0.5 m internal USB cable that adds a Type-C® port to a PC via a 20-pin Type-E motherboard header. It supports USB 3.2 Gen 2 (also known as USB 3.1 Gen 2) with data transfer speeds up to 10 Gbit/s and power delivery up to 100 W, providing a compact solution for integrating a front or rear Type-C connector into a system.

Advantages

The cable enables high-speed data transfer and up to 100 W power delivery using a single internal connection, making it suitable for modern peripherals. Its 20-pin Type-E plug connects directly to a compatible motherboard header, while the external USB Type-C port mounts via a standard PCI bracket for easy installation. The 0.5 m length balances internal routing convenience and signal integrity for typical PC chassis layouts.

Suitable for

• Adding a front- or rear-mounted USB Type-C port to a desktop PC
• Systems that require USB 3.2 Gen 2 (10 Gbit/s) internal connections
• Integrations where up to 100 W power delivery is needed for connected devices

Key specifications

• Cable length: 0.5 m
• Standard: USB 3.2 Gen 2 (USB 3.1 Gen 2)
• Maximum data rate: up to 10 Gbit/s
• Maximum power delivery: up to 100 W
• Connector 1: 20-pin USB Type-E (internal motherboard header)
• Connector 2: USB Type-C (external port on bracket)
• Manufacturer: GRAUGEAR, MPN G-AD-ETC-10G, EAN 4260746550221

How to use

Power off the PC and disconnect it from the mains. Plug the 20-pin Type-E connector into the corresponding USB Type-C header on a compatible motherboard, route the cable inside the chassis to the desired PCI bracket location, then secure the bracket in a free PCI slot. Reconnect power and boot the system; the Type-C port will be available to the operating system if the motherboard supports USB 3.2 Gen 2 on that header.

Recommendations

Ensure the motherboard has a compatible 20-pin Type-E USB header and that the connected devices are within the cable’s power and data specifications. For optimal performance, keep the cable length and routing away from sources of strong electromagnetic interference and follow the motherboard manufacturer’s installation guidelines.
