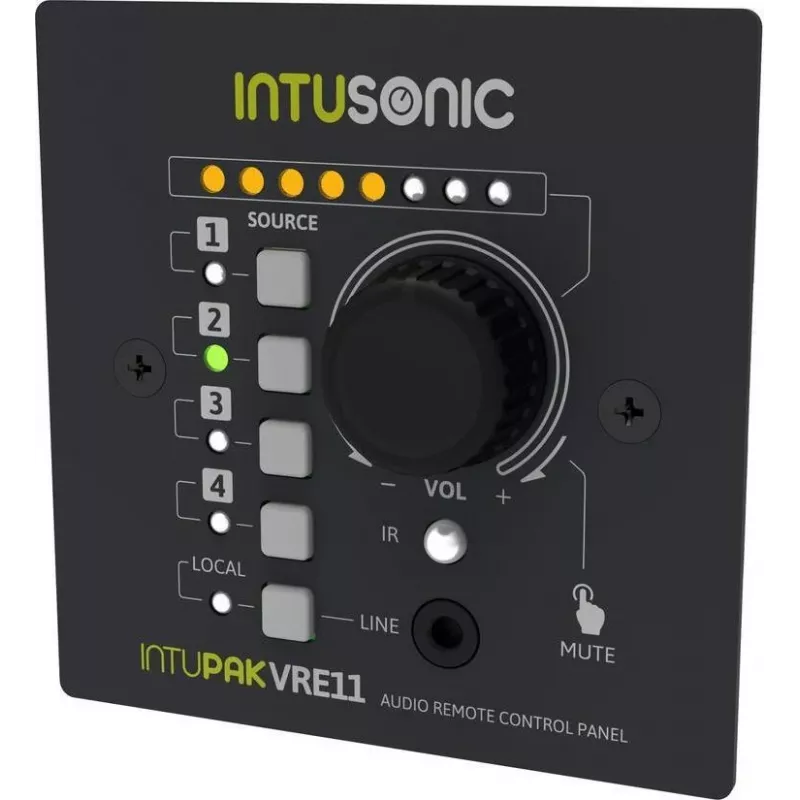

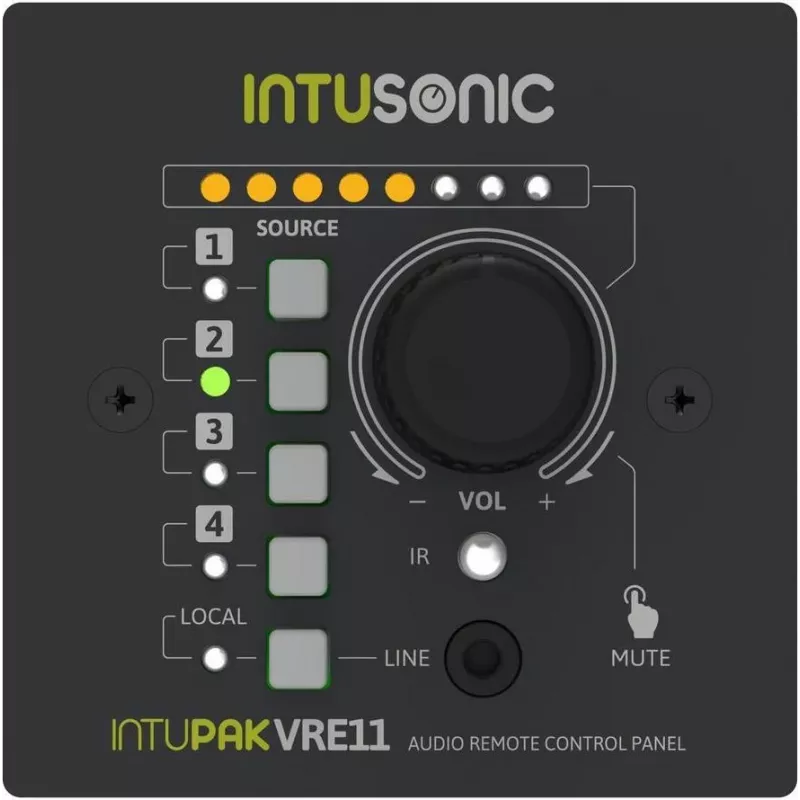

INTUSONIC VRE11 ovládací panel pre zosilňovač VRA1100 12604179

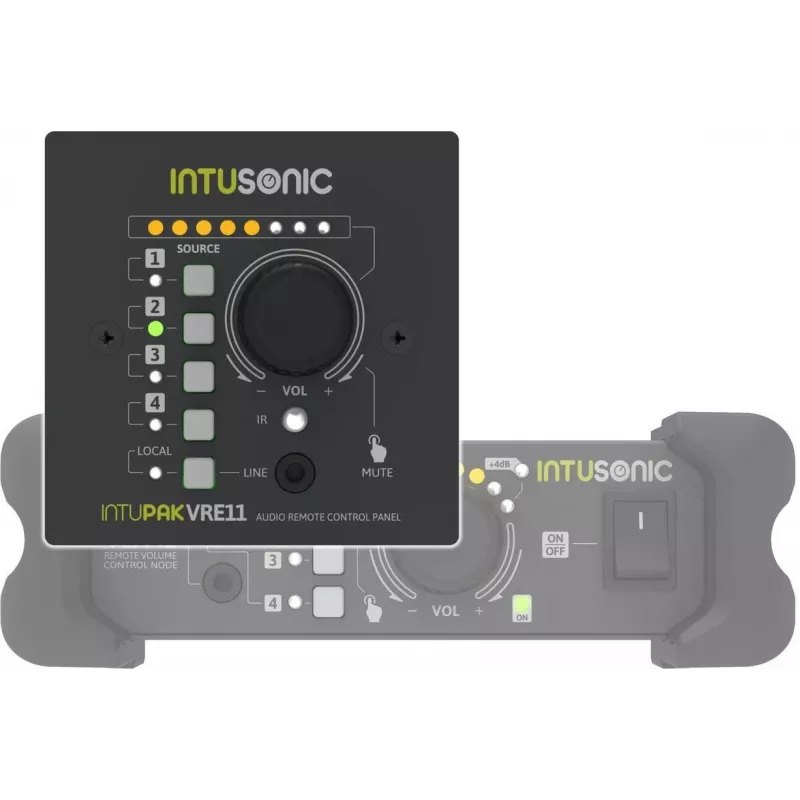

Managing your Intusonic VRA1100 amplifier from across the room can be inconvenient. The INTUSONIC VRE11 Remote Control Panel solves this by putting essential controls at your fingertips, wherever you need them. This wired panel connects directly to the amplifier via a standard RJ45 cable, providing reliable control without wireless interference.

Who is it for

This remote panel is ideal for installers and users who need convenient access to amplifier controls in fixed installations such as conference rooms, classrooms, or hospitality venues. It is perfect for situations where the amplifier is mounted out of reach, but volume and input adjustments are frequently required.

Main features

• Controls volume, input selection, mute, and power for the VRA1100
• Rotary encoder for precise volume adjustment
• Four selectable inputs (A, B, C, D) with LED indicators
• Connects via standard RJ45 (Cat5e/Cat6 cable required, not included)
• Powered directly from the amplifier over the RJ45 connection
• Wall-mountable in a standard EU single gang box
• Durable ABS plastic housing in black

Specifications

• Product type: Wired remote control panel
• Compatibility: Intusonic VRA1100 amplifier
• Control functions: Volume, input selection, mute, power on/off
• Volume control mechanism: Rotary encoder
• Input selection: 4 inputs (A, B, C, D)
• Connection interface: RJ45 (Ethernet-style)
• Power method: Power over RJ45 from amplifier
• Indicators: LED status indicators for selected input
• Mounting type: Wall-mountable (standard EU single gang box compatible)
• Housing material: ABS plastic
• Colour: Black
• Communication protocol: Proprietary digital
• Cable requirement: Standard Cat5e/Cat6 UTP cable (not included)
• Operating environment: Indoor use only
• Number of control elements: 1 rotary encoder, 6 push buttons

Tips

For a clean installation, run a Cat5e or Cat6 cable from the amplifier location to the desired wall box before mounting the panel. The panel is powered by the amplifier, so no separate power supply is needed. Ensure the amplifier is turned off before connecting the panel.
