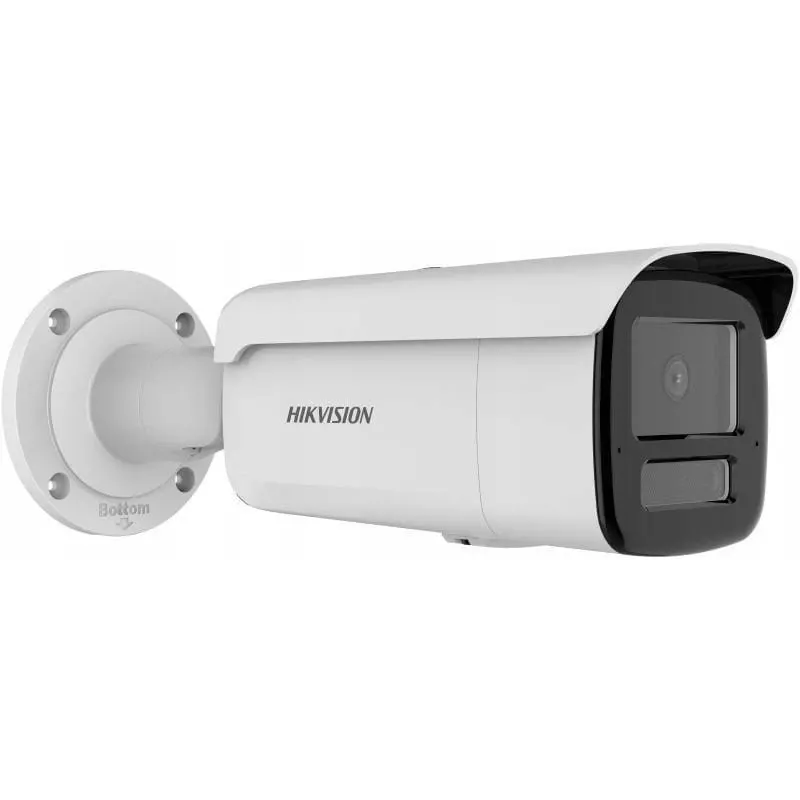

IP bezpečnostná kamera Hikvision DS-2CD2T43G2-2LI 4 MP, 4 mm objektív, PoE, IR 60 m, WDR 120 dB, IP67

Certification: FCC (47 CFR 15, B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: 6, 2016) KC (KN 32: 2015, KN 35: 2015) | Password reset via email: Yes | User access level: Administrator, Operator, User | Warnings: The product contains electronic components do not dispose of with the normal household waste. | Warnings: Avoid direct contact with water to prevent electrical damage. | Warnings: Ensure that the product is properly installed and protected against falling. | Network access storage (NAS): Yes | Flash log: Yes | Compliance certificates: REACH | Compliance certificates: WEEE | Automatic Network Replenishment (ANR): Yes | Compliance certificates: Low Voltage Directive (LVD) | Compliance certificates: Federal Communications Commission (FCC) | Audit log: Yes | Number of Privacy masking areas: 8 | Digest authentication: Yes | Pixel counter: Yes | Compliance certificates: RoHS | Compliance certificates: CE | Lens viewing angle, diagonal: 100° | Human and vehicle targets classification: Yes | Number of simultaneous live view channels: 6 channels | Lens viewing angle, horizontal: 84° | Lens viewing angle, vertical: 45° | Mounting type: Ceiling/wall | Video motion detection: Yes | Privacy masking: Yes | Gain control type: Auto | Password protection: Yes | Identify distance: 7 m | Fixed focal length: 4 mm | Video compression formats: H.265+ | Number of lenses: 1 | IP address filtering: Yes | Closest focusing distance: 1.5 m | Number of sensors: 1 | Night vision: Yes | Day/night mode: Yes | Power consumption (Power over Ethernet (PoE)): 8.5 W | Infra-red wavelength: 850 nm | Video compression formats: M-JPEG | Privacy protection: Yes | Video compression formats: H.264 | Mirror: Yes | HTTPS encryption: Yes | Video compression formats: H.265 | Video streaming: Yes | Placement supported: Outdoor | Number of languages: 33 | Sensor type: CMOS | Video compression formats: H.264+ | Infrared (IR) cut-off filter: Yes | Dynamic range: 120 dB | Behavior analysis: Line crossing detection | Active tampering alarm: Yes | DC output current: 0.58 A | Recognize distance: 15 m | Web browser: Yes | Live view: Yes | DC output voltage: 12 | Languages support: Multi | Video recording: Yes | Heartbeat: Yes | Number of users: 32 user(s) | Type: IP security camera | Ethernet LAN (RJ-45) ports: 1 | Storage relative humidity (H-H): 0 - 95% | Operating relative humidity (H-H): 0 - 95% | Power consumption (max): 7 W | Product colour: White | Web-based management: Yes | Weight: 1.11 kg | Operating temperature (T-T): -30 - 60 °C | Width: 93.1 mm | Maximum resolution: 2688 x 1520 pixels | Security algorithms: HTTPS | Pan range: 0 - 360° | Supported graphics resolutions: 640 x 480 (VGA) | Bluetooth: No | Power source type: DC, PoE | Reset button: Yes | Package width: 386 mm | Package depth: 156 mm | Storage temperature (T-T): -30 - 60 °C | Form factor: Bullet | Supported graphics resolutions: 640 x 360 | Networking standards: IEEE 802.1x | Night vision distance: 60 m | Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | Package height: 155 mm | Security algorithms: TLS | Tilt angle range: 0 - 90° | Built-in light: Yes | Supported graphics resolutions: 2688 x 1520 | Supported graphics resolutions: 1280 x 720 (HD 720) | Compatible memory cards: MicroSDHC | Total megapixels: 4 MP | Networking standards: IEEE 802.3af | International Protection (IP) code: IP67 | Highlight Compensation (HLC): Yes | Back Light Compensation (BLC): Yes | Built-in HDD: No | Wi-Fi: No | Height: 88.7 mm | Signal-to-Noise Ratio (SNR): 52 dB | Maximum memory card size: 512 GB | Card reader integrated: Yes | Number of cameras: 1 | Connectivity technology: Wired | Bit rate: 32 Kbps - 8 Mbps | IK code: IK10 | Housing material: Metal | Detect distance: 78 m | Noise reduction: Yes | Minimum illumination: 0 lx | Compatible memory cards: MicroSDXC | Compatible memory cards: MicroSD (TransFlash) | Region of Interest (ROI) encoding: Yes | Length: 286.7 mm | Maximum aperture number: 1.6 | LED type: IR/White | Protection features: Waterproof | Client interoperability: iVMS-4200, Hik-Connect, Hik-Central | Progressive scan: Yes | Optical sensor size: 25.4 / 2.9 mm (1 / 2.9") | Noise reduction technology: 3D noise reduction | Observe distance: 31 m | Wide Dynamic Range (WDR): Yes | Package weight: 1.64 kg | Camera shutter speed: 1/3 - 1/100000 s | Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ | Supported graphics resolutions: 1920 x 1080 (HD 1080) | Ethernet interface type: Fast Ethernet | Ethernet LAN: Yes | Angle of rotation: 360° | Frame rate: 30 fps | Quality of Service (QoS) support: Yes

How to use

Mount the camera at a stable location that provides the planned field of view, observing the recommended distance and angles for identification and detection. Connect the device to a network switch or NVR using a Cat5e/Cat6 cable; power it via PoE (IEEE 802.3af) or an external 12 V DC supply if PoE is not available. Configure network settings and enable ONVIF or manufacturer API access through the web-based management interface. Set video parameters such as resolution, frame rate, bit rate control, WDR and IR behavior, and configure motion detection or the intrusion/line crossing analytics to match the monitored area. Insert a microSD card (up to 512 GB) if local recording is required and format it via the camera’s storage settings.

Recommendations

Place the camera so that the most important scene elements (entrances, lanes, high-value areas) are within the optimal detection and identification distances. Use PoE for simplified cabling and ensure proper sealing of cable entries to maintain IP67 protection. Regularly check firmware updates and configure secure passwords and IP address filtering to reduce network access risks. For long-term archival, combine local microSD storage with network VMS or NVR recording to ensure redundancy.
