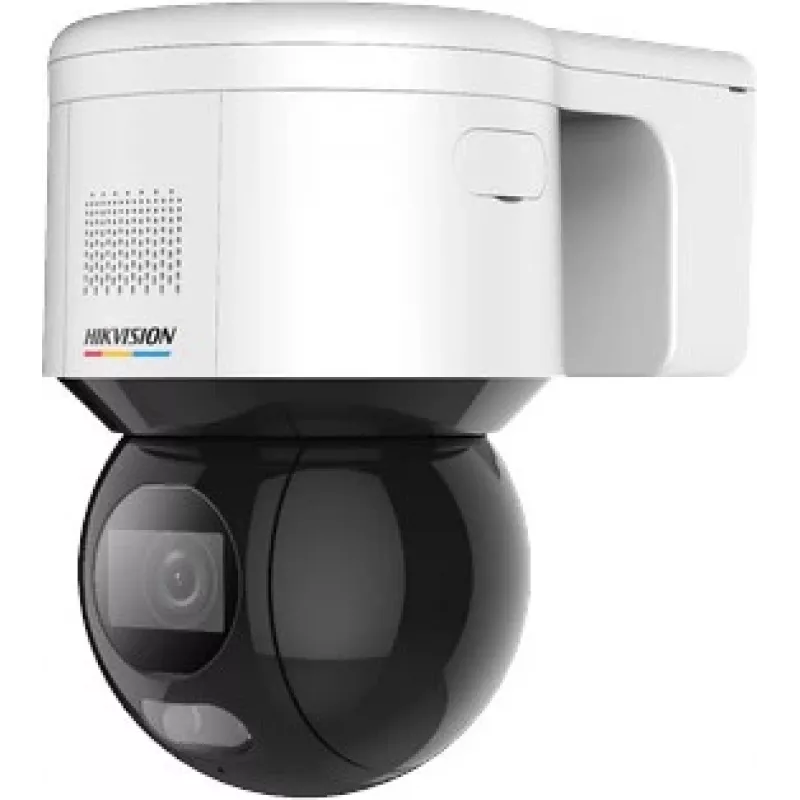

IP bezpečnostná kamera Hikvision DS-2DE3A400BW-DE(F1)(S5) Dome

The Hikvision DS-2DE3A400BW-DE(F1)(S5) Dome is an IP security camera designed for indoor and outdoor surveillance. It captures video at a resolution of 2560 x 1440 pixels with a CMOS sensor and supports up to 30 fps. The dome form factor and ceiling/wall mounting options make it suitable for fixed installations where discreet yet reliable monitoring is required. The camera provides a wide horizontal field of view of 88.7° and a vertical angle of 46.5°, and includes 16x digital zoom and a fixed 4 mm focal length for general-purpose coverage.

Advantages

The camera offers high-resolution imaging and smooth frame rates for clear footage useful in security monitoring. Its dome design and two-color housing (black and white) allow integration into different environments while protecting internal components. Wired Ethernet connectivity ensures stable network transmission and supports features such as video motion detection for event-triggered recording or alerts. With support for both indoor and outdoor placement and straightforward ceiling or wall mounting, it suits a variety of installation scenarios.

Suitable for

• General indoor surveillance in offices, shops, and public buildings
• Outdoor coverage of entryways, parking areas, and perimeter zones
• Areas requiring continuous monitoring with event detection
• Fixed-location monitoring where discreet dome form factor is preferred

Key specifications

• Resolution: 2560 x 1440 pixels
• Frame rate: Up to 30 fps
• Sensor type: CMOS
• Focal length: Fixed 4 mm
• Digital zoom: 16x
• Horizontal field of view: 88.7°; Vertical field of view: 46.5°
• Connectivity: Wired Ethernet LAN
• Video analytics: Motion detection supported
• Placement: Indoor and outdoor
• Mounting: Ceiling or wall
• Product colours: Black and white
• Weight: 1.125 kg

How to use

Install the dome camera on a suitable ceiling or wall surface following the mounting instructions provided by the manufacturer. Connect the camera to a wired Ethernet network to provide power (if using PoE) and data transmission, and integrate it into your network video recorder (NVR) or video management system. Configure resolution, frame rate, motion detection zones and recording schedules through the camera’s web interface or management software. Position the camera to cover the intended area, use the fixed 4 mm lens and digital zoom to adjust framing within the camera’s optical limits, and verify image quality and detection settings after installation.

Recommendations

For reliable outdoor performance, mount the camera under appropriate shelter or use recommended sealing accessories to minimise exposure to weather. Use wired Ethernet with PoE where possible to ensure stable power and network connectivity. Configure motion detection sensitivity and notification settings to reduce false alarms and ensure useful recorded events.
