IP rekordér Hikvision DS-7608NI-Q1(E)

The Hikvision DS-7608NI-Q1(E) is an 8-channel NVR from the Q series in a 1U chassis. It supports up to 8 IP camera inputs and features H.265+/H.265/H.264+/H.264 video formats.

Key features

• 8-channel IP video input
• Supported video formats: H.265+/H.265/H.264+/H.264
• Decoding capacity: up to 2 channels @ 8 MP / 4 channels @ 4 MP / 8 channels @ 1080p
• Incoming bandwidth up to 80 Mbps
• Motion Detection 2.0 with human/vehicle analysis for 4 channels
• HDMI output: 1-channel, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA output: 1-channel, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Simultaneous HDMI/VGA output
• Audio output: 1-channel, RCA (linear, 1 KΩ)
• Two-way audio: 1-channel, RCA (2.0 Vp-p, 1 KΩ)
• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Audio compression: G.711ulaw/G.711alaw/G.722/G.726
• Decoding: AI&4K Off: 8-ch@1080p(30fps); AI/4K On: 6-ch@1080p(30fps)
• Synchronous playback: 8-channel
• Remote connections: 32
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• SATA: 1 SATA interface
• Capacity: up to 8TB for each disk
• USB: 2 × USB 2.0
• Alarm I/O: N/A (4/1 is optional)
• Power supply: 12 VDC or ≤ 18 W
• Power consumption: ≤ 10 W (without PoE enabled)
• Operating temperature: -10 to +55 °C (+14 to +131 °F)
• Operating humidity: 10 to 90 %

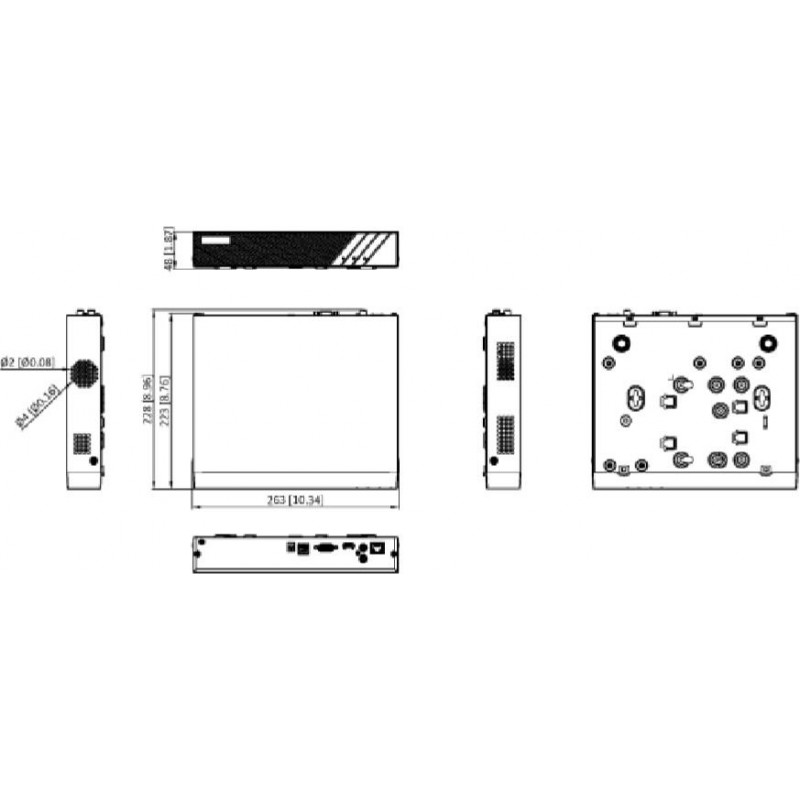

• Dimensions (W × D × H): 263 × 223 × 48 mm (10.34" × 8.76" × 1.87")
• Weight: ≤ 1.5 kg (3.3 lb)
• Certification: CE55032/55035/61000-3-2/61000-3-3/50130-4

Specifications

• Brand: Hikvision
• MPN: DS-7608NI-Q1(E)
• Model: DS-7608NI-Q1(E)
• Series: Q
• Form factor: 1U
• IP video input: 8-channel
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 80 Mbps
• Video output: HDMI, VGA
• Audio output: 1-channel RCA
• Two-way audio: 1-channel RCA
• Decoding formats: H.265+, H.265, H.264+, H.264
• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Network interface: 1 RJ-45 10/100 Mbps
• SATA: 1 interface
• USB: 2 × USB 2.0
• Power supply: 12 VDC or ≤ 18 W
• Power consumption: ≤ 10 W
• Operating temperature: -10 to +55 °C
• Operating humidity: 10 to 90 %
• Dimensions: 263 × 223 × 48 mm
• Weight: ≤ 1.5 kg
