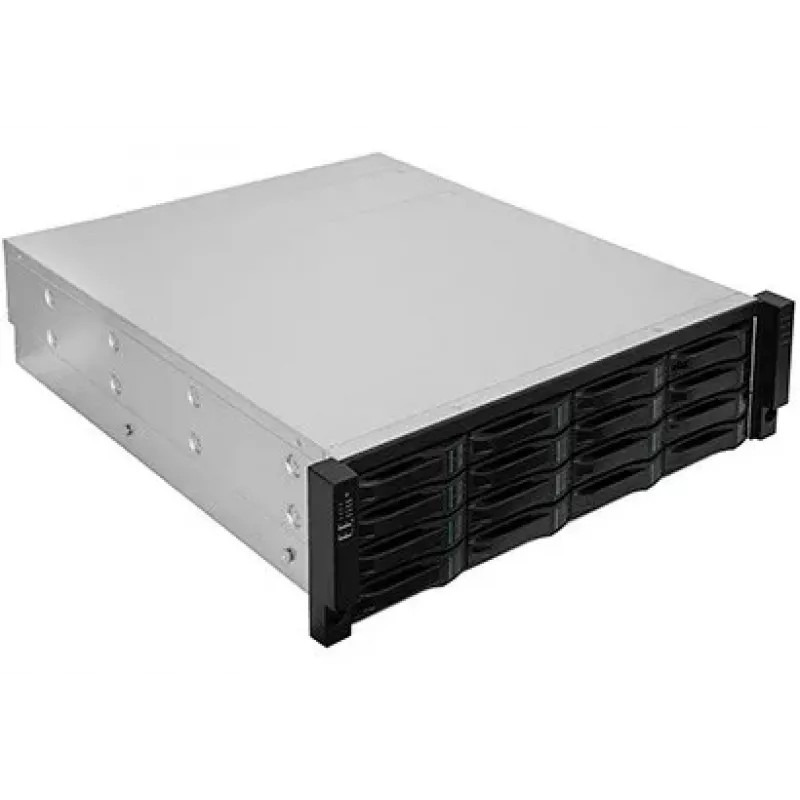

IP rekordér TC-R31680 SPEC:E/B/R/N/V4.0

The TC-R31680 is a high-performance 16-channel IP network video recorder supporting up to 8MP (4K) resolution. With H.265/H.264 compression, it offers efficient storage and bandwidth utilization. Ideal for medium to large surveillance systems, it provides advanced analytics including tripwire, perimeter detection, and face detection.

Advantages

Supports up to 20TB total storage (2x 10TB HDD), 160 Mbps incoming bandwidth, and 4K HDMI output. Smart analytics reduce false alarms and enhance security monitoring.

Suitable for

• Retail stores
• Office buildings
• Warehouses
• Educational campuses

Key specifications

• 16 IP channels, up to 8MP resolution
• H.265/H.264 compression
• 2 SATA HDD bays, up to 10TB each
• 1x HDMI (4K), 1x VGA (1080p)
• 1x RJ45 Gigabit Ethernet
• 4 alarm inputs, 1 alarm output
• DC12V power supply, ≤10W consumption
• Operating temperature: -10°C to +55°C

Recommendations

Pair with compatible IP cameras and use high-capacity HDDs for extended recording. Ensure proper ventilation for optimal performance.
